Product Description

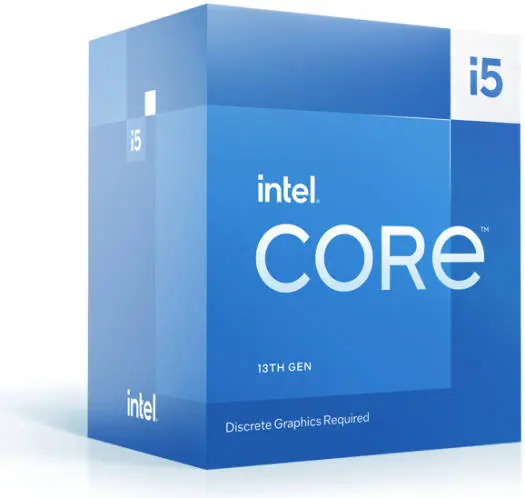

Intel Core i5-13400 13th Gen Raptor Lake Desktop Processor | BX8071513400
Power your productivity, creativity, and gaming with the Intel Core i5-13400, a 13th Generation Raptor Lake processor designed to deliver exceptional performance for modern workloads. Featuring 10 cores (6 Performance-cores + 4 Efficient-cores) and 16 threads, it’s built to handle everything from heavy multitasking to immersive gaming with ease.
With Intel’s Hybrid Core Architecture and Thread Director, the processor intelligently distributes workloads across cores, maximizing performance and efficiency. The Intel UHD Graphics 730 ensures smooth visuals for everyday computing and media tasks without requiring a dedicated GPU.
 Key Features
10 Cores (6 Performance + 4 Efficient) / 16 Threads
Base Frequency: 2.5 GHz (P-Core), 1.8 GHz (E-Core)
Max Turbo Frequency: Up to 4.6 GHz
30 MB Intel Smart Cache (20 MB L3 + 9.5 MB L2)
Integrated Intel UHD Graphics 730
Supports DDR5-4800 / DDR4-3200 Memory
PCIe 5.0 Ready (20 Lanes)
Intel 7 Process Technology (Raptor Lake Architecture)
Processor Base Power: 65W
Maximum Turbo Power: 148W
Heatsink & Fan Included
Windows 11 Supported
 Specifications
| Category | Details |
| Processor Model | Intel Core i5-13400 (13th Gen Raptor Lake) |
| Socket Type | LGA 1700 |
| Architecture | Hybrid (6 Performance Cores + 4 Efficient Cores) |
| Cores / Threads | 10 Cores / 16 Threads |
| Base Clock (P-Cores) | 2.5 GHz |
| Base Clock (E-Cores) | 1.8 GHz |
| Max Turbo (P-Cores) | Up to 4.6 GHz |
| Max Turbo (E-Cores) | Up to 3.3 GHz |
| Cache Memory | 30 MB (20 MB L3 + 9.5 MB L2) |
| Processor Base Power (TDP) | 65 W |
| Maximum Turbo Power | 148 W |
| Unlocked Multiplier | No |
| Lithography | Intel 7 (10nm Enhanced SuperFin) |
| Integrated Graphics | Intel UHD Graphics 730 |
| Graphics Base / Max Frequency | 300 MHz / 1.45 GHz |
| Max Resolution (HDMI) | 4K @ 60Hz |
| Max Resolution (DP) | 8K @ 60Hz |
| Max Number of Displays | 4 |
| Memory Support | DDR5 up to 4800 MT/s / DDR4 up to 3200 MT/s |
| Max Memory Capacity | 128 GB |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| PCI Express Revision | PCIe 5.0 & 4.0 |
| Max PCIe Lanes | 20 |
| Optane Memory Support | Yes |
| Cooling Solution | Heatsink and Fan Included |
| Max Operating Temperature (Tjmax) | 100°C |
| Operating System Support | Windows 11, Windows 10, Linux |
