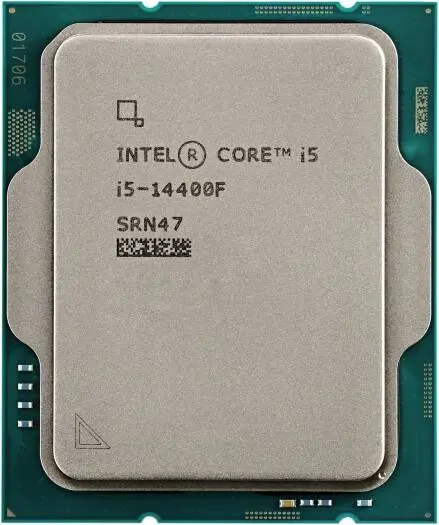

Intel® Core™ i5-14400F 14th Gen Desktop Processor (Tray Version)

10 Cores (6 Performance + 4 Efficient) | 16 Threads | Up to 4.7 GHz Turbo | LGA 1700 Socket | DDR5-4800 / DDR4-3200 Memory | PCIe 5.0 Support

Elevate your computing performance with the Intel® Core™ i5-14400F, a 14th-generation processor built on Intel’s advanced Intel 7 process. Designed for the LGA 1700 socket, this 10-core, 16-thread CPU combines 6 Performance-cores (P-cores) for speed-critical tasks and 4 Efficient-cores (E-cores) for multitasking efficiency — ideal for gaming, productivity, and everyday workloads.

With clock speeds up to 4.7 GHz and support for PCIe 5.0 plus DDR5-4800 / DDR4-3200 memory, the i5-14400F delivers modern hybrid performance at excellent value.

 Key Features

• 10 Cores (6 P-cores + 4 E-cores) / 16 Threads

• Base Clock: 2.5 GHz (P-cores) | 1.8 GHz (E-cores)

• Max Turbo Boost: Up to 4.7 GHz (P-cores) | 3.5 GHz (E-cores)

• 20 MB Intel® Smart Cache

• Dual-Channel DDR5-4800 / DDR4-3200 Memory Support

• 192 GB Max Memory Capacity

• PCIe 5.0 & 4.0 Support (Up to 20 Lanes)

• 65 W TDP (Base) | 100 °C Max Temp

• Intel Hybrid Core Architecture with Thread Director

• Unlocked for Overclocking: No

• Integrated Graphics: None (F-series CPU requires dedicated GPU)**

 Hybrid Core Architecture

The 14th Gen Raptor Lake Refresh architecture optimizes performance and power efficiency through a hybrid design:

• Performance-cores (P-cores) deliver high single-thread speeds for demanding tasks like gaming and design software.

• Efficient-cores (E-cores) handle background or parallel workloads for smoother multitasking.

Intel® Thread Director intelligently distributes workloads between core types in real time for optimal performance and responsiveness.

 Gaming & Creation Ready

The i5-14400F provides high frame rates and snappy responsiveness across popular games when paired with a discrete GPU. Its combination of fast cores, high bandwidth memory, and PCIe 5.0 connectivity enables creators and streamers to manage editing, rendering, and streaming simultaneously with minimal lag.

 Memory & Connectivity

• Memory Types: DDR5 up to 4800 MT/s | DDR4 up to 3200 MT/s

• Memory Channels: 2 (Dual Channel)

• Max Memory: 192 GB

• Max Bandwidth: 89.6 GB/s

• PCIe Version: 5.0 / 4.0 (20 Lanes Total)

• DMI Revision: 4.0 @ 16 GT/s

This configuration ensures high-speed data throughput between CPU, GPU, and storage devices — perfect for future-ready builds.

 Security & Performance Technologies

The Core i5-14400F integrates Intel’s latest performance and protection features:

• Intel® Turbo Boost Technology 2.0

• Intel® Deep Learning Boost (DL Boost)

• Intel® Gaussian & Neural Accelerator 3.0 (GNA 3.0)

• Intel® Hyper-Threading Technology

• Intel® Speed Shift / Speed Step Technologies

• Intel® Virtualization (VT-x, VT-d, EPT)

• Intel® Control-Flow Enforcement Technology (CET)

• Intel® Secure Key & Boot Guard

• Execute Disable Bit and OS Guard

Specifications
