Product Description

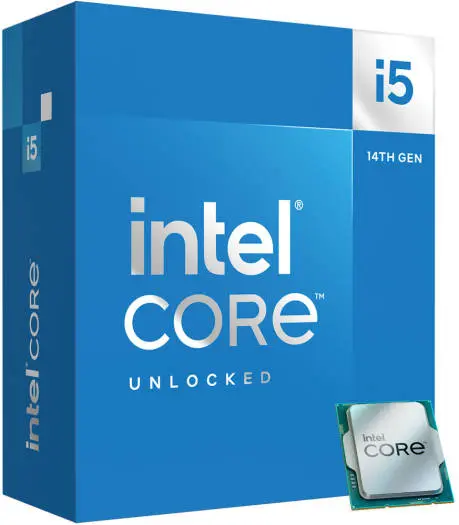

Intel Core i5-14600K 14th Gen Raptor Lake Refresh Desktop Processor | BX8071514600KSRN43
The Intel Core i5-14600K is a 14th Generation (Raptor Lake-S Refresh) desktop processor designed for gamers, creators, and power users who demand top-tier performance and efficiency. Built on Intel’s advanced “Intel 7” process technology, it features a Hybrid Core Architecture with 6 Performance-cores (P-cores) and 8 Efficient-cores (E-cores), delivering a total of 14 cores and 20 threads.
With a base clock speed of 3.5 GHz and a maximum turbo frequency up to 5.3 GHz, this processor provides incredible responsiveness and speed for demanding gaming, creative workloads, and multitasking environments. It also supports DDR5-5600 / DDR4-3200 memory, PCIe 5.0, and features Intel UHD 770 Graphics for powerful integrated visual performance.
The i5-14600K is unlocked for overclocking, allowing users to push performance further when paired with an adequate cooling solution.
Key Features
14 Cores (6P + 8E) / 20 Threads
Base Clock: 3.5 GHz (P-Core) / 2.6 GHz (E-Core)
Max Turbo Frequency: Up to 5.3 GHz
24MB Intel Smart Cache + 20MB L2 Cache
Unlocked Multiplier for Overclocking
Intel UHD 770 Graphics (Xe Architecture)
Supports DDR5-5600 / DDR4-3200 Memory (Dual-Channel)
PCI Express 5.0 & 4.0 Support (20 Lanes Total)
LGA 1700 Socket (Compatible with Intel 600 & 700 Series Chipsets)
125W Base Power / 181W Max Turbo Power
Intel Thread Director for Dynamic Workload Management
No Cooler Included – Requires Separate Thermal Solution
Specifications
| Category | Details |
| Processor Model | Intel Core i5-14600K |
| Generation | 14th Gen (Raptor Lake-S Refresh) |
| Socket Type | LGA 1700 |
| Manufacturing Process | Intel 7 (10nm) |
| Total Cores / Threads | 14 (6 Performance + 8 Efficient) / 20 Threads |
| Base Frequency (P-Cores) | 3.5 GHz |
| Base Frequency (E-Cores) | 2.6 GHz |
| Max Turbo Frequency (P-Cores) | 5.3 GHz |
| Max Turbo Frequency (E-Cores) | 4.0 GHz |
| Cache Memory | 24MB Intel Smart Cache |
| Total L2 Cache | 20MB |
| Base Power (TDP) | 125W |
| Maximum Turbo Power | 181W |
| Unlocked for Overclocking | Yes |
| Integrated Graphics | Intel UHD 770 Graphics |
| Graphics Base / Max Frequency | 300 MHz / 1.55 GHz |
| Max Supported Displays | Up to 4 |
| Max Resolution (HDMI / DP / eDP) | 4K@60Hz / 8K@60Hz / 5K@120Hz |
| Memory Types Supported | DDR5-5600 / DDR4-3200 |
| Memory Capacity | Up to 192GB |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| PCI Express Revision | 5.0 & 4.0 |
| PCIe Lane Configuration | Up to 1x16+4 or 2x8+4 |
| Max PCIe Lanes | 20 |
| DMI Revision | 4.0 (8 Lanes) |
| Thermal Solution | Not Included |
| Tjunction (Max Temp) | 100°C |
| Package Dimensions | 45.0 mm x 37.5 mm |
