Product Description

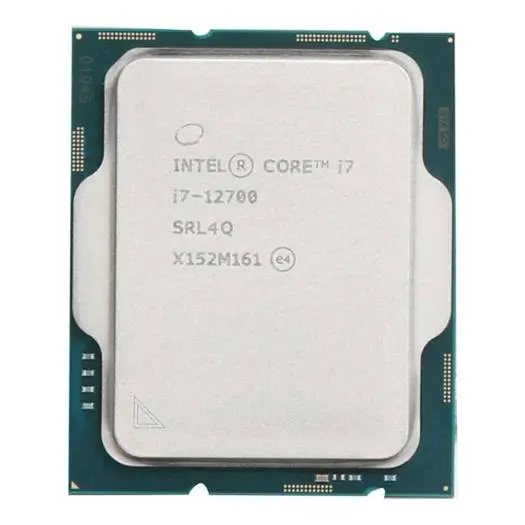

Intel Core i7-12700 12-Core Alder Lake Desktop Processor | i7-12700 Tray
The Intel Core i7-12700 processor is a high-performance 12th Generation Alder Lake CPU designed to handle demanding workloads, immersive gaming, and advanced multitasking with remarkable efficiency. Featuring Intel’s groundbreaking hybrid architecture, it combines Performance-cores (P-cores) for speed and Efficient-cores (E-cores) for optimized multitasking — ensuring every task runs smoothly.
With a base clock speed of 2.1 GHz and up to 4.9 GHz Max Turbo Boost, the i7-12700 offers exceptional responsiveness for gaming, streaming, and content creation. The processor supports both DDR5 and DDR4 memory, along with PCIe Gen 5 and Thunderbolt 4, future-proofing your system for next-gen performance.
⚙️ Key Features
12 Cores (8 Performance + 4 Efficient) / 20 Threads
Base Clock Speed: 2.1 GHz
4.9 GHz Maximum Turbo Frequency
25MB Intel Smart Cache
LGA 1700 Socket Compatibility
Hybrid Architecture (P-core + E-core)
Supports DDR5-4800 / DDR4-3200 Memory
PCIe 5.0 & PCIe 4.0 Support
Intel Thread Director for workload optimization
65W Processor Base Power
Thunderbolt™ 4 and Wi-Fi 6E (Gig+) Connectivity
Specifications
| Category | Details |
| Processor Model | Intel Core i7-12700 (12th Gen Alder Lake) |
| Socket Type | LGA 1700 |
| Architecture | Intel 7 (Alder Lake Hybrid Architecture) |
| Cores / Threads | 12 Cores (8 P-Cores + 4 E-Cores) / 20 Threads |
| Base Frequency | 2.1 GHz |
| Max Turbo Frequency | Up to 4.9 GHz |
| Cache Memory | 25 MB Intel Smart Cache |
| Bus Speed (DMI) | DMI 4.0 (16 GT/s) |
| Processor Base Power (TDP) | 65W |
| Maximum Turbo Power | 180W |
| Unlocked Multiplier | No |
| Lithography | Intel 7 (10nm Enhanced SuperFin) |
| Memory Type Support | DDR5-4800 / DDR4-3200 |
| Memory Channels | 2 (Dual Channel) |
| Max Memory Capacity | 128 GB |
| ECC Memory Support | No |
| PCI Express Support | PCIe 5.0 & PCIe 4.0 |
| Max PCIe Lanes | 20 |
| Integrated Graphics | Intel UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.5 GHz |
| Max Resolution (HDMI) | 4096x2160 @60Hz |
| Max Resolution (DP) | 7680x4320 @60Hz |
| DirectX / OpenGL Support | DirectX 12, OpenGL 4.5 |
| AI & Deep Learning Boost | Intel Deep Learning Boost (VNNI) |
| Virtualization Technologies | Intel VT-x, VT-d, EPT |
| Security Features | Intel AES-NI, Secure Key, Boot Guard, OS Guard, Control-Flow Enforcement |
| Connectivity | Thunderbolt 4, Intel Killer Wi-Fi 6/6E (Gig+) |
| Optane Memory Support | Yes |
| Launch Status | Launched (Q4’21) |
| Form Factor | Tray (No Cooler Included) |
