Product Description

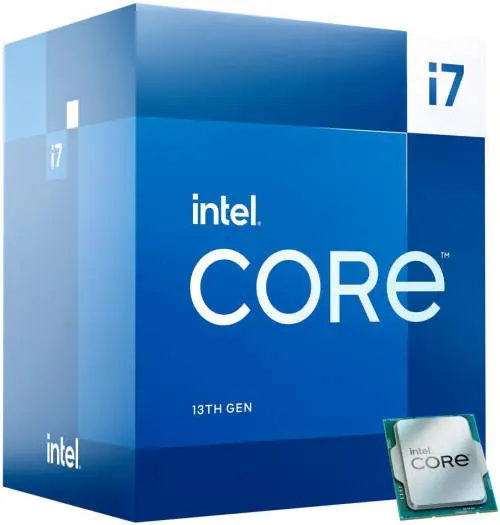

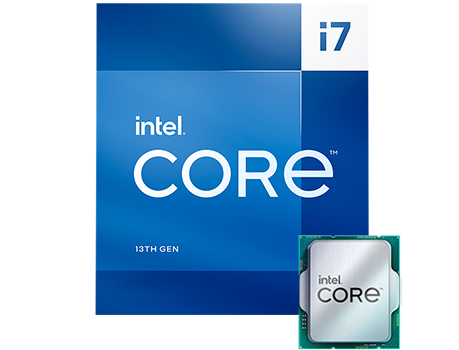

Intel Core i7-13700 13th Gen Raptor Lake Desktop Processor | BX8071513700
Experience next-level computing power with the Intel Core i7-13700, a 13th Generation Raptor Lake desktop processor engineered for performance, efficiency, and versatility. Whether you're a gamer, content creator, or professional user, this processor delivers cutting-edge speed and multitasking capabilities with its advanced Hybrid Core Architecture that intelligently balances workloads between performance and efficiency cores.
️ Key Features
16 Cores (8 Performance + 8 Efficient)
24 Threads (16 on P-Cores, 8 on E-Cores)
Base Clock: 2.1 GHz (P-Cores) / 1.5 GHz (E-Cores)
Max Turbo Boost: Up to 5.2 GHz (P-Cores) / Up to 4.1 GHz (E-Cores)
30MB Intel Smart Cache (L3)
24MB L2 Cache
Supports DDR5-5600 / DDR4-3200 Memory
Integrated Intel UHD Graphics 770
Intel Thread Director for Smart Workload Management
65W Base Power / 219W Max Turbo Power
PCIe 5.0 and PCIe 4.0 Support
LGA 1700 Socket – Compatible with 600 & 700 Series Motherboards
Includes Heatsink and Fan (Thermal Solution)
Performance Overview
Next-Level Hybrid Architecture
The Raptor Lake architecture features a blend of:
8 Performance-cores (P-cores): Delivering maximum speed for demanding tasks like gaming and design software.
8 Efficient-cores (E-cores): Managing background and parallel workloads with optimized power consumption.
Together, they provide exceptional multitasking power and responsiveness for modern computing needs.
Intel Thread Director
Built into the CPU’s cores, the Intel Thread Director intelligently allocates tasks to the right core at the right time, ensuring smoother gameplay and optimized multitasking — perfect for creators and gamers alike.
PCIe 5.0 + DDR5 Support
Stay ready for the future with PCIe 5.0 and DDR5 memory support for faster bandwidth, lower latency, and enhanced overall performance. Backward compatibility with DDR4 memory adds flexibility for system builds.
Integrated Intel UHD Graphics 770
Powered by the Intel Xe architecture, this GPU delivers smooth 4K playback, support for multiple displays, and fast 3D rendering — ideal for productivity and light gaming without a discrete GPU.
Designed for Gamers & Creators
The i7-13700 takes on intensive workflows, high-frame-rate gaming, and content creation simultaneously — thanks to up to 24 threads and 5.2 GHz turbo boost speeds.
Specifications
| Category | Details |
| Processor Model | Intel Core i7-13700 (13th Gen Raptor Lake) |
| Socket Type | LGA 1700 |
| Architecture | Intel 7 Process / Raptor Lake Hybrid Core |
| Cores / Threads | 16 Cores (8P + 8E) / 24 Threads |
| Base Clock (P-Cores) | 2.1 GHz |
| Base Clock (E-Cores) | 1.5 GHz |
| Max Turbo (P-Cores) | Up to 5.2 GHz |
| Max Turbo (E-Cores) | Up to 4.1 GHz |
| Intel Turbo Boost Max 3.0 Frequency | 5.2 GHz |
| L2 Cache | 24 MB |
| L3 Cache | 30 MB Intel Smart Cache |
| Memory Support | DDR5-5600 / DDR4-3200 |
| Max Memory Capacity | 128 GB |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| PCIe Support | PCIe 5.0 (16 lanes) + PCIe 4.0 (4 lanes) |
| Total PCIe Lanes | 20 |
| Integrated Graphics | Intel UHD Graphics 770 |
| Graphics Base / Max Frequency | 300 MHz / 1.5 GHz |
| Supported Resolution | 8K (7680×4320) @ 60Hz or up to 4× 4K Displays |
| DirectX / OpenGL Support | DirectX 12, OpenGL 4.5 |
| Base Power (TDP) | 65W |
| Maximum Turbo Power | 219W |
| Cooling Solution | Heatsink and Fan Included |
| Virtualization Technologies | Intel VT-x, VT-d, EPT |
| Security Features | AES-NI, OS Guard, Control-Flow Enforcement, Boot Guard |
| Compatibility | 600 / 700 Series Motherboards |
| Operating System Support | Windows 11 / Windows 10 64-bit |
| Launch Status | Launched – 13th Generation Raptor Lake |
