Product Description

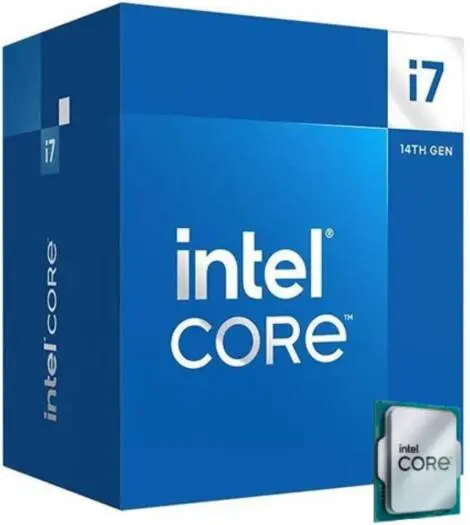

Intel Core i7-14700 14th Gen Raptor Lake-S Refresh Desktop Processor | BX8071514700SRN40
Experience next-generation performance with the Intel Core i7-14700, a powerhouse 14th Gen desktop processor designed to deliver exceptional speed, multitasking efficiency, and intelligent workload management. Equipped with 20 cores, 28 threads, and a blazing 5.4 GHz Max Turbo frequency, this CPU is built for creators, gamers, and professionals who demand elite computing performance.
️ Key Features
20 Cores (8 Performance + 12 Efficient)
28 Threads for Superior Multitasking
Base Clock: 2.1 GHz (P-Cores) / 1.5 GHz (E-Cores)
Max Turbo Boost Frequency: Up to 5.4 GHz
Cache: 33 MB Intel® Smart Cache + 28 MB L2 Cache
Socket: LGA 1700 (Compatible with Intel 600 & 700 Series Chipsets)
Memory Support: Dual-Channel DDR5-5600 / DDR4-3200
Integrated Intel UHD Graphics 770
Processor Base Power: 65W | Max Turbo Power: 219W
Unlocked: ❌ No (Non-K Variant)
Included Cooler: Laminar RM1
Windows 11 Supported
Performance Overview
Hybrid Core Architecture
The Intel 7 process technology and hybrid architecture integrate Performance-cores (P-Cores) and Efficient-cores (E-Cores) for optimized performance:
P-Cores: Deliver raw speed for intensive workloads like gaming, rendering, and productivity tasks.
E-Cores: Efficiently manage background and multi-threaded workloads for seamless multitasking.
Intel Thread Director
Embedded AI-based management dynamically assigns workloads to the right cores—ensuring the perfect balance between performance and power efficiency, even under heavy multitasking.
Integrated Intel UHD Graphics 770
Powered by Intel Xe architecture, the integrated graphics provide smooth visuals and 4K/8K display support—perfect for creators and users without discrete GPUs.
PCIe 5.0 & DDR5 Support
Take advantage of cutting-edge connectivity with:
PCIe 5.0 for next-generation GPUs and storage.
DDR5-5600 support for higher bandwidth and faster responsiveness.
AI & Acceleration Technologies
Intel Deep Learning Boost (DL Boost) for AI inference acceleration.
Intel Gaussian & Neural Accelerator (GNA) 3.0 for noise suppression and visual clarity.
Specifications
| Category | Details |
| Processor Model | Intel Core i7-14700 (14th Gen Raptor Lake-S Refresh) |
| Socket Type | LGA 1700 |
| Lithography | Intel 7 |
| Architecture | Hybrid (P-Cores + E-Cores) |
| Total Cores | 20 (8P + 12E) |
| Total Threads | 28 |
| Base Clock (P-Cores) | 2.1 GHz |
| Base Clock (E-Cores) | 1.5 GHz |
| Max Turbo Frequency | 5.4 GHz |
| Turbo Boost Max 3.0 Frequency | 5.4 GHz |
| Cache (L3) | 33 MB Intel Smart Cache |
| Cache (L2) | 28 MB |
| Memory Support | DDR5 up to 5600 MHz / DDR4 up to 3200 MHz |
| Max Memory Capacity | 192 GB |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| PCI Express Support | PCIe 5.0 / 4.0 |
| Total PCIe Lanes | 20 |
| Integrated Graphics | Intel UHD Graphics 770 |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Dynamic Frequency | 1.6 GHz |
| Max Resolution (HDMI) | 4096×2160 @ 60Hz |
| Max Resolution (DP) | 7680×4320 @ 60Hz |
| Max Resolution (eDP) | 5120×3200 @ 120Hz |
| Supported APIs | DirectX 12, OpenGL 4.5, OpenCL 3.0 |
| Displays Supported | Up to 4 |
| Thermal Design Power (TDP) | 65 W |
| Max Turbo Power | 219 W |
| Cooling Solution | Laminar RM1 Cooler (Included) |
| TJUNCTION (Max Temp) | 100°C |
| Virtualization Support | Intel VT-x, VT-d, EPT |
| Security Features | AES-NI, Boot Guard, OS Guard, Control Flow Enforcement (CET), Trusted Execution, Secure Key |
| Performance Technologies | Turbo Boost 2.0 / 3.0, Thread Director, Hyper-Threading, Speed Shift, Deep Learning Boost |
| Chipset Compatibility | Intel 600 / 700 Series |
| Launch Date | Q1 2024 |
| Marketing Status | Launched |
