Product Description

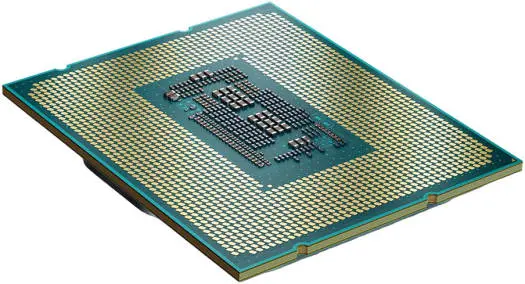

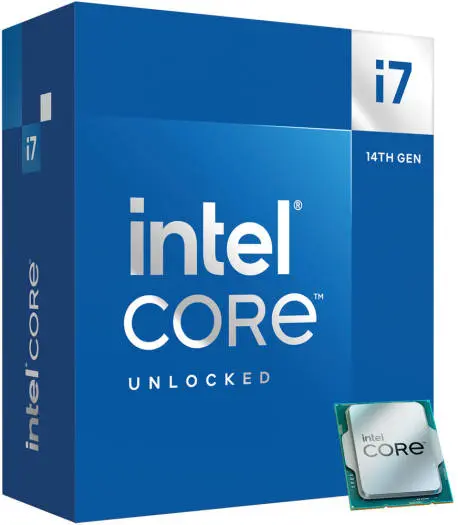

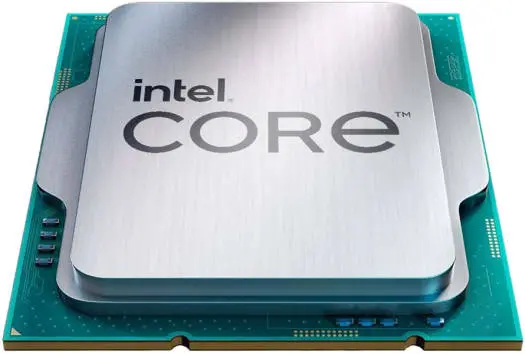

Intel Core i7-14700K 3.4 GHz 20-Core LGA 1700 Processor
Power up your productivity, gaming, and content creation with the Intel® Core™ i7-14700K 3.4 GHz 20-Core LGA 1700 14th Gen Processor.
Built with the Intel 7 process, this 14th-generation desktop CPU delivers outstanding efficiency and performance with a total of 20 cores and 28 threads. Featuring an optimized Hybrid Core Architecture, it combines 8 Performance-cores (P-cores) for high-intensity workloads and 12 Efficient-cores (E-cores) for background and multi-threaded tasks — working seamlessly through Intel Thread Director to ensure each workload runs on the right core at the right time.
With up to 5.6 GHz Turbo Boost Max 3.0 frequency and 30 MB Smart Cache, the i7-14700K is designed to handle demanding games, complex creative tasks, and heavy multitasking with ease.
It also supports PCI Express 5.0 and dual-channel DDR5-5600 MHz memory, delivering lightning-fast data throughput for next-gen GPUs and storage.
The integrated Intel UHD 770 Graphics offers smooth 4K and even 8K visual experiences for work or play.
Engineered for enthusiasts, this unlocked processor lets you overclock for maximum performance.
Specifications
| Category | Specification |
| Processor Model | Intel® Core™ i7-14700K |
| Generation | 14th Gen (Raptor Lake-S Refresh) |
| Socket Type | LGA 1700 |
| Architecture | Hybrid (8 P-Cores + 12 E-Cores) |
| Total Cores / Threads | 20 Cores / 28 Threads |
| Base Clock (P/E Cores) | 3.4 GHz / 2.5 GHz |
| Max Turbo Frequency | Up to 5.6 GHz |
| P-Core Max Turbo | 5.5 GHz |
| E-Core Max Turbo | 4.3 GHz |
| Cache (Smart + L2) | 33 MB Smart Cache + 28 MB L2 |
| Processor Base Power (TDP) | 125 W |
| Maximum Turbo Power | 253 W |
| Unlocked for Overclocking | Yes |
| Integrated GPU | Intel® UHD Graphics 770 |
| Graphics Base / Max Frequency | 300 MHz / 1.6 GHz |
| Execution Units | 32 |
| Max Resolution (HDMI / DP / eDP) | 4K @ 60 Hz / 8K @ 60 Hz / 5K @ 120 Hz |
| Graphics Technologies | Intel® Quick Sync Video, Clear Video HD |
| DirectX / OpenGL / OpenCL | 12 / 4.5 / 3.0 |
| Max Displays Supported | 4 |
| Memory Type | DDR5 / DDR4 |
| Max Memory Size | 192 GB |
| Max Memory Speed | DDR5-5600 / DDR4-3200 |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| Max Memory Bandwidth | 89.6 GB/s |
| PCI Express Revision | PCIe 5.0 & 4.0 |
| Max PCIe Lanes | 20 |
| DMI Revision / Lanes | DMI 4.0 / 8 Lanes |
| Scalability | 1S Only |
| Package Size | 45 mm × 37.5 mm |
| Max Operating Temperature (Tjunction) | 100 °C |
| Thermal Solution Included | Not Included |
| Lithography | Intel 7 Process |
| Launch Date | Q4 2023 |
| Advanced Features | Intel® Thread Director, Deep Learning Boost, Speed Shift, Turbo Boost 2.0 / 3.0 |
| AI & Acceleration | Gaussian & Neural Accelerator 3.0 |
| Virtualization | Intel® VT-x, VT-d, VT-x with EPT |
| Security Technologies | Control-Flow Enforcement, AES-NI, Secure Key, OS Guard, Boot Guard, MBEC |
| vPro Support | Intel® Standard Manageability (ISM) |
| Product Code | BX8071514700KSRN3X |
