Product Description

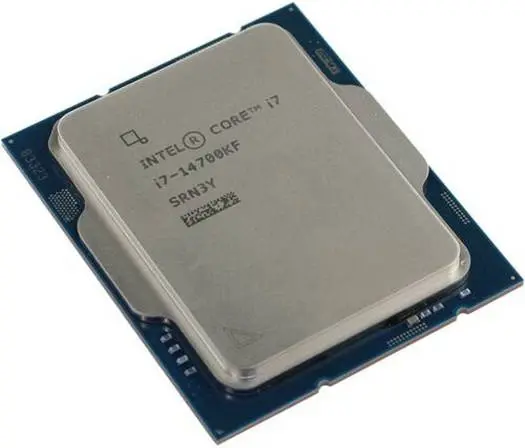

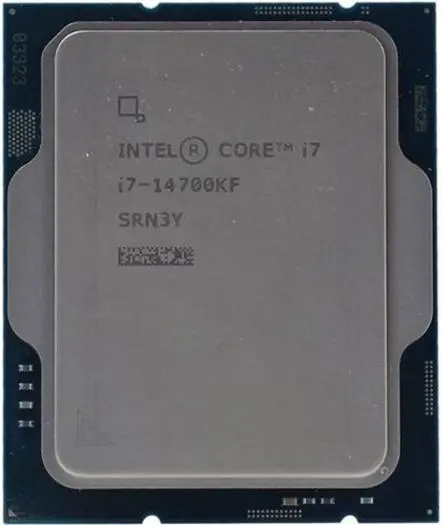

Intel® Core™ i7-14700KF 14th Gen Desktop Processor (Tray Version)
20 Cores (8 Performance + 12 Efficient) | 28 Threads | Up to 5.6 GHz Turbo | LGA 1700 Socket | DDR5-5600 / DDR4-3200 | PCIe 5.0 Support | Unlocked for Overclocking
Experience elite multitasking, gaming, and creative performance with the Intel® Core™ i7-14700KF, part of Intel’s powerful 14th Generation Raptor Lake Refresh lineup. Built with the Intel 7 process and designed for the LGA 1700 socket, this 20-core, 28-thread processor combines 8 high-speed Performance-cores (P-cores) and 12 energy-efficient Efficient-cores (E-cores).
The result? Blazing-fast single-threaded performance for demanding workloads, along with unmatched efficiency for multitasking, streaming, and content creation.
Since this is a KF-series processor, it comes unlocked for overclocking and requires a discrete graphics card (no integrated GPU).
 Key Features
20 Cores (8 P-cores + 12 E-cores) / 28 Threads
Base Clock: 3.4 GHz (P-cores) / 2.5 GHz (E-cores)
Max Turbo Boost: Up to 5.6 GHz (P-cores) / 4.3 GHz (E-cores)
30MB Intel® Smart Cache + 28MB L2 Cache
192GB Max DDR5 / DDR4 Memory Support
Unlocked Multiplier for Overclocking
PCIe 5.0 & 4.0 Support (Up to 20 Lanes)
Dual-Channel DDR5-5600 / DDR4-3200
Thermal Design Power: 125W (Base) / 253W (Turbo)
LGA 1700 Socket Compatibility
Hybrid Core Architecture with Intel® Thread Director
 Hybrid Core Architecture
The i7-14700KF features Intel’s advanced Hybrid Core Architecture, combining performance and efficiency cores to intelligently handle different workloads:
Performance-cores (P-cores) handle the most demanding applications and games for maximum frame rates and responsiveness.
Efficient-cores (E-cores) take care of background or secondary tasks, maintaining smooth system performance.
With Intel® Thread Director, the CPU intelligently manages task distribution across cores in real-time, ensuring optimal power and speed balance.
 Elite Gaming and Productivity
The i7-14700KF brings higher boost speeds and more E-cores than its predecessor, the i7-13700KF, offering up to 20% better multi-threaded performance and smoother frame delivery in modern titles. Combined with DDR5 memory and PCIe 5.0 bandwidth, gamers and creators enjoy reduced latency and faster data throughput — perfect for high-end GPUs and NVMe Gen 5 SSDs.
 Advanced Memory & Connectivity
Memory Types: DDR5 up to 5600 MT/s | DDR4 up to 3200 MT/s
Max Capacity: 192 GB
Memory Channels: 2 (Dual Channel)
Max Bandwidth: 89.6 GB/s
PCIe Version: 5.0 & 4.0 (Up to 20 Lanes)
DMI Revision: 4.0 (8 Lanes @ 16 GT/s)
This ensures ultra-fast communication between CPU, GPU, and storage — ideal for next-generation performance builds.
 AI, Security & Performance Technologies
The Intel® Core™ i7-14700KF integrates several advanced technologies for accelerated performance, AI processing, and robust security:
Intel® Deep Learning Boost (DL Boost) – Speeds up AI workloads.
Intel® Gaussian & Neural Accelerator 3.0 (GNA 3.0) – Enhances video conferencing with noise reduction and background blur.
Intel® Turbo Boost Max 3.0 / Turbo Boost 2.0 / Thermal Velocity Boost – Dynamic frequency optimization for maximum responsiveness.
Intel® Speed Shift & Speed Step Technologies – Adaptive power efficiency.
Intel® Virtualization (VT-x, VT-d, EPT) – For running virtual machines efficiently.
Security Suite: Control-Flow Enforcement, Boot Guard, Secure Key, AES-NI, OS Guard, and Execute Disable Bit.
Â
Specifications
Category | Details |
Product Collection | 14th Gen Intel® Core™ i7 Processors |
Codename | Raptor Lake-S Refresh |
Socket | LGA 1700 |
Cores / Threads | 20 Cores (8P + 12E) / 28 Threads |
Base Frequency | P-core: 3.4 GHz / E-core: 2.5 GHz |
Max Turbo | 5.6 GHz |
Cache | 33 MB Smart Cache + 28 MB L2 |
Max Memory | 192 GB DDR5 / DDR4 |
PCIe Support | 5.0 & 4.0 (20 Lanes) |
Graphics | None (KF model requires discrete GPU) |
Launch Date | Q4 2023 |
Model Number | CM8071504820722 (Tray) |
