Product Description

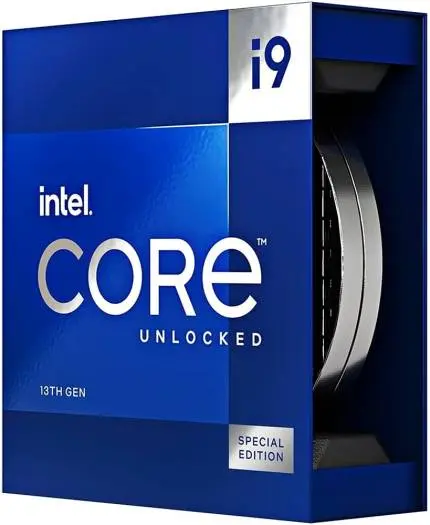

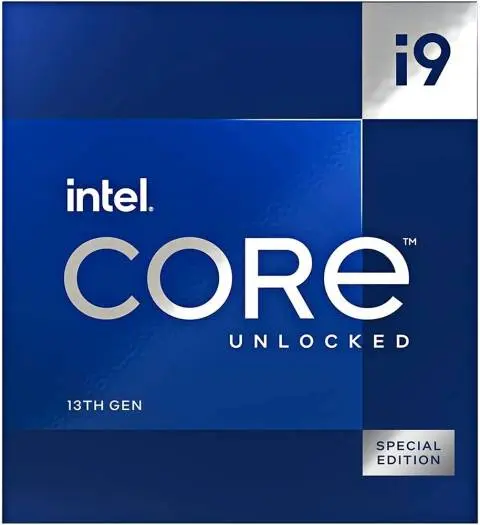

Intel Core i9-13900KS 13th Gen Raptor Lake Processor | BX8071513900KS
Experience the pinnacle of desktop performance with the Intel Core i9-13900KS 13th Gen Processor, built to deliver record-breaking power for gaming, creation, and high-demand multitasking.
This processor takes the acclaimed Raptor Lake hybrid architecture to the next level—featuring 24 cores (8 Performance-cores + 16 Efficient-cores) and 32 threads with a staggering 6.0 GHz Max Turbo Frequency, making it Intel’s fastest desktop CPU to date.
Built on the Intel 7 process, the Core i9-13900KS intelligently balances workload distribution using Intel Thread Director, ensuring optimal performance across all tasks.
Whether you’re gaming at ultra settings, rendering 8K content, or streaming, this processor handles it all with seamless precision.
Supporting PCIe 5.0, DDR5-5600, and Thunderbolt 4, it ensures future-proof compatibility with next-generation components and peripherals.
The Intel Thermal Velocity Boost and Adaptive Boost Technology dynamically raise frequencies beyond standard limits—perfect for competitive gamers, overclockers, and professionals demanding absolute performance.
Featuring Intel UHD Graphics 770 with Xe architecture, you can enjoy 8K output or run multiple 4K monitors, even without a discrete GPU.
 Key Features
24 Cores (8 P-cores + 16 E-cores), 32 Threads
3.2 GHz Base Frequency / Up to 6.0 GHz Max Turbo
Intel Thermal Velocity Boost & Adaptive Boost Technologies
36MB Intel Smart Cache + 32MB L2 Cache
Integrated Intel UHD 770 Graphics
Dual-Channel DDR5-5600 / DDR4-3200 Support
PCIe 5.0 & 4.0 Support (20 Total Lanes)
Intel Thread Director for Dynamic Core Optimization
Unlocked for Overclocking
13th Gen (Raptor Lake) – Built on Intel 7 Architecture
Supports Intel Killer Wi-Fi 6/6E & Thunderbolt 4
Compatible with Intel 600 and 700 Series Chipsets
|
|
|
 Specifications
| Specification | Details |
| Model | Intel Core i9-13900KS |
| Generation | 13th Gen (Raptor Lake) |
| Socket Type | LGA 1700 |
| Architecture | Hybrid (8 Performance + 16 Efficient Cores) |
| Cores / Threads | 24 Cores / 32 Threads |
| Base Clock Speed | P-Core: 3.2 GHz / E-Core: 2.4 GHz |
| Max Turbo Frequency | Up to 6.0 GHz (Thermal Velocity Boost) |
| P-Core Max Turbo | 5.8 GHz |
| E-Core Max Turbo | 4.3 GHz |
| L2 Cache | 32 MB |
| L3 Cache (Smart Cache) | 36 MB |
| Unlocked Multiplier | Yes |
| Integrated Graphics | Intel UHD Graphics 770 (Xe Architecture) |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Frequency | 1.65 GHz |
| Max Resolution (HDMI) | 4096×2160 @ 60Hz |
| Max Resolution (DP) | 7680×4320 @ 60Hz |
| Max Displays Supported | 4 |
| Memory Support | DDR5 up to 5600 MHz / DDR4 up to 3200 MHz |
| Memory Channels | Dual Channel |
| Max Memory Capacity | 128 GB |
| ECC Memory Support | Yes |
| PCI Express Support | PCIe 5.0 / 4.0 |
| PCIe Lanes | 20 Total |
| Optane Memory Support | Yes |
| Thermal Design Power (TDP) | 150 W |
| Maximum Turbo Power | ~253 W |
| Included Cooler | Not Included (Processor Only) |
| Max Operating Temperature (Tjunction) | 100°C |
| Process Technology | Intel 7 (10nm Enhanced SuperFin) |
| Overclocking Support | Yes |
| Performance Technologies | Intel Thread Director, Turbo Boost Max 3.0, Thermal Velocity Boost, Adaptive Boost, Deep Learning Boost, SpeedStep, SpeedShift |
| AI / Acceleration | Intel Deep Learning Boost, Gaussian & Neural Accelerator 3.0 |
| Virtualization Support | Intel VT-x, VT-d, EPT |
| Security Features | AES-NI, Boot Guard, Control-Flow Enforcement (CET), OS Guard, Secure Key, Software Guard Extensions (SGX), Trusted Execution, Execute Disable Bit |
| Motherboard Compatibility | Intel 600 & 700 Series |
| Operating System Support | Windows 11 / 10, Linux |
| Form Factor | Boxed Processor (No Cooler Included) |
