Product Description

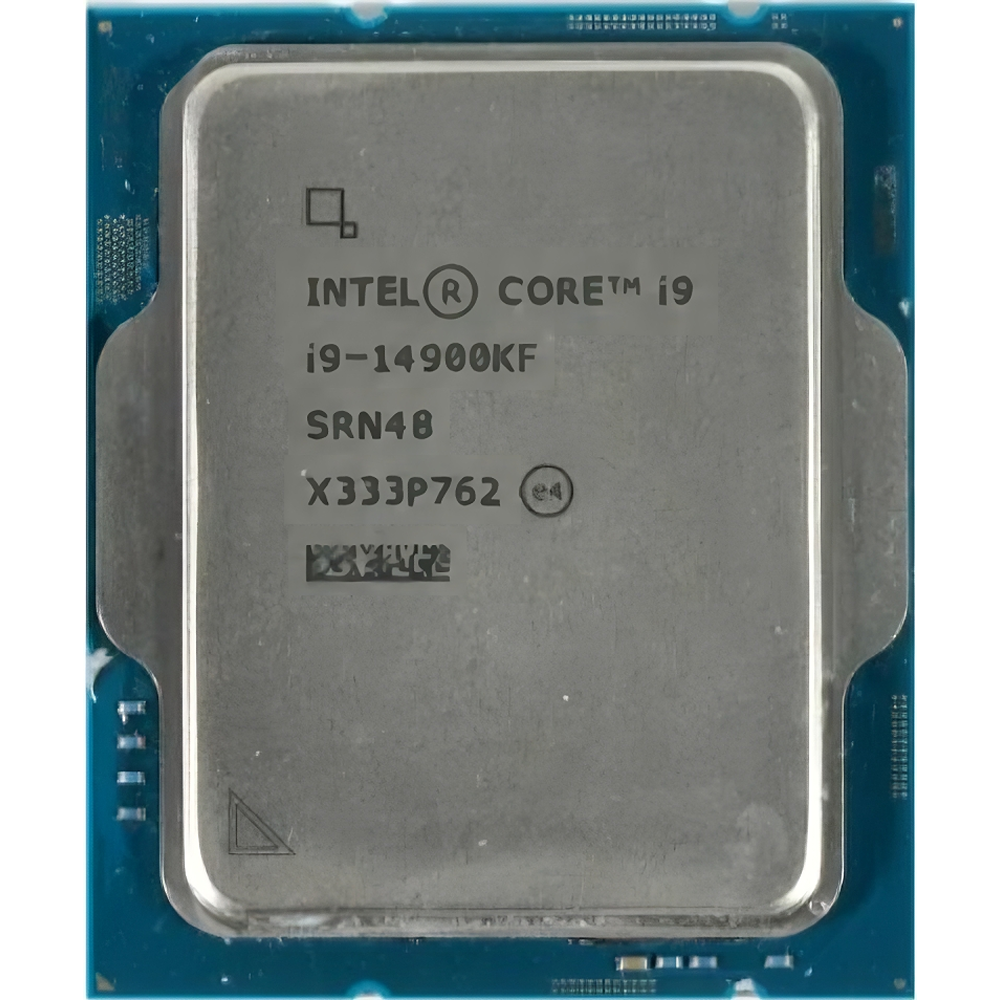

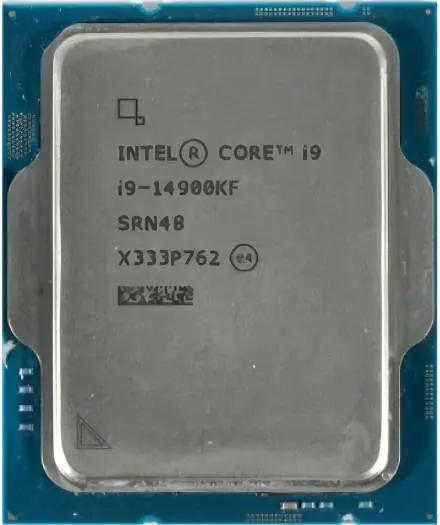

Intel 24 Core i9 14900KF Raptor Lake Refresh CPU/Processor
Unleash next-level power and speed with the Intel® Core™ i9-14900KF 3.2 GHz 24-Core 14th Gen Processor — a flagship CPU built for gamers, creators, and professionals who demand extreme performance.
Built using the advanced Intel 7 process, this 14th-generation “Raptor Lake Refresh” processor features a Hybrid Core Architecture with 8 Performance-cores (P-cores) and 16 Efficient-cores (E-cores), working seamlessly together through Intel Thread Director to balance heavy workloads and background tasks intelligently.
With a base clock of 3.2 GHz and an incredible 6.0 GHz Max Turbo Boost, it delivers exceptional responsiveness across gaming, content creation, and high-load multitasking. The 36 MB Smart Cache, 32 MB L2 Cache, and support for PCIe 5.0 and DDR5-5600 MHz memory ensure elite-tier bandwidth and data access.
Optimized for power users, the i9-14900KF is unlocked for overclocking, allowing enthusiasts to push performance even further.
(Note: No integrated graphics; a dedicated GPU is required.)
Specifications
| Category | Specification |
| Processor Model | Intel® Core™ i9-14900KF |
| Generation | 14th Gen (Raptor Lake-S Refresh) |
| Architecture | Hybrid (Core / Thread Director) |
| Socket Type | LGA 1700 |
| Total Cores / Threads | 24 Cores (8 P-Cores + 16 E-Cores) / 32 Threads |
| Base Clock (P/E Cores) | 3.2 GHz / 2.4 GHz |
| Max Turbo Frequency | Up to 6.0 GHz |
| P-Core Max Turbo | 5.6 GHz |
| E-Core Max Turbo | 4.4 GHz |
| Cache | 36 MB Intel® Smart Cache + 32 MB L2 Cache |
| Unlocked for Overclocking | Yes |
| Processor Base Power (TDP) | 125 W |
| Maximum Turbo Power | 253 W |
| Lithography | Intel 7 Process |
| Launch Date | Q4 2023 |
| Memory Type | DDR5 / DDR4 |
| Max Memory Size | 192 GB |
| Max Memory Speed | DDR5 5600 MHz / DDR4 3200 MHz |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| Max Memory Bandwidth | 89.6 GB/s |
| PCI Express Revision | PCIe 5.0 and 4.0 |
| Max PCIe Lanes | 20 Lanes (Up to 1×16 + 4 or 2×8 + 4) |
| DMI Revision / Lanes | DMI 4.0 / 8 Lanes |
| Scalability | 1S Only |
| Integrated Graphics | None (F-Series CPU requires discrete GPU) |
| Max Operating Temperature (Tjunction) | 100 °C |
| Thermal Solution Included | No – PCG 2020A Specification |
| Package Size | 45 mm × 37.5 mm |
| Advanced Technologies | Intel® Thermal Velocity Boost, Turbo Boost 2.0 / 3.0, Adaptive Boost, Speed Shift, Deep Learning Boost |
| AI & Acceleration | Intel® Gaussian & Neural Accelerator 3.0 |
| Virtualization | Intel® VT-x, VT-d, VT-x with EPT |
| Security Technologies | AES-NI, Control-Flow Enforcement, Secure Key, Boot Guard, MBEC, OS Guard |
| Use Conditions | PC / Client / Tablet / Workstation |
| Product Code | i9-14900KF Tray |
