Product Description

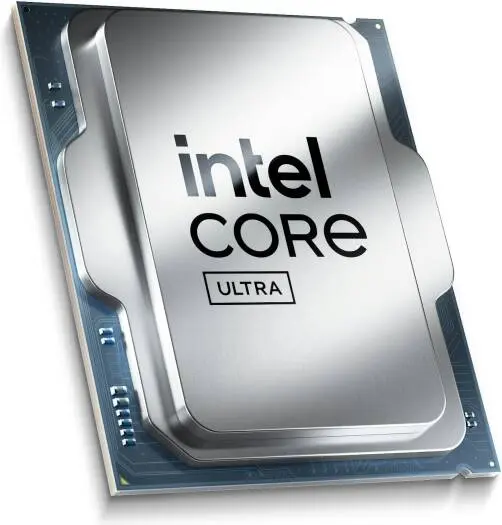

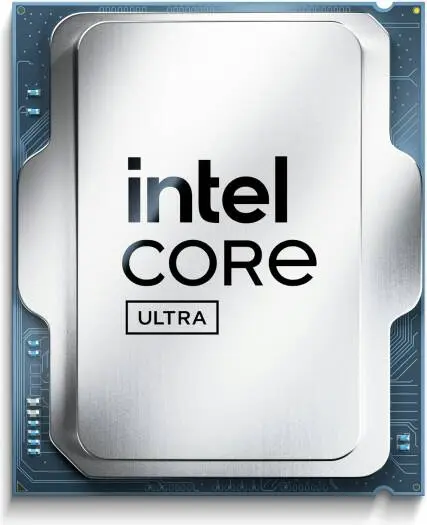

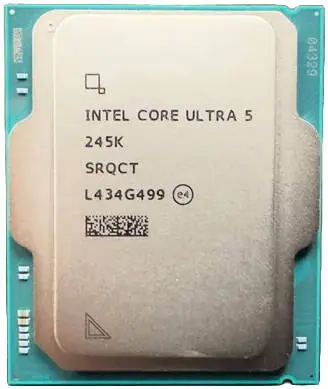

Intel Core Ultra 5 245K | 4.2 GHz | 14 Cores & 14 Threads | LGA 1851 | Tray
Performance Redefined for Gamers, Creators, and Innovators
Step into the next generation of computing power with the Intel Core Ultra 5 245K, part of Intel’s revolutionary Core Ultra Series 2 lineup based on the Arrow Lake architecture. This processor combines cutting-edge hybrid design, integrated AI acceleration, and enhanced connectivity — making it the ideal choice for gamers, creators, and professionals who demand both speed and intelligence.
With 14 cores (6 Performance + 8 Efficient) and 14 threads, the Core Ultra 5 245K reaches up to 5.2 GHz Max Turbo Frequency, ensuring smooth multitasking and high FPS gaming. Its Hybrid Core Architecture intelligently balances workloads — performance cores deliver raw power for demanding applications, while efficient cores handle background processes for optimized energy use.
The integrated Intel® Graphics and Intel® AI Boost NPU bring advanced performance for AI-driven tasks, creative applications, and productivity workflows. With support for DDR5-6400 memory, PCIe 5.0, Wi-Fi 7, Thunderbolt 4, and USB 4.0, this processor ensures blazing-fast data transfer and seamless connectivity for the future of computing.
Whether you’re gaming at ultra settings, editing 4K video, or developing AI-based applications, the Intel Core Ultra 5 245K delivers next-level efficiency, power, and responsiveness in one advanced platform.
Â
Â
Specifications
| Category | Specification |
| Product Name | Intel Core Ultra 5 245K |
| Architecture | Arrow Lake (Ultra Series 2) |
| Socket | LGA 1851 |
| Total Cores | 14 (6 Performance-cores + 8 Efficient-cores) |
| Total Threads | 14 |
| Base Clock Speed (P-cores) | 4.2 GHz |
| Base Clock Speed (E-cores) | 3.6 GHz |
| Max Turbo Frequency | 5.2 GHz |
| P-core Max Turbo | 5.2 GHz |
| E-core Max Turbo | 4.6 GHz |
| Cache (Smart Cache) | 24 MB |
| L2 Cache | 26 MB |
| Processor Base Power (TDP) | 125 W |
| Maximum Turbo Power | 159 W |
| Manufacturing Process | TSMC N3B |
| Launch Date | Q4’24 |
| Status | Launched |
| Embedded Options | No |
| Memory Support | DDR5-6400 MT/s |
| Max Memory Size | 192 GB |
| ECC Memory Support | Yes |
| Max Memory Channels | 2 |
| Graphics | Intel® Graphics |
| Graphics Base Frequency | 300 MHz |
| Graphics Max Frequency | 1.9 GHz |
| Xe-cores | 4 |
| Max Resolution (HDMI/DP/eDP) | 8K @ 60Hz / 4K @ 60Hz |
| DirectX / OpenGL / OpenCL Support | DirectX 12 / OpenGL 4.5 / OpenCL 3.0 |
| Displays Supported | 4 |
| NPU (AI Engine) | Intel® AI Boost |
| NPU Peak TOPS (Int8) | 13 |
| AI Frameworks Supported | OpenVINOâ„¢, WindowsML, DirectML, ONNX RT, WebNN |
| Thunderboltâ„¢ | Thunderboltâ„¢ 4 |
| PCI Express Revision | PCIe 5.0 & 4.0 |
| PCIe Configuration | Up to 1x16 + 2x4 / 2x8 + 2x4 / 1x8 + 4x4 |
| Max PCIe Lanes | 24 |
| Thermal Solution Specification | PCG 2020A |
| Max Operating Temperature | 105°C |
| Advanced Technologies | Intel® DL Boost, Intel® Thread Director, Intel® GNA 3.5, Intel® Speed Shift, Intel® Turbo Boost 2.0 |
| Instruction Set | 64-bit |
| Instruction Set Extensions | Intel® SSE4.1, SSE4.2, AVX2 |
| Security & Reliability | Intel® Control-Flow Enforcement, AES-NI, Secure Key, Trusted Execution, OS Guard, Boot Guard, MBEC |
| Virtualization Support | Intel® VT-x, VT-d, VT-x with EPT |
| Scalability | 1S Only |
