Product Description

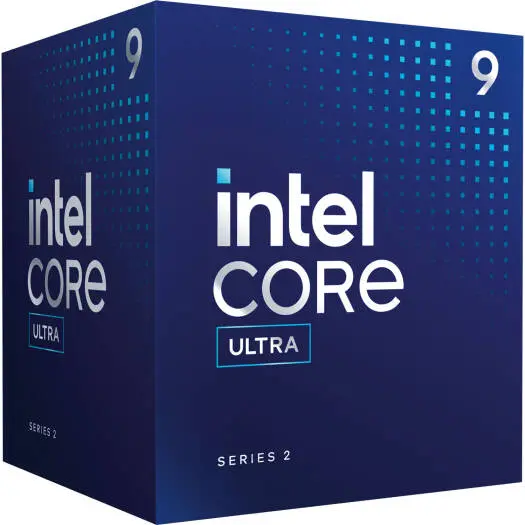

Intel Core Ultra 9 285 2.5 GHz 24-Core LGA 1851 Processor | BX80768285
Next-Generation Power. Smarter AI Performance.
Unleash cutting-edge performance with the Intel Core Ultra 9 285, a high-end desktop processor designed for creators, professionals, and gamers who demand power, precision, and intelligence. Built on the Arrow Lake architecture with an advanced TSMC N3B lithography, this 14th Gen Intel Core Ultra processor delivers superior energy efficiency, blazing-fast speeds, and AI acceleration like never before.
With 24 cores (8 Performance + 16 Efficient) and 24 threads, the Core Ultra 9 285 reaches up to 5.6 GHz using Intel® Thermal Velocity Boost for responsive multitasking and top-tier gaming. Its dedicated Intel® AI Boost NPU and Intel® Graphics architecture work seamlessly to accelerate creative, AI, and computational workloads — freeing up CPU and GPU resources for maximum productivity.
The processor supports up to 256GB DDR5-6400 memory, PCIe 5.0, Thunderbolt 4, and Wi-Fi 7-ready platforms, offering unmatched flexibility and bandwidth for high-end workstations and gaming setups. Designed for reliability, it also includes Intel vPro® Enterprise, AI-enhanced collaboration features, and multi-layer security technologies to keep performance stable and data safe.
The Intel Core Ultra 9 285 redefines what’s possible — combining elite computing power, AI optimization, and next-generation connectivity in one powerful platform.
Specifications
| Category | Specification |
| Processor Model | Intel Core Ultra 9 285 (Arrow Lake) |
| Socket Type | LGA 1851 |
| Architecture | Hybrid Core (8 P-Cores + 16 E-Cores) |
| Total Cores / Threads | 24 Cores / 24 Threads |
| Base Clock Speed | P-Core: 2.5 GHz / E-Core: 1.9 GHz |
| Max Turbo Frequency | Up to 5.6 GHz (Thermal Velocity Boost) |
| Cache (L3) | 36 MB Intel® Smart Cache |
| L2 Cache | 40 MB |
| Base Power (TDP) | 65 W |
| Max Turbo Power | 182 W |
| Unlocked for Overclocking | No |
| Lithography | TSMC N3B |
| Launch Date | Q1 2025 |
| Usage | Desktop / Workstation |
| Memory Type | DDR5 up to 6400 MT/s |
| Max Memory Capacity | 256 GB |
| Memory Channels | 2 (Dual Channel) |
| ECC Memory Support | Yes |
| Integrated Graphics | Intel® Graphics (Xe Architecture) |
| Graphics Base / Max Frequency | 300 MHz / 2 GHz |
| Graphics Xe-Cores | 4 |
| Max Resolution Support | HDMI: 8K @ 60Hz / DP: 8K @ 60Hz / eDP: 4K @ 60Hz |
| DirectX / OpenGL / OpenCL Support | 12 / 4.5 / 3 |
| AI Accelerator (NPU) | Intel® AI Boost (13 TOPS Int8) |
| AI Frameworks Supported | OpenVINOâ„¢, DirectML, ONNX RT, WebNN, WindowsML |
| PCI Express Revision | PCIe 5.0 & 4.0 |
| PCIe Lanes | Up to 24 |
| Thunderbolt | Thunderboltâ„¢ 4 |
| DMI Revision | 4.0 (8 Lanes) |
| Max Operating Temperature | 105°C |
| Thermal Solution Specification | PCG 2022C |
| Security Features | Intel® Secure Key, AES-NI, TME-MK, TXT, OS Guard, Boot Guard, MBEC |
| Virtualization Support | VT-x, VT-d, VT-rp, EPT |
| AI & Performance Technologies | Intel® Thread Director, DL Boost, Speed Shift, GNA 3.5 |
| Enterprise & Manageability | Intel vPro® Enterprise, AMT, ISM, RPE, One-Click Recovery |
| Reliability Programs | Intel® SIPP (Stable IT Platform Program) |
| Scalability | 1S Only |
| Execute Disable Bit | Yes |
| Instruction Set | 64-bit with AVX2, SSE4.1, SSE4.2 |
