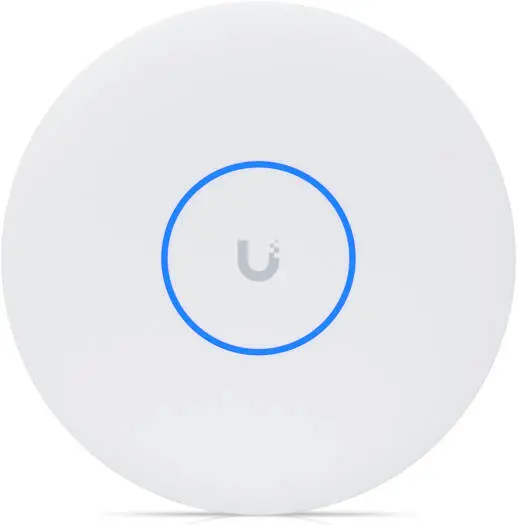

Ubiquiti UniFi U7 Pro XG WiFi 7 Tri-Band Access Point – 10GbE Uplink

Model: U7-Pro-XG

The UniFi U7 Pro XG is a next-generation WiFi 7 tri-band access point designed for high-density, high-performance networks that demand multi-gigabit wireless speeds and a true 10GbE wired uplink. With 6 spatial streams, 2x2 MU-MIMO on each band, and ultra-wide 320 MHz channels, it delivers exceptional capacity, low latency, and rock-solid reliability for modern enterprise environments.

Key Features

• WiFi 7 (802.11be) Tri-Band Access Point

• 10 GbE RJ45 Uplink (10/5/2.5/1 GbE Compatible)

• 6 Spatial Streams (2x2 MU-MIMO per Band)

• Up to 5.8 Gbps on 6 GHz Band

• Supports 300+ Concurrent Clients

• PoE+ Powered

• Ceiling & Wall Mount Design (Lite Mount Included)

• Enterprise-Grade Security & Guest Management

• Centralized Management via UniFi Network

Ultra-Fast WiFi 7 Performance

The U7 Pro XG is engineered for demanding environments where speed and capacity matter:

• 6 GHz Band:

  • 2x2 MU-MIMO

  • Up to 5.8 Gbps (BW320)

• 5 GHz Band:

  • 2x2 MU-MIMO

  • Up to 4.3 Gbps (BW240)

• 2.4 GHz Band:

  • 2x2 MU-MIMO

  • Up to 688 Mbps (BW40)

Supports EHT 20/40/80/160/240/320 MHz channel widths for maximum throughput and low-latency connections.

True 10GbE Uplink for Bottleneck-Free Networks

• 1 × 10 GbE RJ45 uplink

• Backward compatible with 5G / 2.5G / 1G

• Ideal for WiFi 7 backhaul, multi-gig switches, and high-speed LAN cores

Enterprise-Grade Wireless Features

• Wireless meshing & band steering

• Fast roaming (802.11k / v / r)

• Advanced radio management

• Guest network isolation

• Captive portal (branding, vouchers, payments, external portals)

• PPSK, speed limits & client isolation

• Dynamic VLAN & RADIUS over TLS (RadSec)

• Passpoint (Hotspot 2.0) support

Designed for Modern Deployments

• Clean ceiling or wall-mounted design

• Durable UV-stabilized polycarbonate & aluminum alloy enclosure

• Suitable for offices, campuses, hotels, retail, and enterprise floors

• Coverage Area: up to 140 m² (1,500 ft²)

Technical Specifications

Wireless

• WiFi Standard: WiFi 7 (802.11be)

• Spatial Streams: 6

• Max Clients: 300+

• Max BSSIDs: 8 per radio

Networking & Power

• Uplink: 1 × 10 GbE RJ45

• Power Method: PoE+

• Max Power Consumption: 22W

• Voltage Range: 42.5–57V DC

Mechanical

• Dimensions: Ø206 × 32.5 mm

• Weight: 750 g

• Color: White

• LEDs: System (White/Blue)

Environment

• Operating Temperature: -30 to 40°C

• Operating Humidity: 5–95% non-condensing

• Certifications: CE, FCC, IC

• NDAA Compliant

Software

• Management: UniFi Network

• Required Version: v9.0.114+
