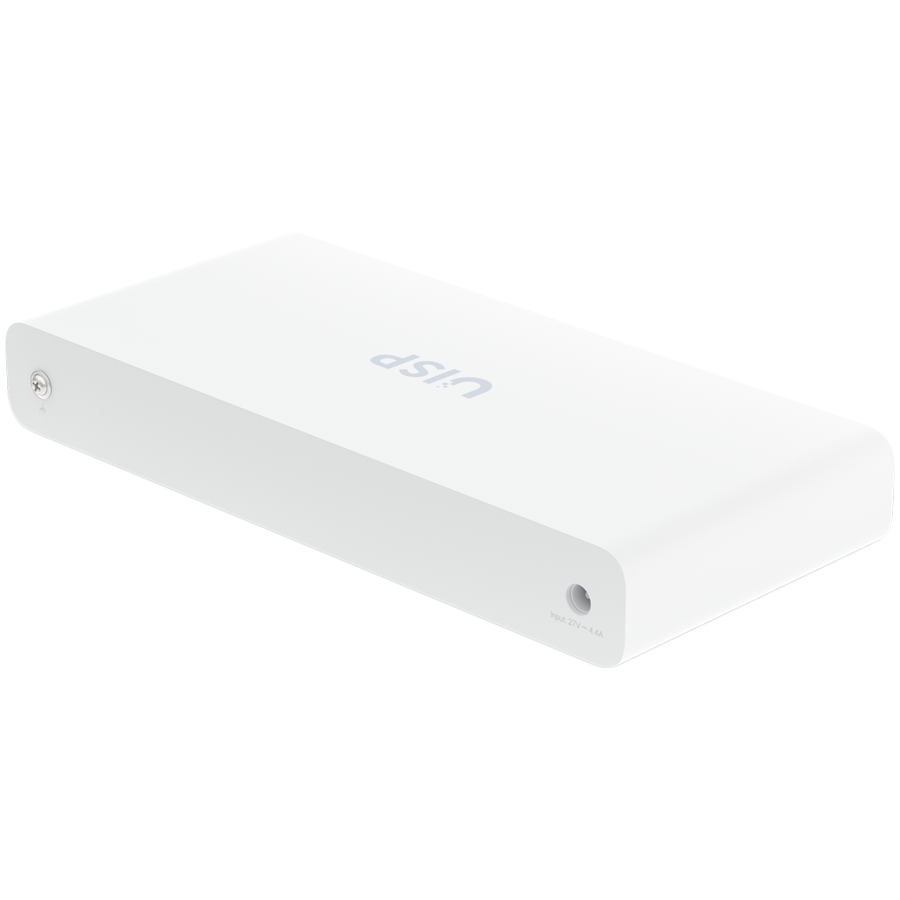

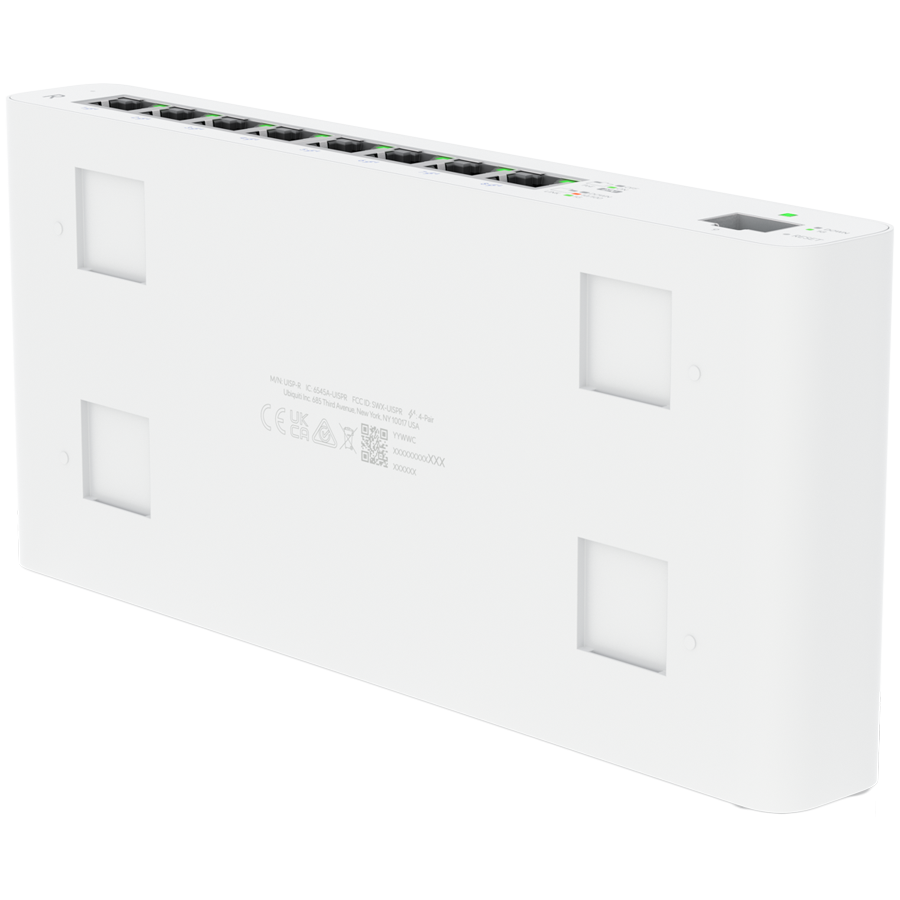

Ubiquiti UISP 8-Port Gigabit PoE Router | UISP-R

The Ubiquiti UISP Router (UISP-R) is an eight-port Gigabit PoE router engineered for MicroPoP and ISP edge deployments, delivering secure routing, traffic control, and reliable power distribution in a compact form factor. With up to 1 Gbps NAT throughput, integrated firewall, and OSPF routing, it is built to support scalable service-provider networks.

High-Performance Routing

• Up to 1 Gbps NAT throughput for high-speed internet delivery

• Advanced firewall features for network security

• OSPF routing for dynamic, scalable network topologies

• Traffic shaping with automated customer suspension capabilities

Flexible Connectivity & PoE

• 8 × Gigabit Ethernet RJ45 ports with 27V passive PoE output

• 1 × 1G SFP port for fiber uplinks

• 110W total PoE budget

  • Up to 15W per port (2-pair)

  • Up to 30W per port (4-pair)

• Ideal for powering UISP radios and CPE devices directly from the router

Compact, Service-Provider Ready Design

• Designed for MicroPoP and distributed ISP installations

• Durable polycarbonate enclosure

• Bluetooth BLE for easy setup and management

• Managed through the UISP application for centralized control

Key Specifications

• Processor: Dual-core 880 MHz MIPS1004Kc

• Memory: 512 MB DDR3

• Storage: 512 MB NAND

• Power Input: External AC/DC adapter (27V DC, 4.4A included)

• Power Consumption: 10W (excluding PoE output)

• Dimensions: 210.4 × 95 × 29 mm

• Weight: 600 g

• Operating Temperature: −10 to 50 °C

• Operating Humidity: 5–95% non-condensing

• Certifications: CE, FCC, IC
