Product Description

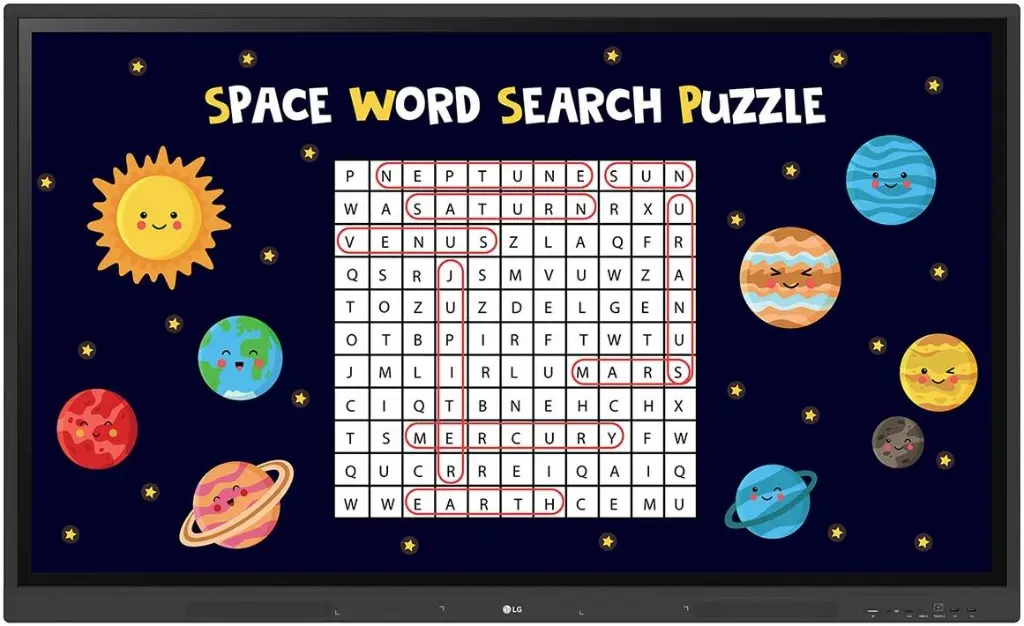

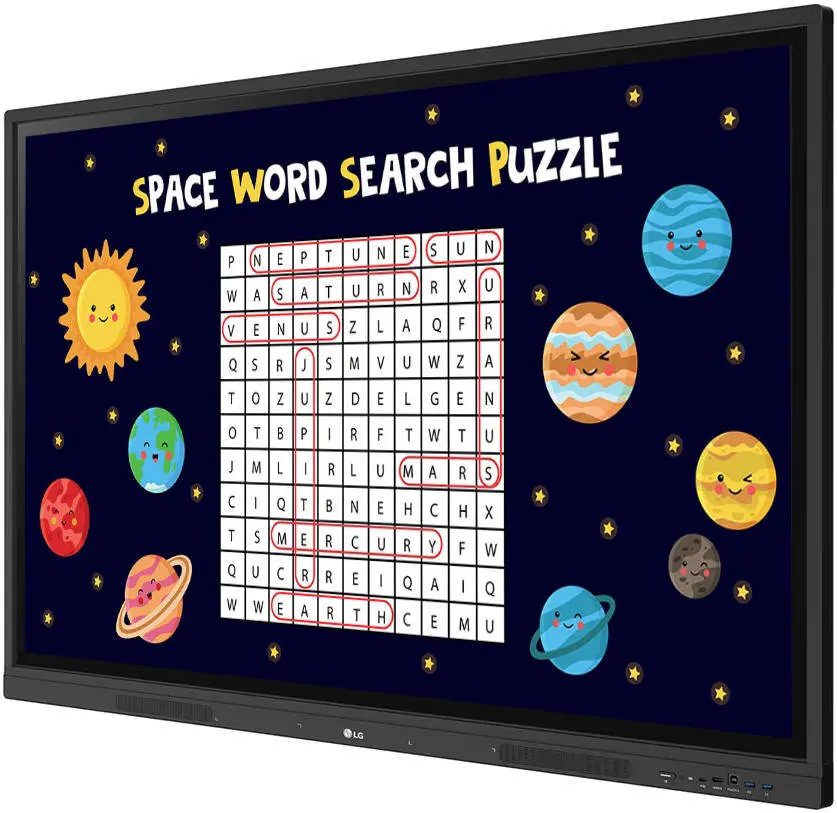

LG 86TR3DK-BG CreateBoard Interactive Display, 86" 4K UHD IPS Touch Display, 60Hz Refresh Rate, 8ms Response Time, Quad-Core A55 CPU, Mali G52MP2 GPU, 32GB Storage, 4GB RAM, Free VESA Mount, Black | 86TR3DK
Overview
The LG 86TR3DK-BG CreateBoard Interactive Display delivers a powerful and engaging platform for classrooms, meeting rooms, and collaborative workspaces. With its 86-inch 4K UHD IPS panel, ultra-responsive multi-touch capability, and intuitive Android 11 system, it ensures a seamless, interactive experience for education and business environments alike.
Equipped with 40-point multi-touch, Quad-Core A55 processor, and Mali G52MP2 GPU, the CreateBoard offers precise touch control, smooth performance, and stunning visual clarity. The built-in LG CreateBoard Lab software enhances productivity and engagement, allowing for easy annotations, sharing, and interactive learning.
Key Features
️ Massive 86" 4K UHD IPS Panel – Exceptional clarity and wide viewing angles with 3840×2160 resolution.
40-Point Multi-Touch Support – Highly responsive interaction for multiple users simultaneously.
️ High Performance – Powered by a Quad-Core A55 CPU and Mali G52MP2 GPU for smooth multitasking.
Ample Memory & Storage – 4GB RAM and 32GB internal storage for fast app performance.
Superior Display Quality – 440 nits max brightness, 1200:1 contrast ratio, and NTSC 72% color gamut.
Built-In Stereo Speakers (15W x 2) – Clear, room-filling audio for presentations and classes.
Advanced Connectivity – HDMI, USB-C (with PD and DP Alt), RS-232C, RJ45, VGA, and dual USB touch ports.
Wireless Ready – WiFi 6 and Bluetooth 5.0 ensure fast and reliable connectivity.
Durable & Efficient Design – 50,000-hour panel life and 16/7 operation rating for consistent performance.
Energy-Efficient Operation – Low power consumption with ≤0.5W standby mode.
Free VESA Mount Included – Easy installation for professional or educational environments.
Specifications
| Category | Specification |
| Brand | LG |
| Model | 86TR3DK-BG |
| Display Type | Interactive Digital Display |
| Screen Size | 86 inches |
| Panel Technology | IPS, Direct Backlight |
| Aspect Ratio | 16:9 |
| Native Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Max / Typ.) | 440 nits / 390 nits |
| Contrast Ratio | 1200:1 |
| Color Gamut | NTSC 72% |
| Color Depth | 10-bit (8-bit + FRC) |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Surface Treatment | Anti-Glare (25% Haze) |
| Lifetime | 50,000 Hours (L30) |
| Operation Hours | 16 Hours / Day, 7 Days / Week |
| Portrait / Landscape Mode | No / Yes |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% – 90% RH |
| Speakers | Built-in 15W x 2 |
| Processor (SoC) | Quad-Core A55 |
| GPU | Mali G52MP2 |
| RAM / Storage | 4GB / 32GB |
| Operating System | Android 11 |
| Connectivity (Input) | HDMI (x3, HDCP 2.2), RGB (VGA), Audio In, RS-232C, RJ45, USB 3.0 (x4), USB 2.0, USB Type-C (PD + DP-Alt) |
| Connectivity (Output) | HDMI Out, Audio Out (SPDIF), Touch USB (x2), RJ45 |
| Wireless Connectivity | WiFi 6 (802.11a/b/g/n/ac/ax), Bluetooth 5.0 |
| LAN | Gigabit Ethernet |
| Touch Technology | Infrared |
| Multi-Touch Points | Up to 40 Points |
| Touch Accuracy | ±1 mm |
| Touch Object Size | ≥ 2 mm |
| Touch Response Time | ≤ 5 ms |
| Touch Interface | USB 2.0 |
| Protection Glass | 3T (Anti-Glare), 88% Transmission |
| Bezel Width (T/R/L/B) | 15 / 15 / 15 / 44 mm |
| Bezel Color | Black |
| Dimensions (W x H x D) | 1957 × 1160 × 100 mm |
| Carton Dimensions | 2110 × 1283 × 225 mm |
| Weight (Net / Packed) | 58.6 kg / 75.9 kg |
| Mount Compatibility | VESA 800 × 400 mm |
| Power Supply | 100–240V AC, 50/60Hz, 4.0A |
| Power Consumption (Typ./Max) | 220W / 420W |
| Standby Power | ≤ 0.5W |
| Certification | CE, FCC, RoHS |
| Included Accessory | Free VESA Mount |
| Color | Black |
