Product Description

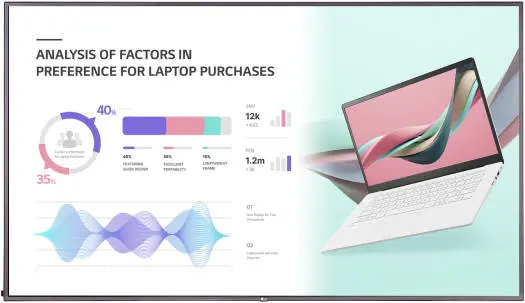

LG 86UH5J-H 86" 4K UHD IPS Commercial Signage Display | 120Hz Refresh Rate | 500 nits Brightness | 10-bit Color Depth | webOS 6.0 | 24/7 Operation | Black
The LG 86UH5J-H is a high-performance 4K UHD professional signage display engineered for continuous commercial operation and exceptional visual impact. Designed for corporate lobbies, airports, retail stores, and meeting spaces, it combines brilliant image clarity with advanced control features and elegant design.
Equipped with a 500-nit high-brightness IPS panel and 120Hz refresh rate, the UH5J-H delivers vivid, sharp, and fluid visuals that capture attention even in brightly lit indoor environments. Its wide 178° viewing angle and 10-bit color depth (1.07 billion colors) ensure realistic color reproduction and outstanding visual fidelity from any direction.
Powered by LG webOS 6.0, this signage display offers seamless content management, scheduling, and playback, with full support for SuperSign CMS and Signage 365Care remote management. With built-in Wi-Fi, 16GB internal storage, and a wide range of connectivity options, the 86UH5J-H provides the flexibility and reliability required for professional digital signage systems.
Key Features
86" 4K UHD IPS Display (3840 × 2160) – Exceptional brightness and color accuracy with a wide viewing angle.
120Hz Refresh Rate – Ultra-smooth motion ideal for dynamic content and presentations.
High Brightness (500 nits) – Perfect visibility in indoor public and commercial environments.
10-bit Color Depth (1.07 Billion Colors) – Produces lifelike, true-to-source visuals.
24/7 Operation – Built for continuous use in demanding commercial settings.
LG webOS 6.0 Platform – Intuitive, secure, and efficient smart signage OS with built-in CMS and group management.
Smart Connectivity – HDMI, DP, DVI-D, USB, RS-232C, and LAN support for versatile integration.
Advanced Control – SNMP, Fail Over, Auto Set ID, and Status Mailing functions for remote monitoring.
Integrated Audio – Built-in speakers for simplified installation without external equipment.
OPS Slot Ready – Compatible with LG OPS kits and third-party media players.
Eco-Friendly Operation – Smart Energy Saving mode reduces power consumption up to 70%.
Specifications
| Category | Details |
| Model | LG 86UH5J-H |
| Display Size | 86" |
| Panel Type | IPS (Edge LED) |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Refresh Rate | 120Hz |
| Brightness (Typ.) | 500 nits |
| Contrast Ratio (Static / Dynamic) | 1,100:1 / 1,000,000:1 |
| Color Gamut | NTSC 72% |
| Color Depth | 10-bit (1.07 Billion Colors) |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time (G to G) | 8ms |
| Surface Treatment (Haze) | 28% |
| Operation Hours | 24/7 |
| Lifetime (Typ.) | 50,000 hrs |
| Operating System | LG webOS 6.0 |
| Internal Memory | 16GB |
| Wireless Connectivity | Built-in Wi-Fi |
| Inputs | 3× HDMI, 1× DisplayPort, 1× DVI-D, Audio In, RS-232C IN, RJ45 (LAN), IR IN, USB 2.0 |
| Outputs | HDMI Out, Audio Out, RS-232C OUT |
| Audio | Built-in Speakers |
| Bezel Color / Width | Black / 14.3 mm (Even Bezel) |
| Dimensions (W×H×D) | 1926.2 × 1097.2 × 60.6 mm |
| Carton Dimensions (W×H×D) | 2073 × 1250 × 285 mm |
| Weight (Net / Packed) | 49.0 kg / 72.5 kg |
| Handle | Yes |
| VESA Mount | 600 × 400 mm |
| Power Supply | AC 100–240V, 50/60Hz |
| Power Consumption (Typ. / Max.) | 215W / 280W |
| Smart Energy Saving | ~150.5W (Up to 70% reduction) |
| Standby Power | 0.5W |
| Operating Temperature / Humidity | 0–40°C / 10–80% |
| Certifications | CB, NRTL, FCC Class “A”, CE, KC, ErP |
| OPS Compatibility | Yes |
| Software Support | SuperSign CMS / Control / Control+ / WB / Media Editor / Mobile CMS / Signage 365Care |
| Included Accessories | Remote Control (2× Batteries), Power Cord, QSG, Regulation Book, RS232C Gender Adapter |
| Optional Accessories | OPS Kit (KT-OPSF), Wall Mount (LSW640A/B) |
