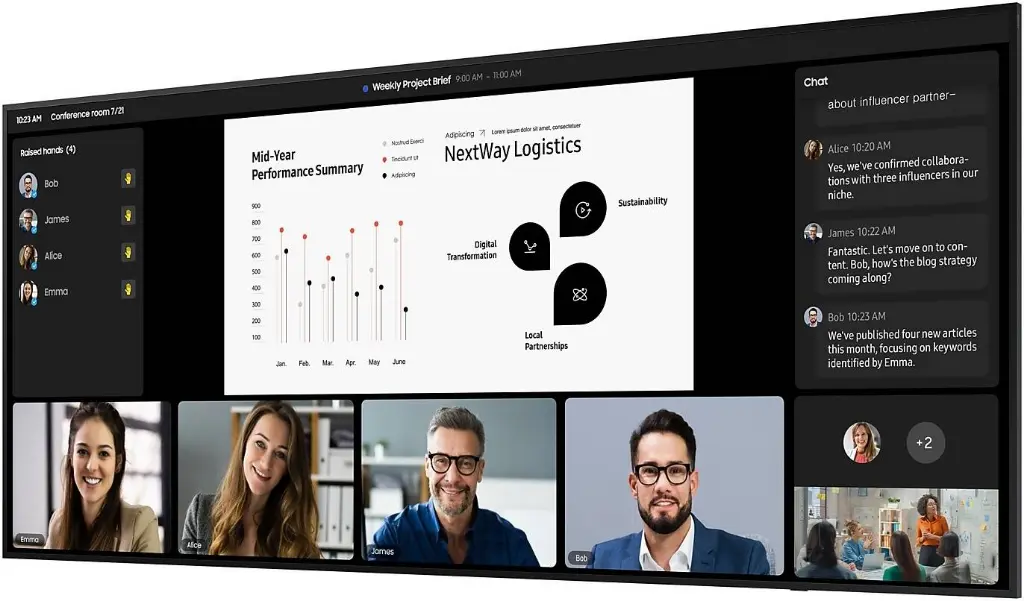

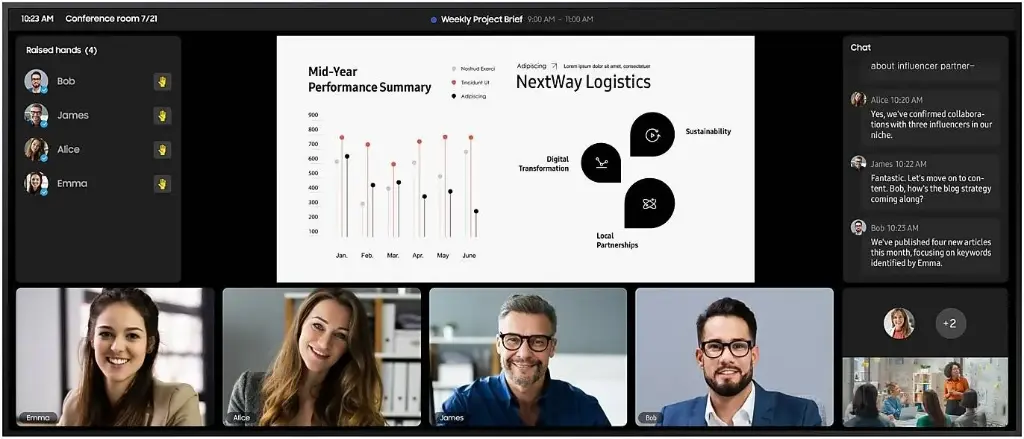

Samsung QPDX-5K Series Digital Signage – 105"

Key Highlights

• Screen Size: 105 inches

• Resolution: 5K UHD (5120 × 2160) with ultra-wide 21:9 aspect ratio

• Panel Type: VA (Vertical Alignment)

• Operating System: Tizen 8.0

• Memory: 16 GB internal storage

• Connectivity: Wi-Fi & Bluetooth built-in

• Color: Slate Black

• Operation: 24/7 continuous usage

Display Specifications

• Resolution: 5K UHD (5120 × 2160)

• Aspect Ratio: 21:9 ultra-wide

• Brightness: 500 nits (typical)

• Contrast Ratio: 4000:1 (static)

• Dynamic Contrast: Mega Contrast

• Response Time: 6 ms

• Viewing Angles: 178° (H) / 178° (V)

• Color Gamut: 72% NTSC

• Screen Haze: 25% (anti-glare surface)

• Operation Time: Rated for 24/7 use

Connectivity & Ports

• HDMI: 3 × HDMI 2.1

• DisplayPort: 1 × DP 1.4

• USB: 2 × USB-A, 1 × USB-C

• Audio Out: Stereo mini-jack

• RS-232C (In/Out): Yes

• RJ45 (LAN): Yes

• IR Input: Yes

• Wireless: Wi-Fi & Bluetooth

Smart & Software

• Platform: Tizen 8.0

• Internal Storage: 16 GB

• Features: Smart content sharing, screen mirroring, multi-screen view (up to 10 sources), OPS slot compatibility for modular computing

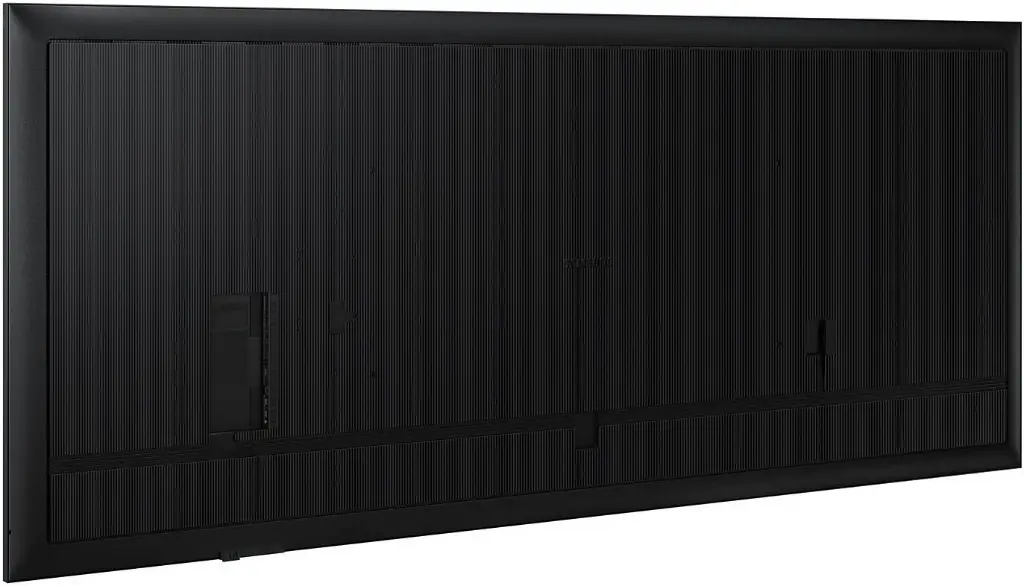

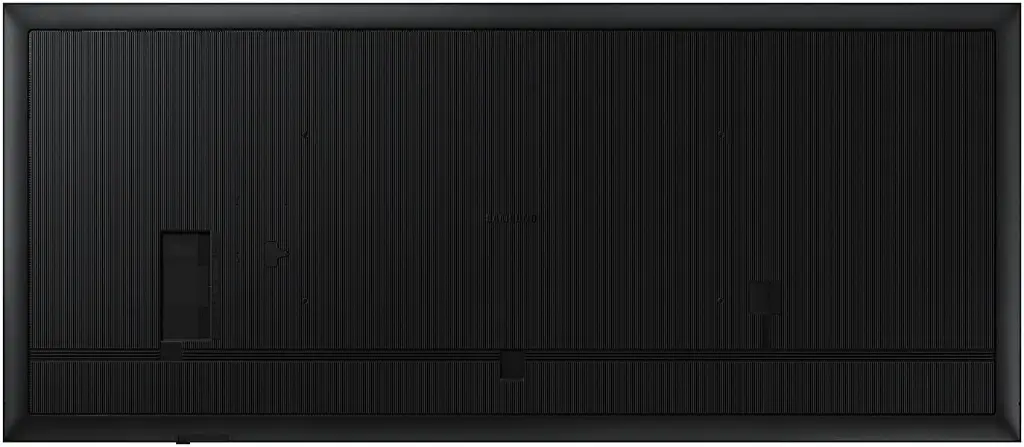

Mechanical & Physical Specs

• Dimensions (W × H × D): 2484.3 × 1068.0 × 48.1 mm

• Package Dimensions: 2668.0 × 1190.0 × 275.0 mm

• Weight (Set): ~55.6 kg

• Weight (Packaged): ~78.1 kg

• Bezel Width: 14.8 mm (uniform all sides)

• Mounting Standard: VESA 1000 × 400 mm

• Frame Finish: Slim, slate black, non-glossy metal

Power & Environmental

• Power Supply: AC 100-240V, 50/60Hz

• Power Consumption (On): ~550 W

• Power Consumption (Standby): ~0.5 W

• Certifications: ENERGY STAR 8.0, EPEAT, Eco Class A+

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 10% to 80% (non-condensing)

Strengths

• Massive ultra-wide 105″ screen ideal for conferences, control rooms, and signage

• 5K resolution ensures sharp, clear visuals across the wide canvas

• Slim 48 mm depth and outward-facing ports for clean installation

• Non-glare screen with 25% haze helps visibility in bright environments

• Full suite of ports plus wireless connectivity for flexible use

• Designed for 24/7 operation, reliable for professional/business needs

Considerations

• High power usage (≈550 W) when active

• Brightness (500 nits) is good but may struggle under direct sunlight

• Color coverage (72% NTSC) is moderate compared to premium color-critical monitors

• Large size and weight require careful installation and support

• Ultra-wide 21:9 format means standard 16:9 content will show black bars

Ideal Applications

• Corporate boardrooms and hybrid meeting rooms

• Retail stores and high-end showrooms

• Airports, train stations, and public digital signage

• Control rooms and monitoring centers

• Education lecture halls and museums
