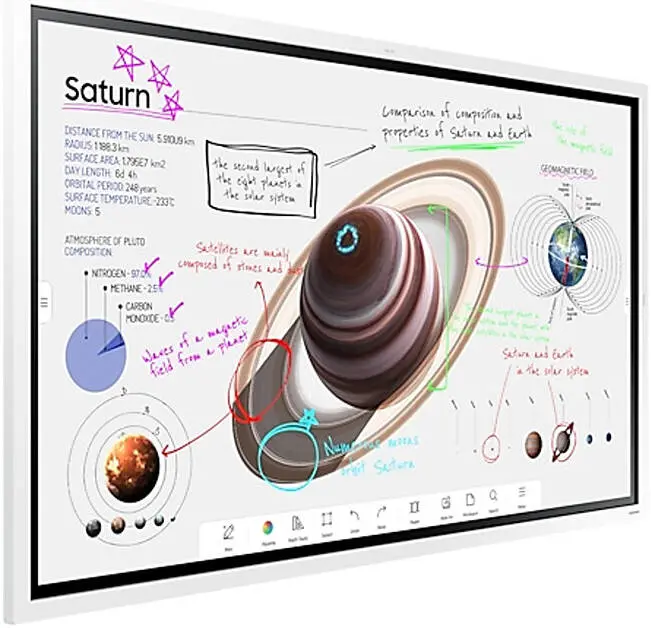

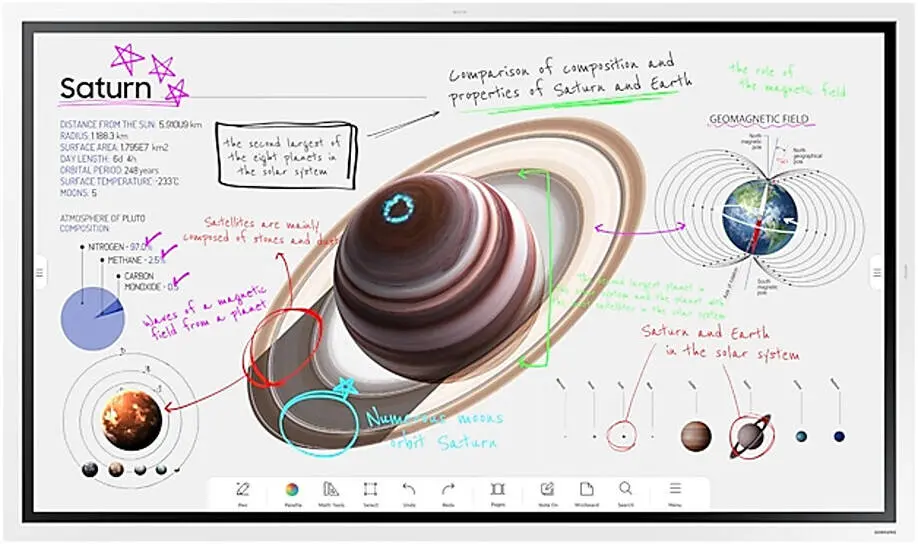

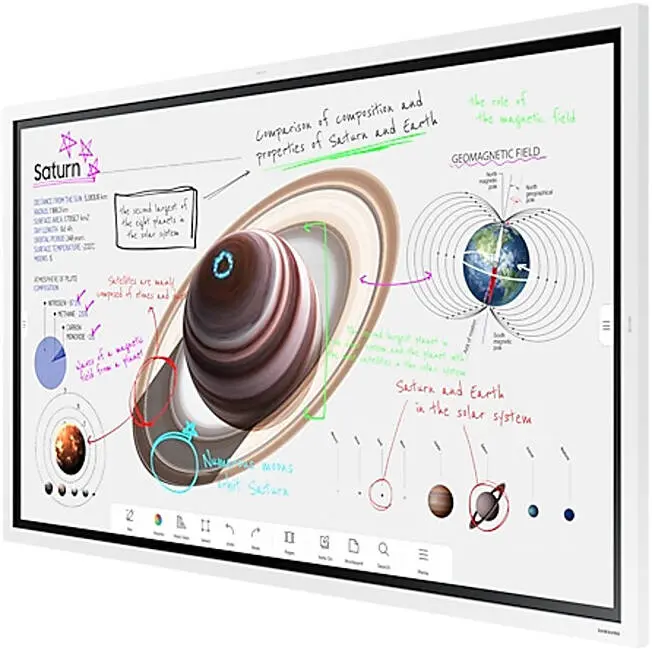

Samsung Interactive Display 55" (WMB Series)

Model Code: LH55WMBWBGCXUE

Display Specifications

• Screen Size: 55 inches
• Panel Type: IPS
• Resolution: 3840 x 2160 (UHD 4K)
• Brightness (Typical): 350 nits
• Contrast Ratio: 1,200:1
• Refresh Rate: 60Hz
• Viewing Angle (H/V): 178° / 178°
• Response Time: 8ms (GtG)
• Touch Technology: Infrared (IR)
• Touch Points: Up to 20 simultaneous touch points
• Glass Type: Anti-glare, protective glass (4mm)
• Surface Hardness: 9H

System & Performance

• Operating System: Tizen 6.5
• CPU: Quad Core A72 1.7GHz
• GPU: Mali-G51 MP4
• RAM: 3.5GB
• Storage: 32GB

Connectivity

Inputs:

• 3x HDMI
• 1x USB 3.0
• 2x USB 2.0
• 1x USB Touch Out
• 1x DP (DisplayPort)
• 1x LAN (RJ45)
• 1x Audio In
• 1x RS232

Outputs:

• 1x Audio Out

Wireless:

• Built-in Wi-Fi 5 (802.11ac)
• Bluetooth 5.2

Audio

• Speakers: Built-in 2 x 10W

Software Features

• Whiteboard
• Screen Mirroring
• Document Viewer
• Web Browser
• Remote Management
• Annotation
• Multi-window support
• Wireless display support (e.g. AirPlay, Miracast)

Mechanical Specs

• Bezel Color: Charcoal Black
• Bezel Width: 26.9mm (T/B/L/R)

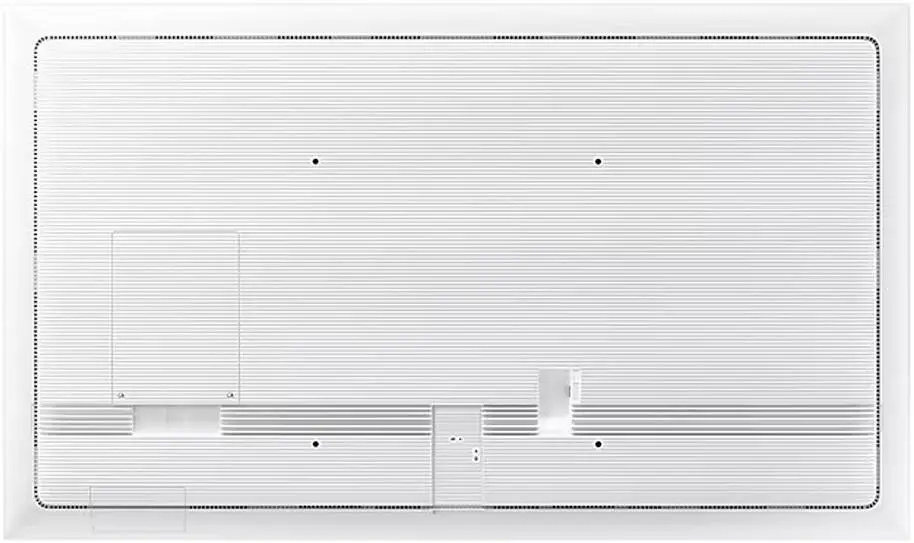

• VESA Mount: 400 x 400 mm
• Dimensions (without stand): Approx. 1265 x 768 x 63 mm
• Weight (without stand): Approx. 28.2 kg

Power & Environmental

• Power Supply: AC 100~240V, 50/60Hz
• Typical Power Consumption: ~120W
• Standby Power: <0.5W
• Operating Temperature: 0°C to 40°C
• Humidity: 10% to 80% (non-condensing)

Included Accessories

• Remote Control
• Power Cable
• Touch Pen(s)
• Wall Mount
• Quick Setup Guide
