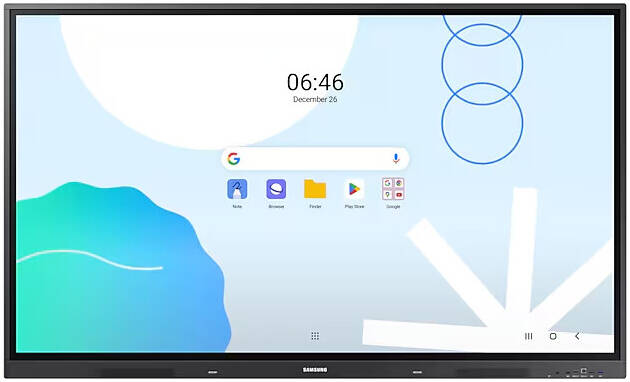

🖥️ Display Specifications
Size: 65 inches
Panel Type: VA
Resolution: 3840 x 2160 (UHD 4K)
Brightness (Typical): 350 nits (220 nits with protective glass)
Contrast Ratio: 4000:1
Response Time: 8 ms
Viewing Angle (H/V): 178° / 178°
Color Gamut: 72%
Touch Technology: Infrared (IR)
Touch Points: Up to 20 simultaneous
Glass Type: 4mm tempered, anti-glare, anti-microbial, shatterproof
🧠 System & Software
Operating System: Tizen 6.5
Internal Storage: 32GB eMMC
RAM: 3.5GB
Processor: Quad Core (A72)
Usage Time: Rated for 16/7 operation
Features:
Whiteboard & Annotation
Document Viewer & Web Browser
Multi-window support
Screen mirroring (SmartView+, Miracast, AirPlay 2)
OPS slot support
Video call support (WebRTC, Google Duo)

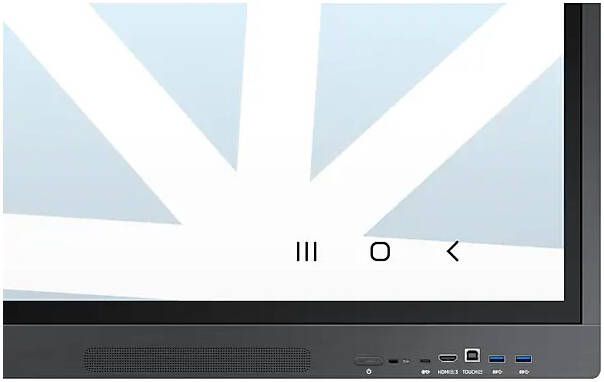

🔌 Connectivity
HDMI: 2x HDMI 2.0
DisplayPort: 1x DP 1.2
USB Ports:
2x USB-A (front)
1x USB-A (rear)
1x USB-C (front, with up to 65W charging)
LAN (RJ45): Yes
RS-232: Yes
Wi-Fi: Built-in (Wi-Fi 5)
Bluetooth: Built-in (v5.2)
🔊 Audio
Speakers: Built-in (2 x 10W)
Audio Out: Available

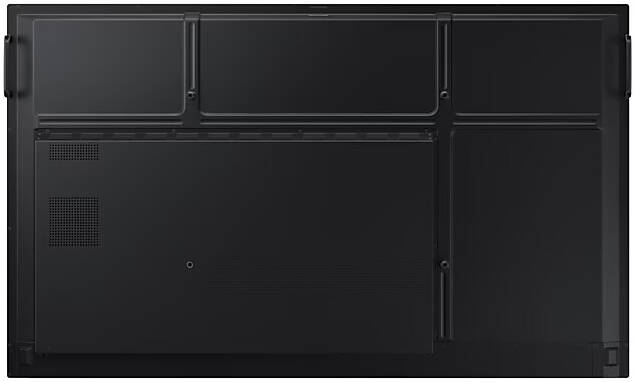

⚙️ Mechanical Details
Dimensions (W x H x D): 1724 x 1026.3 x 89 mm
Package Dimensions: 1905 x 1189 x 287 mm
Net Weight: 59.3 kg
Gross Weight: 72.2 kg
Bezel Width: 20.4 mm (top/sides), 44.7 mm (bottom)
VESA Mount: 400 x 400 mm
Color: Charcoal Black
🔋 Power & Environment
Power Supply: AC 100–240V, 50/60Hz
Power Consumption (Typical): ~473W
Standby Power: < 0.5W
Operating Temperature: 0°C to 40°C
Humidity Range: 10% – 80% (non-condensing)
🎁 Included Accessories
2x Passive Touch Pens
Wall Mount
Power Cable
USB Touch Cable
Quick Start Guide
Remote Control
