Product Description
MSI MAG PANO 110R PZ — 270° Panoramic Glass, Reverse-Blade ARGB Fans, USB-C 20Gbps, Back-Connect Support | 306-7G28W21-JA4

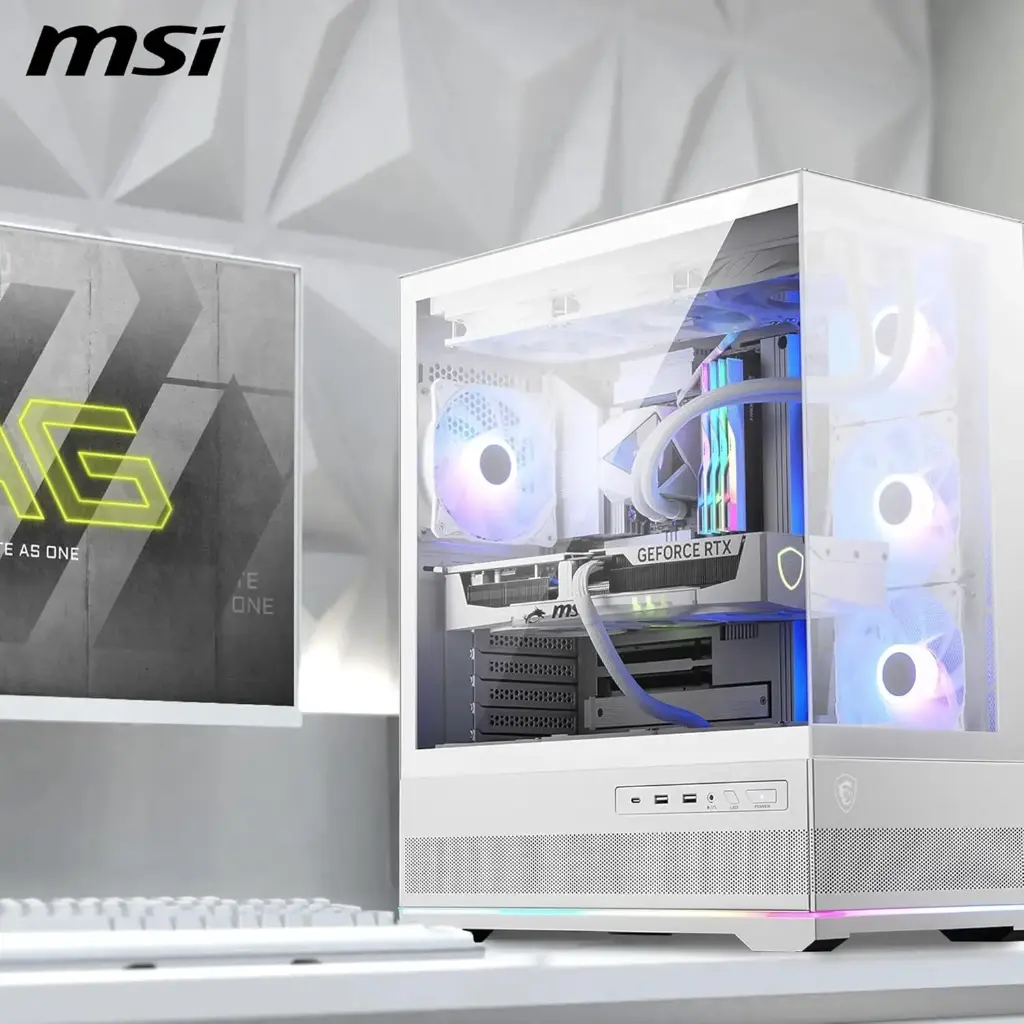

The MSI MAG PANO 110R PZ redefines modern gaming aesthetics with a stunning 270° panoramic glass design, delivering an ultra-clear view of your high-end components from every angle. Built under the MAG series philosophy of durability, stability, and performance, this chassis combines premium materials, optimized airflow, and a tool-free layout to elevate any enthusiast gaming build.
Equipped with four pre-installed ARGB reverse-blade fans, the case ensures unobstructed lighting visuals without visible fan frames—creating a clean, futuristic display. The included ARGB fan control board supports up to 5 ARGB fans and allows users to toggle 18 lighting effects instantly using the dedicated LED button.
The PANO 110R PZ is engineered for airflow excellence, supporting up to 10 fans, a 360mm top radiator, and efficient lower-chamber ventilation for high-performance cooling. Designed with versatility in mind, it supports both regular and back-connect motherboards, enabling ultra-clean cable management and next-level system building.
Premium features like USB Type-C 20Gbps, a solid PSU shroud, tool-less panels, and wide hardware compatibility make this mid-tower the perfect choice for gamers, creators, and PC enthusiasts who demand both style and performance.
Specifications
| Category | Details |
| Model | MAG PANO 110R PZ |
| SKU | 306-7G28W21-JA4 |
| Form Factor | Mid-Tower |

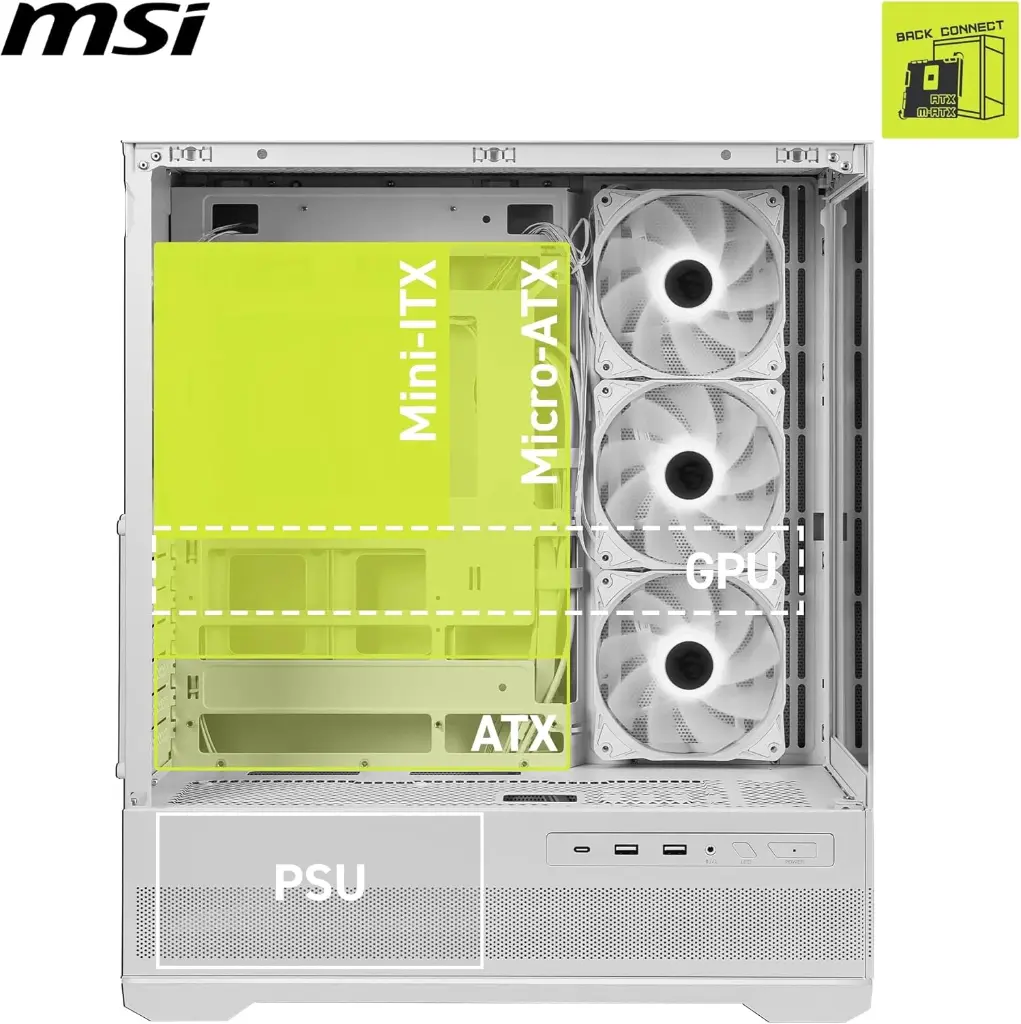

| Motherboard Support | Back-connect: ATX / Micro-ATX Regular: ATX / Micro-ATX / Mini-ITX |
| Materials | Steel, Tempered Glass |
| Design | 270° Panoramic Tempered Glass |

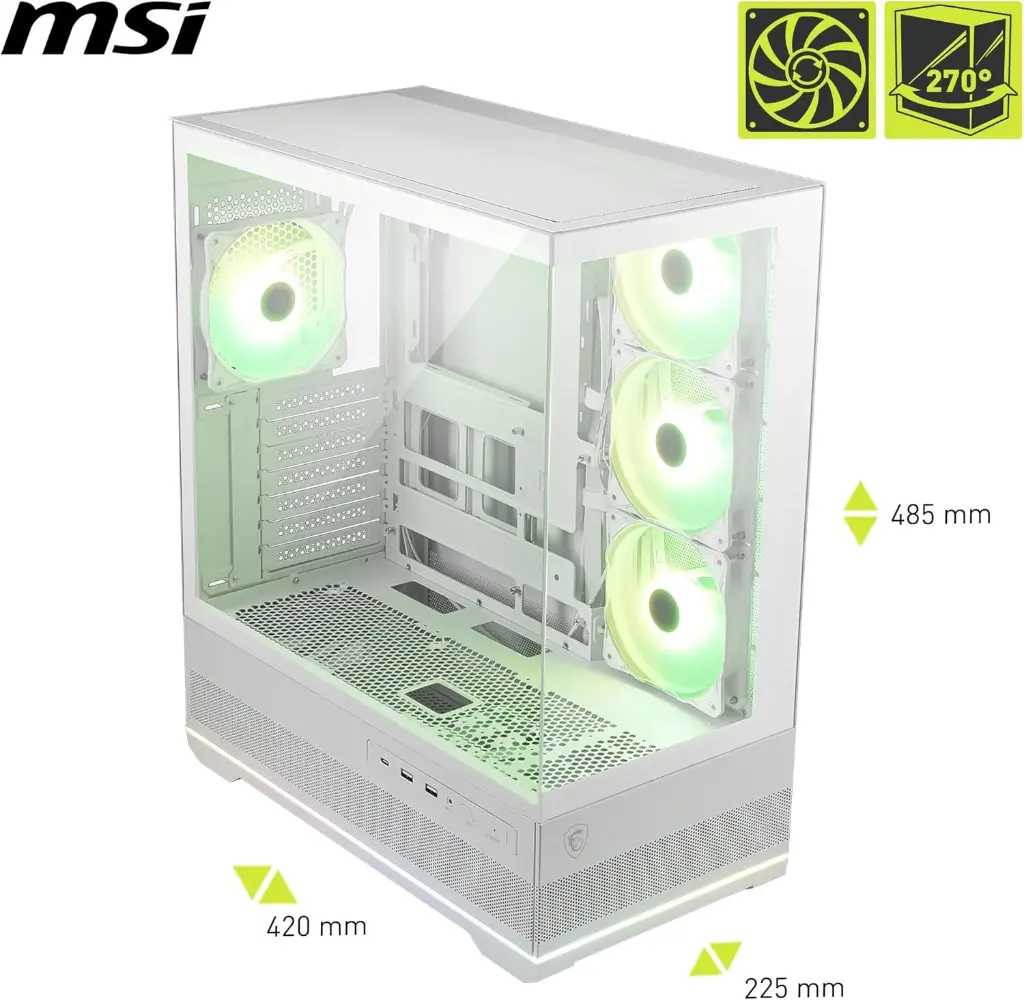

| Product Dimensions | 420 × 225 × 485 mm |
| Drive Bays | 2 × 2.5"/3.5" combo 2 × 2.5" |
| Expansion Slots | 7 |
| GPU Clearance | Up to 400 mm |
| CPU Cooler Clearance | Up to 160 mm |
| PSU Support | ATX PSU |
| PSU Length Limit | Up to 200 mm |
| Pre-Installed Fans | Rear: 1 × 120mm ARGB Side: 3 × 120mm ARGB Reverse-Blade |
| Fan Support | Top: 3 × 120mm / 2 × 140mm Side: 3 × 120mm / 2 × 140mm Bottom (PSU Shroud): 3 × 120mm Rear: 1 × 120mm Total Support: 10 Fans |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360mm Rear: 120mm |
| ARGB Control Board | 1-to-5 ARGB hub with 18 lighting modes |

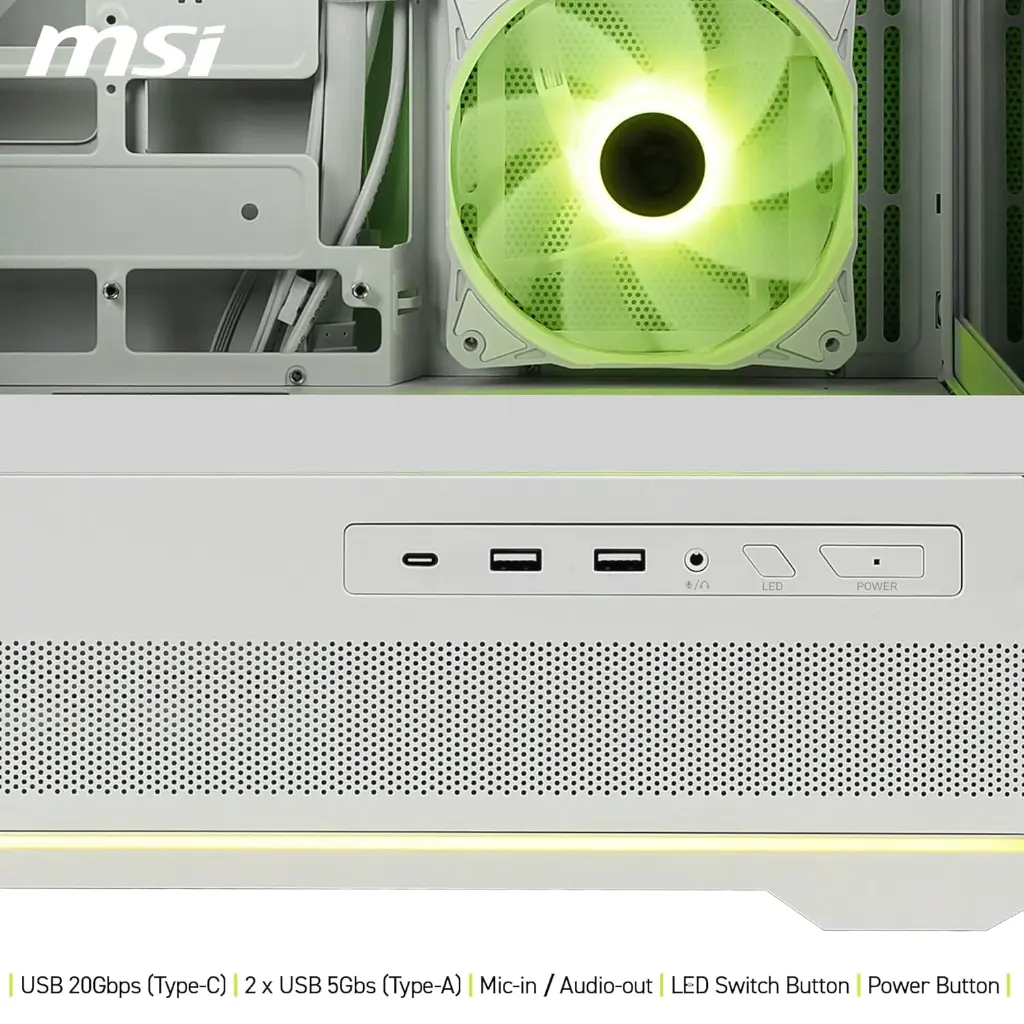

| I/O Ports | 1 × USB-C (20Gbps) 2 × USB-A (5Gbps) 1 × Audio Out / Mic-In Power Button LED Button |
| Special Features | Reverse-blade ARGB fans, panoramic glass, tool-free design, upgraded airflow chamber, back-connect motherboard support |
