Product Description
MAXHUB V6 Classic Series C7530 | 75" 4K UHD Interactive Display | IR Touch | 20-Point Multi-Touch | 48MP Camera | Built-in Mic & Speakers | webOS-Compatible | Black

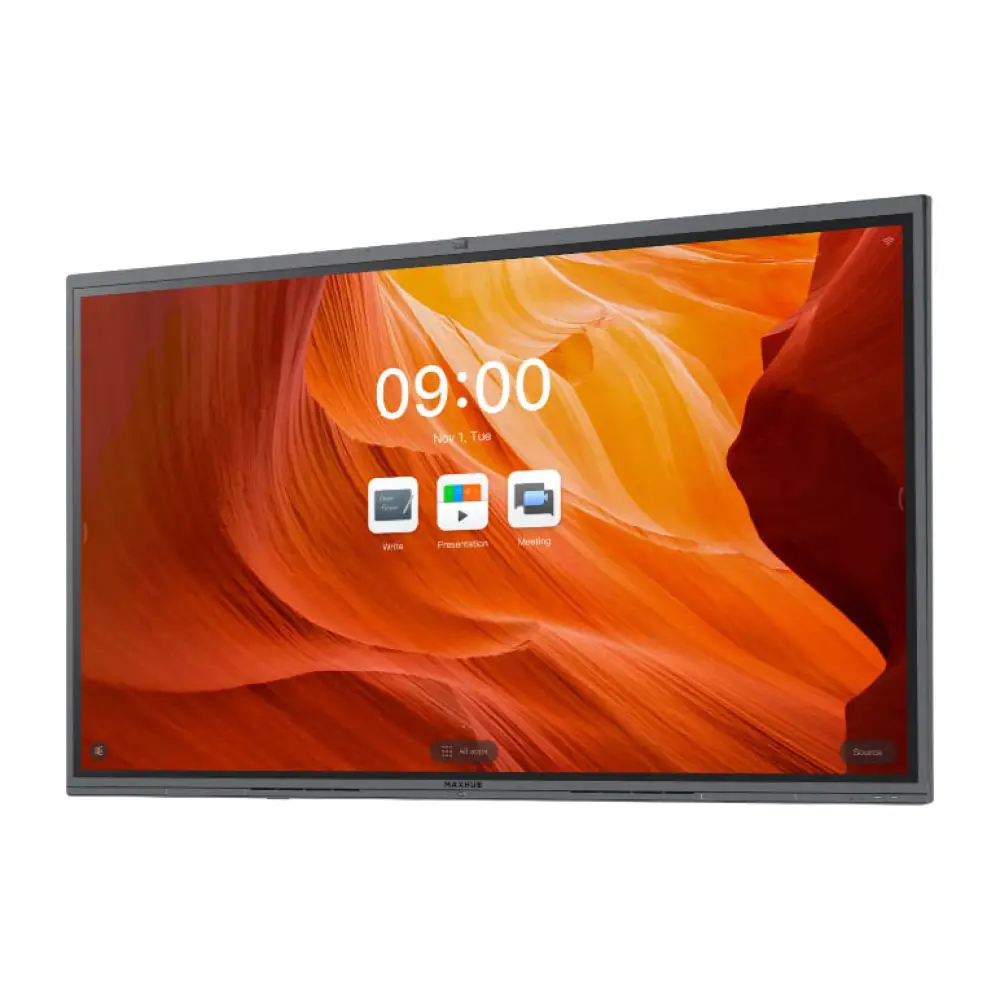

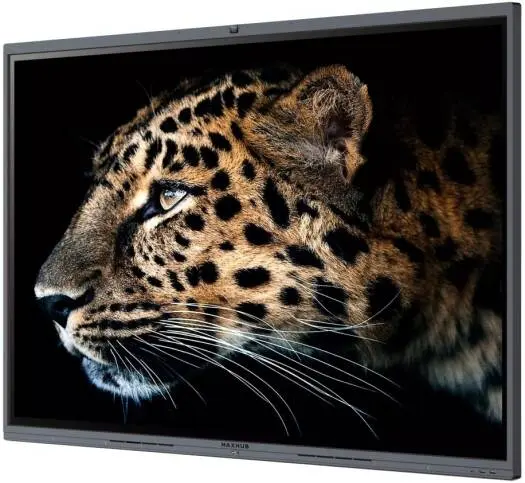

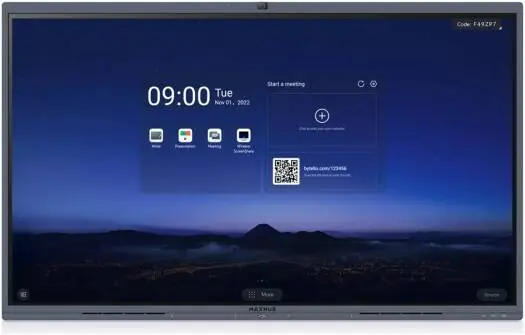

The MAXHUB V6 Classic Series C7530 is a premium 75-inch interactive flat panel display designed to enhance collaboration, communication, and productivity in modern workspaces. Ideal for meeting rooms, classrooms, and hybrid conference environments, it combines 4K UHD resolution, 20-point IR touch, and advanced audiovisual capabilities for seamless, engaging interaction.
The Direct-lit LED VA panel delivers vivid visuals with a 350-nit brightness and 90% NTSC color gamut, ensuring exceptional clarity and color accuracy. Integrated 48MP camera, 8-element microphone array, and 2.1-channel speakers (2×10W + 20W subwoofer) enable crystal-clear conferencing experiences.
Built for reliability with 16/7 operation, anti-glare antibacterial glass, and zero parallax touch, the C7530 provides both durability and precision. It supports a wide range of systems — Windows, Android, Linux, macOS, and Chrome OS — and includes versatile connectivity via HDMI, USB-C, RS232, and OPS expansion.
From brainstorming to remote collaboration, the MAXHUB V6 Classic is engineered for smart, efficient teamwork.
Key Features
75" 4K UHD Display (3840 × 2160) – Stunning clarity and wide 178° viewing angle.
20-Point IR Touch System – Smooth, responsive, and precise multi-touch interaction.
48MP Built-in Camera – Ultra-high-definition video for professional conferencing.
8-Microphone Array (8m Range) – Far-field voice capture with beamforming technology.
Powerful 2.1 Channel Sound System – Dual 10W speakers with 20W subwoofer for clear, room-filling audio.
Antibacterial Anti-Glare Glass (3mm) – Safe, comfortable, and reflection-free interaction surface.
Wide OS Compatibility – Works with Windows, Android, macOS, Linux, and Chrome OS.
OPS & Wi-Fi Modules Included – Expandable computing power with seamless connectivity.
Durable for Daily Use – Rated for 16 hours/day, 7 days/week operation.
Complete Collaboration Kit – Includes power cord, Wi-Fi adapter, styluses, wall mount, and USB-C cable.
Specifications
| Category | Details |
| Model | MAXHUB V6 Classic Series C7530 |
| Display Size | 75" |
| Panel Type | VA (Direct-Lit LED) |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typ.) | 350 cd/m² |
| Contrast Ratio | 1200:1 / 4000:1 |
| Color Gamut | 90% NTSC |
| Response Time | 8.5 ms |
| Viewing Angle (H/V) | 178° / 178° |
| Refresh Rate | 60Hz |
| Operation Hours | 16/7 |
| Glass | 3mm Anti-Glare, Antibacterial, Zero Parallax |
| Touch Technology | IR Touch, 20 Points |
| Touch Accuracy / Object Size | ±1 mm / ≥2 mm |
| Supported OS | Windows, Android, macOS, Linux, Chrome OS |
| Audio Output Power | 2.1 Channel (2×10W + 20W) |
| Microphone Array | 8x Beamforming Mics (8m Range) |
| Camera | 48MP Single Camera |
| Input Ports | 1× HDMI, 1× USB 2.0, 2× USB 3.0, 2× USB Type-C, 1× TOUCH 2.0 |
| Output / Control Ports | Audio Out, RS232 |
| OPS Slot | Yes (Supports 3840×2160 @ 60Hz) |
| Included OPS Module | MT61 / SI06 |
| Wi-Fi Module | Yes |
| VESA Mount | 800×400 mm (M8×25mm Screws) |
| Dimensions (W×H×D) | 1709 × 1026 × 87 mm |
| Shipping Dimensions (W×H×D) | 1863 × 1140 × 225 mm |
| Net / Gross Weight | 48.3 kg / 62.8 kg |
| Power Supply | AC 100–240V, 50/60Hz |
| Max Power Consumption | 400W |
| Standby Power | ≤0.5W |
| Operating Temperature / Humidity | 0°C–40°C / 10–90% RH |
| Included Accessories | Power Cord, Wi-Fi Adapter, 2× Passive Stylus, Wall Mount, 1.8m Type-C Cable |
