Product Description

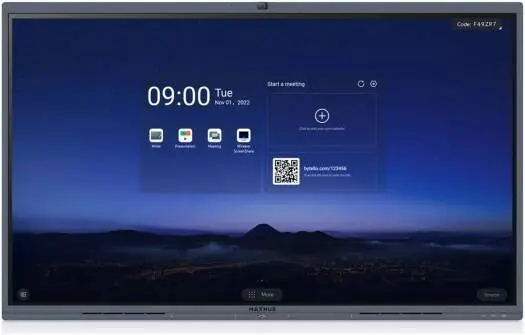

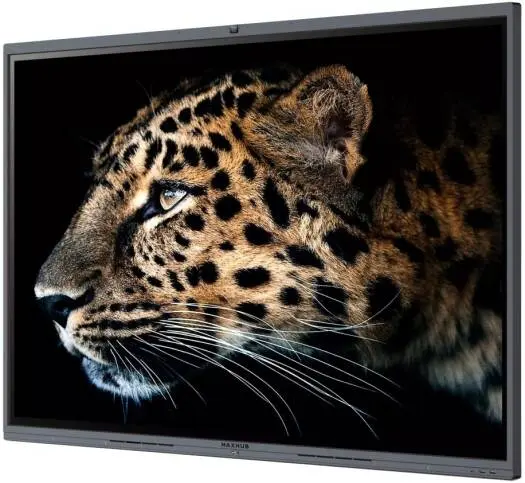

MAXHUB V6 Classic Series C8630 | 86" 4K UHD Interactive Display | 20 Touch Points | 48MP Camera | 2.1 Channel Audio | Black
The MAXHUB V6 Classic Series C8630 is a premium 86-inch interactive flat panel display designed to redefine collaboration, communication, and creativity. With an ultra-clear 4K UHD IPS panel, advanced infrared touch technology, and integrated video conferencing capabilities, it empowers smarter meetings and more engaging classroom interactions.
Equipped with a built-in 48MP camera, 8-microphone array, and 2.1-channel audio system, the C8630 delivers exceptional audiovisual clarity for hybrid learning and enterprise conferencing. Its 90% NTSC color gamut, 350-nit brightness, and anti-glare antibacterial glass ensure vibrant visuals and durability even in well-lit spaces.
The V6 Classic is compatible with multiple operating systems including Windows, Android, macOS, and Linux, and integrates smoothly into any workspace through its OPS slot and Wi-Fi module. Engineered for 16-hour daily operation, it’s a perfect fit for classrooms, boardrooms, and creative studios seeking reliable, high-quality interactive performance.
Key Features
86" 4K UHD Display (3840 × 2160) – Crisp and detailed visuals with wide 178° viewing angle.
IR Touch Technology – Up to 20 touch points for collaborative annotation and interaction.
48MP Built-in Camera – Delivers ultra-high-resolution visuals for online meetings.
2.1 Channel Speakers (2×10W + 20W Subwoofer) – Immersive sound for presentations and conferencing.
8-Microphone Array – Beam-forming far-field pickup with up to 8-meter voice range.
90% NTSC Color Accuracy – True-to-life color reproduction ideal for visual collaboration.
3mm Anti-Glare Antibacterial Glass – Provides clarity, hygiene, and durability.
OPS Slot Support – Expand functionality with OPS PC modules (MT61, SI06).
Seamless Connectivity – HDMI, USB-C, RS232, Audio Out, and Wi-Fi module integration.
Cross-Platform Compatibility – Works with Windows, Android, Linux, Mac, and Chrome OS.
Energy Efficient – ≤0.5W standby, <400W maximum power consumption.
Specifications
| Category | Details |
| Model | MAXHUB V6 Classic Series C8630 |
| Display Size | 86 inches |
| Resolution | 3840 × 2160 (4K UHD) |
| Panel Type | VA, Direct-lit LED |
| Brightness (Typ.) | 350 cd/m² |
| Contrast Ratio | 1,200:1 |
| Response Time | 8 ms |
| Viewing Angle | 178° (H/V) |
| Color Gamut | 90% NTSC |
| Operation Hours | 16/7 |
| Touch System | Infrared (IR), Up to 20 Touch Points |
| Glass | 3mm Anti-Glare, Antibacterial |
| Built-in Camera | 48MP Single Camera |
| Microphone Array | 8× Beam-forming Mics (8m Range) |
| Speakers | 2.1 Channel (2×10W + 20W Subwoofer) |
| Inputs | HDMI In ×1, USB 2.0 ×1, USB 3.0 ×2, USB Type-C ×2, TOUCH 2.0 ×1 |
| Outputs | Audio Out ×1 |
| Control Ports | RS232 ×1 |
| Connectivity | Wi-Fi Module, OPS Slot (3840×2160 @ 60Hz) |
| Power Supply | AC 100–240V, 50/60Hz |
| Max Power Consumption | 400W |
| Standby Power | ≤0.5W |
| Dimensions (W×H×D) | 1957.1 × 1160.1 × 100.2 mm |
| Net Weight | 59.75 kg |
| Color | Black |
| Mounting | VESA 800×600 mm, M8×25 mm Screws |
| Included Accessories | Power Cord, Wi-Fi Adapter, 2× Passive Stylus, Wall Mount, Type-C Cable (1.8m) |
