Product Description

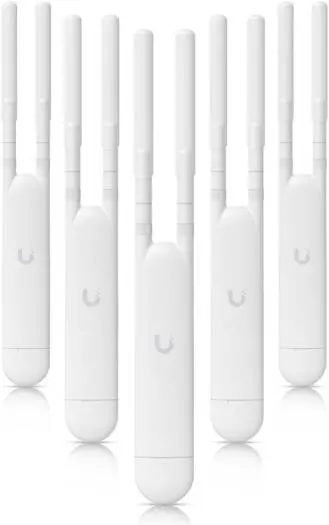

Ubiquiti AC Mesh Access Point – WiFi 5, Pack of 5 (UAP-AC-M-5)
The AC Mesh (UAP-AC-M-5) from Ubiquiti is a compact, high-performance WiFi 5 (802.11ac) access point designed for indoor and outdoor deployments. With 4 spatial streams, mesh capability, and support for external antennas, it delivers flexible coverage and reliable performance for high-density environments.
This 5-pack is ideal for building scalable UniFi networks across offices, campuses, warehouses, retail spaces, cafés, hotels, and outdoor areas.
Key Features
WiFi 5 (802.11ac) with 4 spatial streams
Up to 867 Mbps wireless data rate
Coverage up to 140 m² (1,500 ft²) per AP
Supports 200+ concurrent clients
Indoor / Outdoor rated design
Mesh networking support (wireless uplink)
Optional external antenna support for directional coverage
PoE powered (24V passive PoE or 802.3af with adapter)
Centralized management via UniFi Network
Flexible Mesh & Outdoor Deployment
The AC Mesh is built for environments where running Ethernet is difficult or impossible. Using UniFi Mesh technology, access points can wirelessly uplink to each other, making it easy to extend coverage across outdoor courtyards, parking areas, light poles, or large indoor spaces.
External antenna support allows you to:
Focus coverage in specific directions
Extend range along corridors, streets, or open areas
Optimize signal strength in challenging RF environments
Enterprise-Grade Performance
Dual-band 2×2 MU-MIMO on both 2.4 GHz and 5 GHz
Advanced QoS & per-user rate limiting
Guest traffic isolation & VLAN support
Up to 4 BSSIDs per radio
Stable performance even with 200+ connected devices
Perfect for high-traffic networks where consistency matters.
Technical Highlights
Max Data Rate:
2.4 GHz: 300 Mbps
5 GHz: 867 Mbps
Antenna Gain:
2.4 GHz: 3 dBi
5 GHz: 4 dBi
Power: PoE (Passive 24V or 44–57V DC)
Max Power Consumption: 8.5W
Mounting: Wall, pole, fast-mount (included)
Operating Temp: -30°C to 70°C
