Product Description
MSI B860 Gaming Plus WiFi – High-Performance ATX Motherboard for Next-Gen Intel® Core™ Ultra CPUs
The MSI B860 Gaming Plus WiFi is engineered to deliver exceptional performance, stability, and connectivity for modern gaming rigs and productivity systems. Powered by the Intel® B860 chipset and supporting the latest Intel® Core™ Ultra processors (Series 2) on LGA1851, this motherboard offers incredible speed and future-ready features in an affordable, reliable platform.
With support for DDR5 memory up to 8800+ MT/s, PCIe 5.0 x16, and triple M.2 slots including an ultra-fast PCIe 5.0 M.2 slot, it ensures lightning-fast data throughput and responsiveness for gaming, content creation, and multitasking.
The board also comes equipped with Wi-Fi 7, Bluetooth 5.4, Thunderbolt™ 4, and Realtek® 5Gbps LAN, giving you all the high-speed networking and connectivity options you need. The optimized cooling design, EZ Debug LEDs, and intelligent layout make building and upgrading your PC incredibly easy and efficient.
Whether you're assembling a next-gen gaming PC or a high-performance workstation, the MSI B860 Gaming Plus WiFi delivers the perfect balance of power, features, and reliability.
 Specifications
| Category | Details |
| Model | MSI B860 Gaming Plus WiFi (911-7E41-003) |
| Chipset | Intel® B860 |
| CPU Support | Intel® Core™ Ultra Processors (Series 2), LGA 1851 |
| Memory Support | 4× DDR5 UDIMM, up to 256GB |
| DDR5 Speeds | 8800–6400 MT/s (OC), 6400–4800 MT/s (JEDEC) |
| Memory Features | XMP 3.0, Dual-Channel, Non-ECC, CUDIMM supported |
| Integrated Graphics Outputs | HDMI 2.1 (4K @60Hz), DisplayPort 1.4 (4K @60Hz), USB-C DP Alt Mode / Thunderbolt 4 (8K @60Hz or 4K @120Hz)* |
| PCIe Slots | 4 × PCIe x16 slots (1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 2× PCIe 4.0 x1) |
| M.2 Slots | 3 × M.2: (1× PCIe 5.0 x4 CPU, 1× PCIe 4.0 x4, 1× PCIe 4.0 x2) |
| SATA Ports | 4 × SATA 6Gb/s |
| RAID Support | RAID 0/1/5/10 (SATA only) |
| Thunderbolt | 1 × Thunderbolt 4 port (rear), up to 40Gbps, supports daisy-chaining |

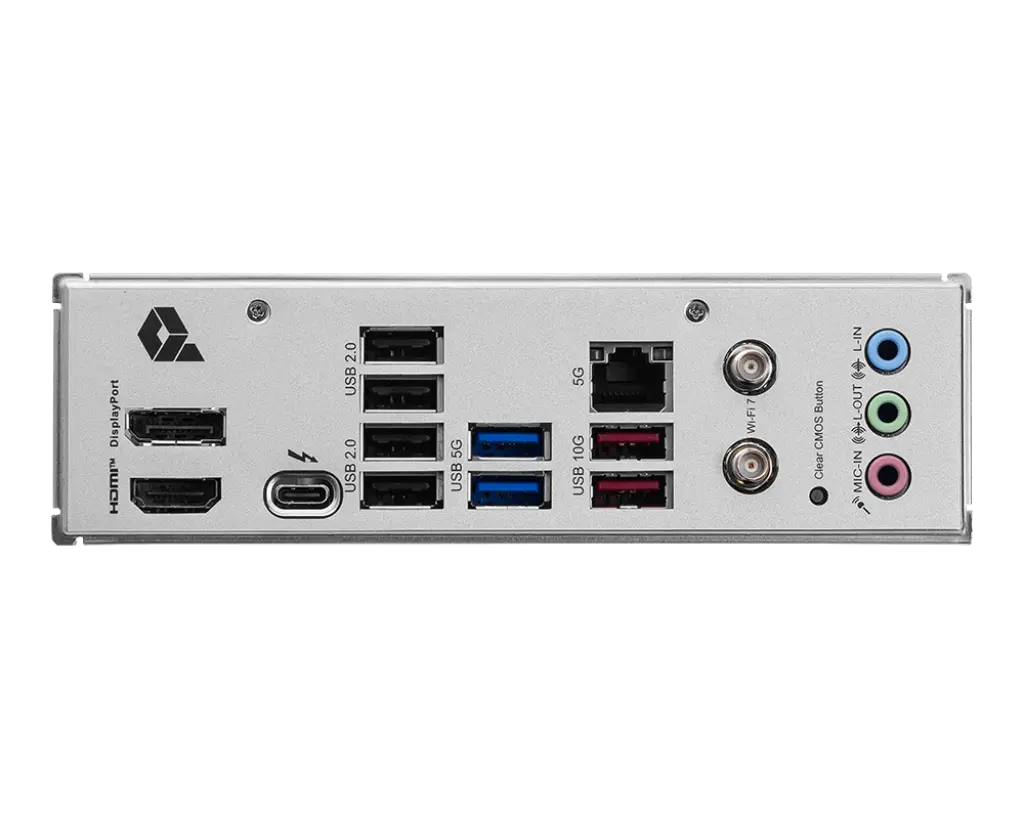

| USB (Rear I/O) | 4× USB 2.0, 2× USB 5Gbps Type-A, 2× USB 10Gbps Type-A |
| USB (Front I/O) | 4× USB 2.0, 4× USB 5Gbps, 1× USB 10Gbps Type-C |
| LAN | Realtek® 8126 5Gbps LAN |
| Wireless | Intel® Wi-Fi 7, MU-MIMO, 2.4/5/6 GHz, up to 5.8Gbps |
| Bluetooth | Bluetooth® 5.4 |
| Audio | Realtek® ALC897, 7.1-Channel HD Audio |
| Internal Connectors | CPU & system fan headers, ARGB Gen 2 headers, RGB header, TPM, chassis intrusion, COM, JAUD |
| Debug | 4 × EZ Debug LED |
| Extra Power Connectors | 1× 24-pin ATX, 2× 8-pin CPU, 1× PCIe 8-pin |
| Expansion | Thunderbolt 5 card connector (JTBT5) |
| Form Factor | ATX |
