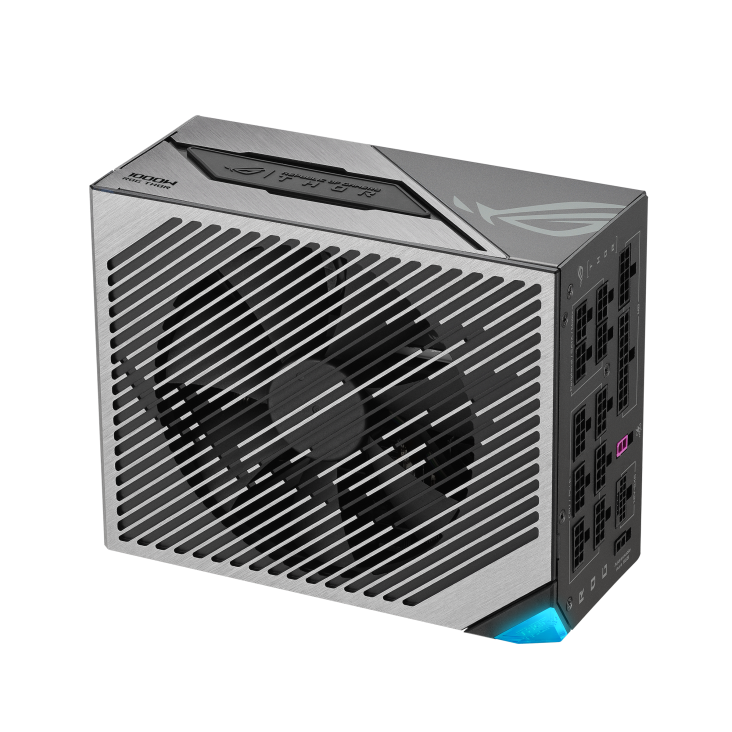

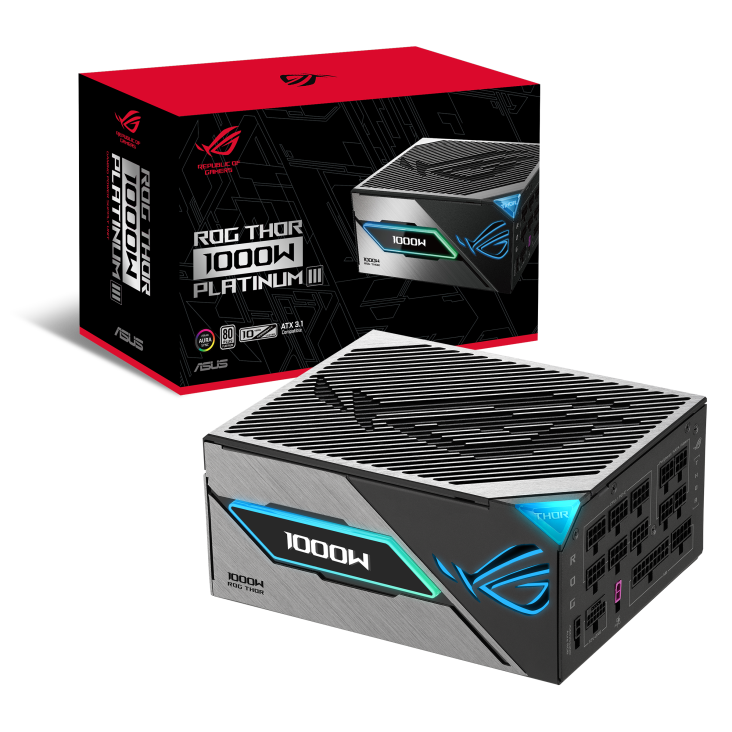

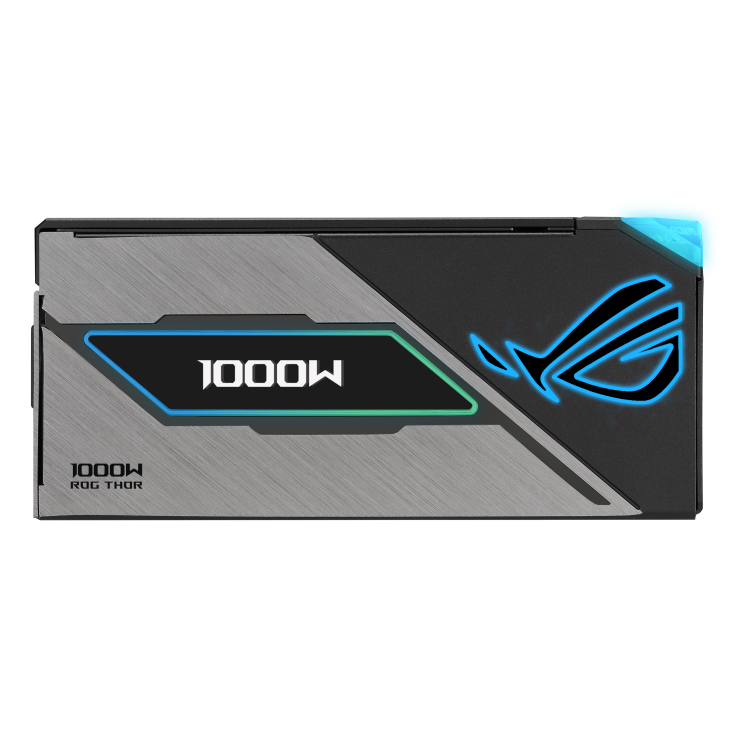

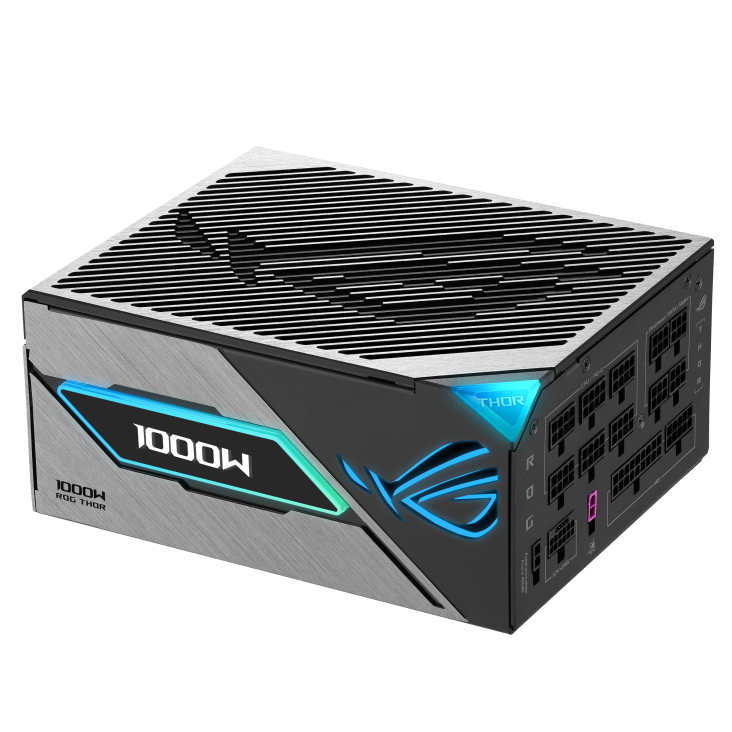

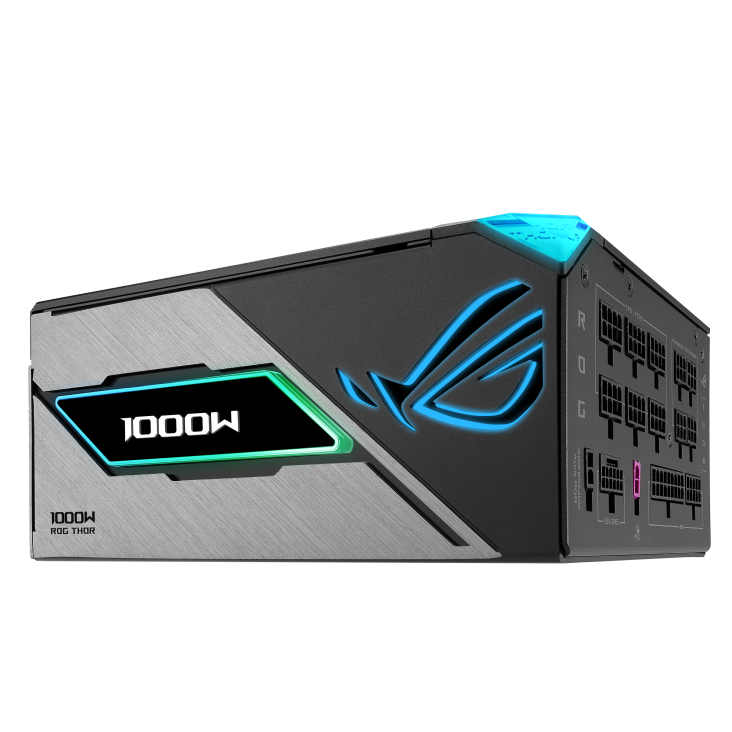

ROG THOR 1000P3 GAMING (90YE00V3-B0NA00)

The ROG THOR 1000P3 GAMING is a premium 1000 W ATX 3.1 PSU with 80 PLUS Platinum efficiency, GaN MOSFETs, advanced voltage stabilization, and a magnetic OLED panel for real-time power monitoring.

• Total Power: 1000 W
• Efficiency: 80 PLUS Platinum
• Form Factor: ATX 3.1 • Fully modular
• Cooling: 135 mm Axial-tech PWM fan • 0 dB mode • Dual ball bearing
• Protections: OPP • OVP • UVP • OCP • SCP • OTP
• Special Features: GaN MOSFETs • GPU-first voltage stabilizer • Turbo mode • Magnetic OLED display • Premium sleeved cables
• Connectors: 1 × 24-pin ATX • 2 × 4+4-pin EPS • 1 × 16-pin PCIe • 4 × 6+2-pin PCIe • 7 × SATA • 6 × Peripheral
• Dimensions (L × W × H): 190 × 150 × 86 mm
• Weight: ~2.37 kg
• MTBF: >120,000 hours @ 25 °C
• AC Input: 100–240 Vac
• DC Output (Max Load): +3.3 V: 30 A • +5 V: 25 A • +12 V: 83.3 A (1000 W) • −12 V: 0.3 A • +5Vsb: 3 A
