Product Description

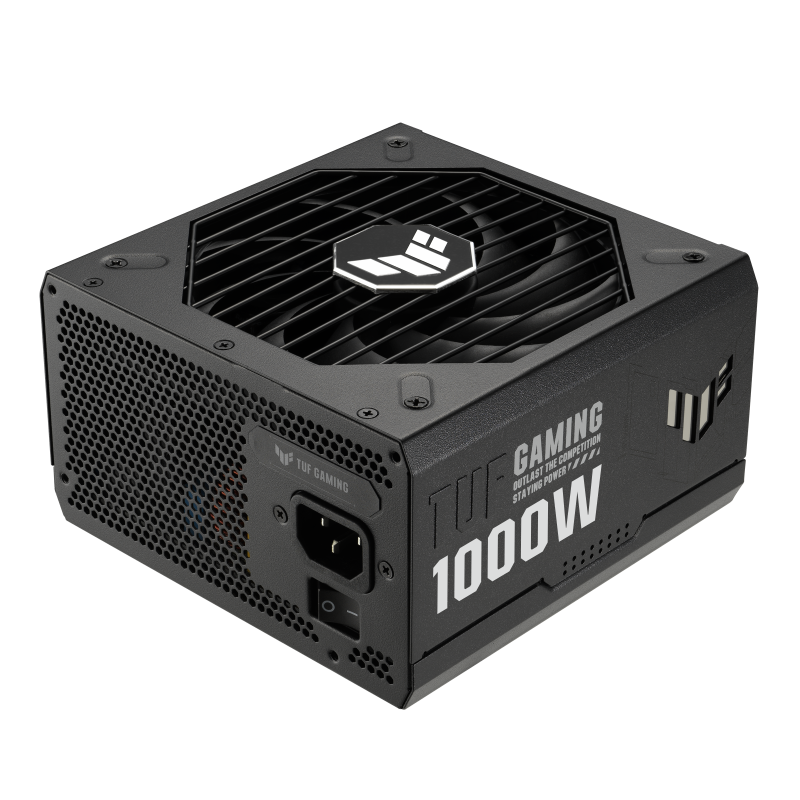

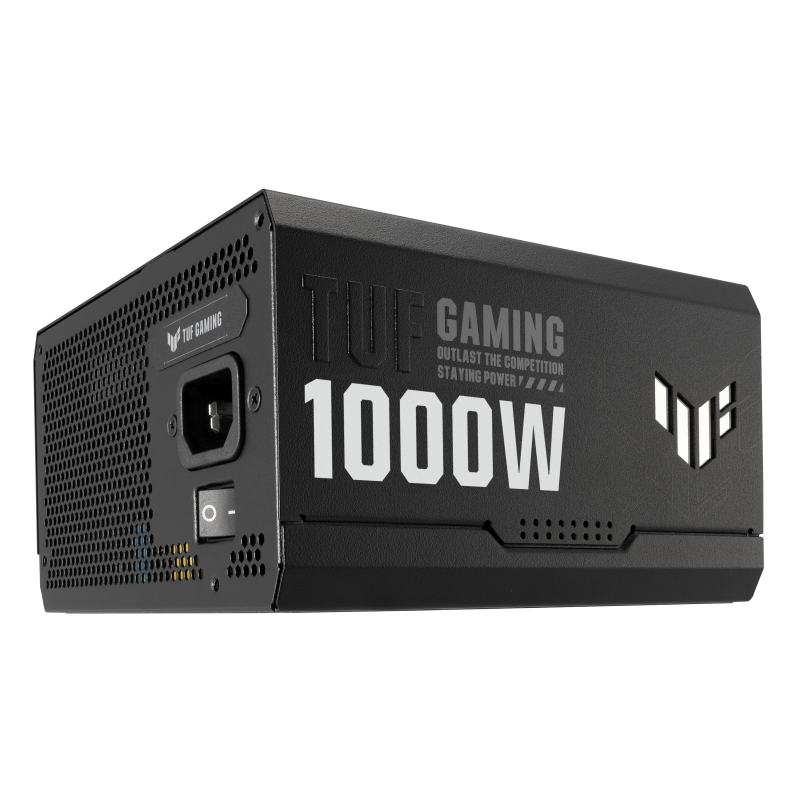

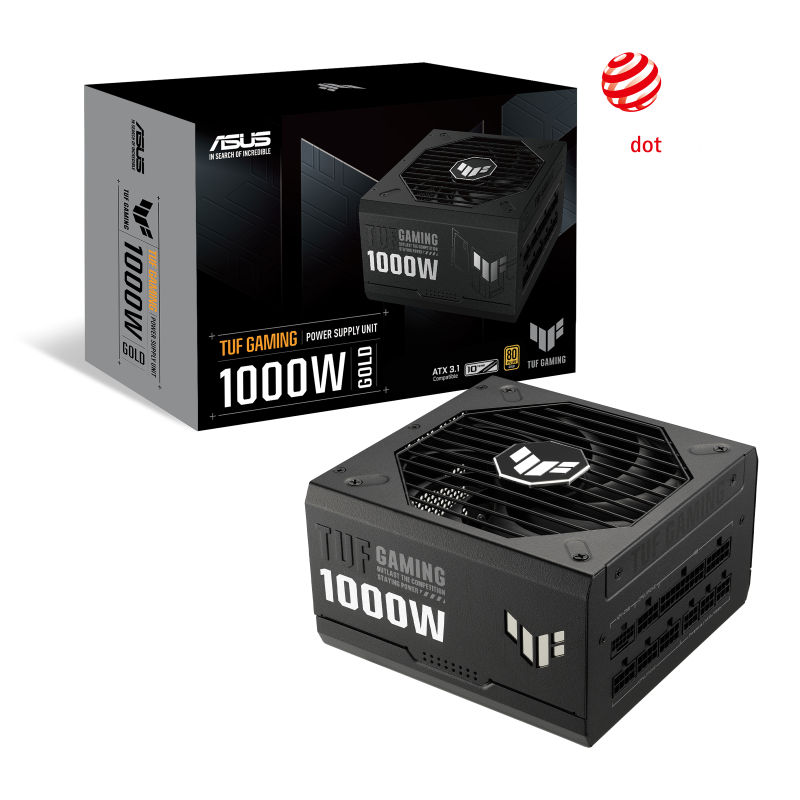

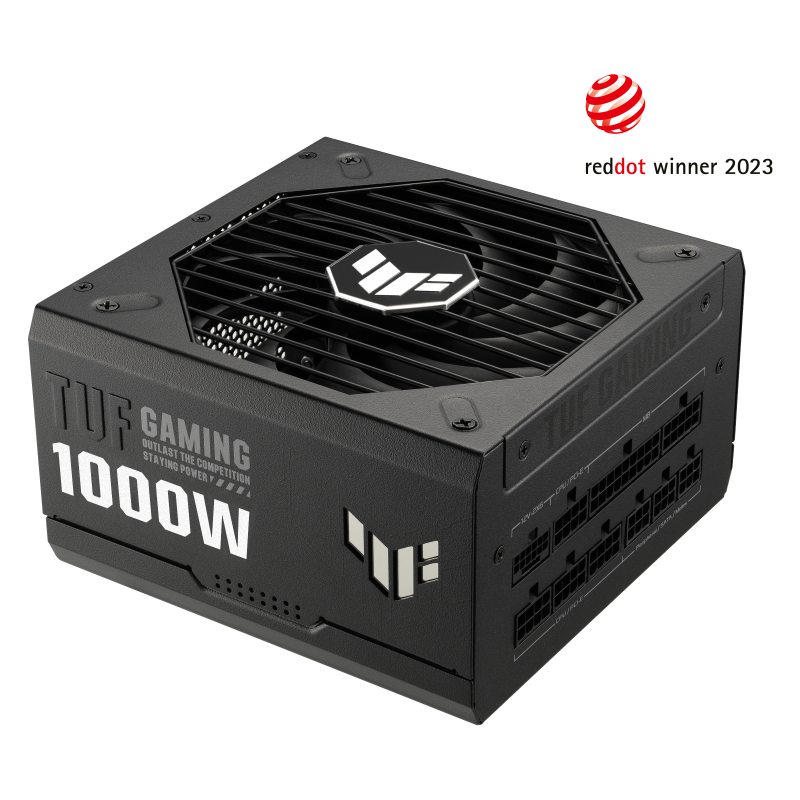

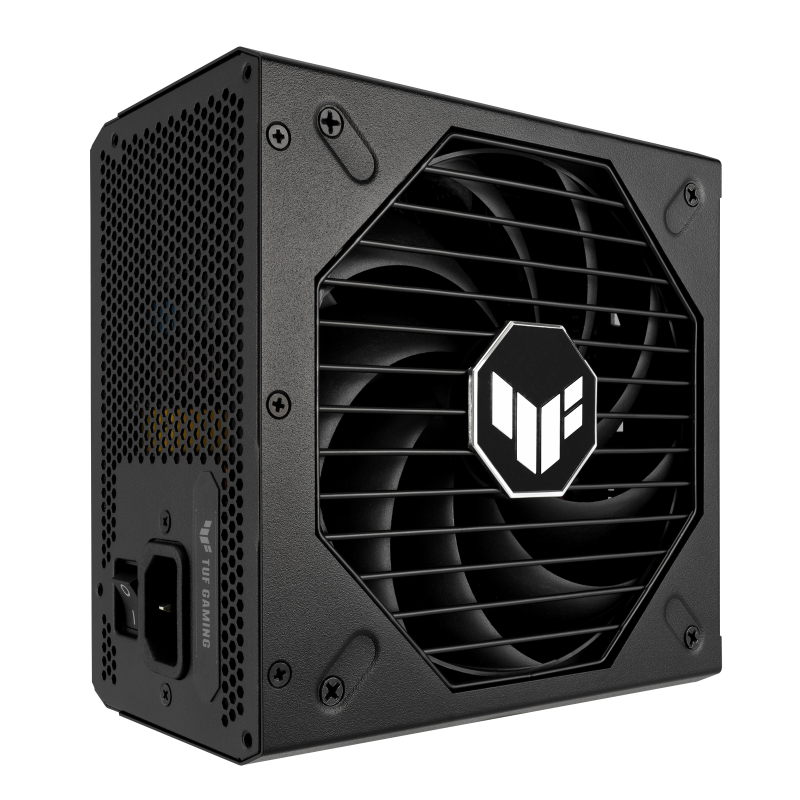

TUF GAMING 1000G (90YE00S1-B0NA00)
The TUF GAMING 1000G is a durable 1000 W ATX PSU with 80 PLUS Gold efficiency, ATX 3.1 readiness, military-grade components, and fully modular cabling for clean, reliable builds.
- Total Power: 1000 W
- Efficiency: 80 PLUS Gold
- Form Factor / Standard: ATX • ATX 3.1 compatible
- Cooling: 135 mm dual ball-bearing fan • 0 dB mode
- Protections: OPP • OVP • UVP • OCP • SCP • OTP
- Special Features: Military-grade capacitors • Protective PCB coating • Fully modular cables
- Connectors:
- 1 × 24/20-pin ATX
- 2 × 4+4-pin EPS (CPU)
- 1 × 16-pin PCIe (12VHPWR, up to 600 W)
- 4 × 8-pin PCIe (6+2)
- 5 × SATA
- 4 × Peripheral (Molex)
- Dimensions (L × W × H): 150 × 150 × 86 mm
- MTBF: >120,000 hours
- AC Input: 100–240 Vac
- DC Output (Max Load): +3.3 V: 25 A • +5 V: 25 A • +12 V: 83.3 A (≈1000 W) • −12 V: 0.8 A • +5Vsb: 3 A
- Combined Loads: +3.3 V & +5 V = 130 W • +12 V = 1000 W
