Product Description

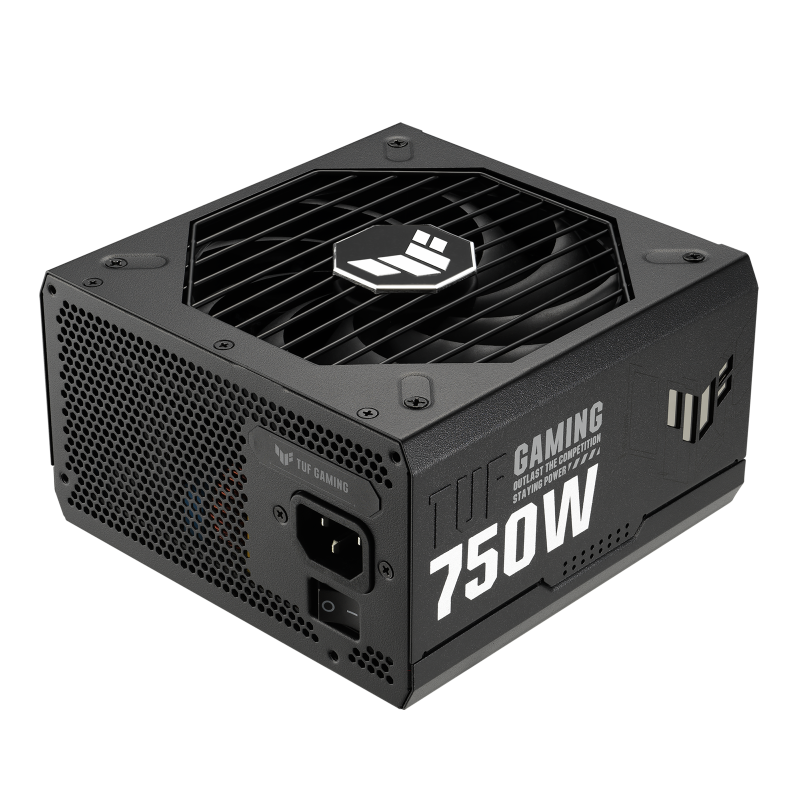

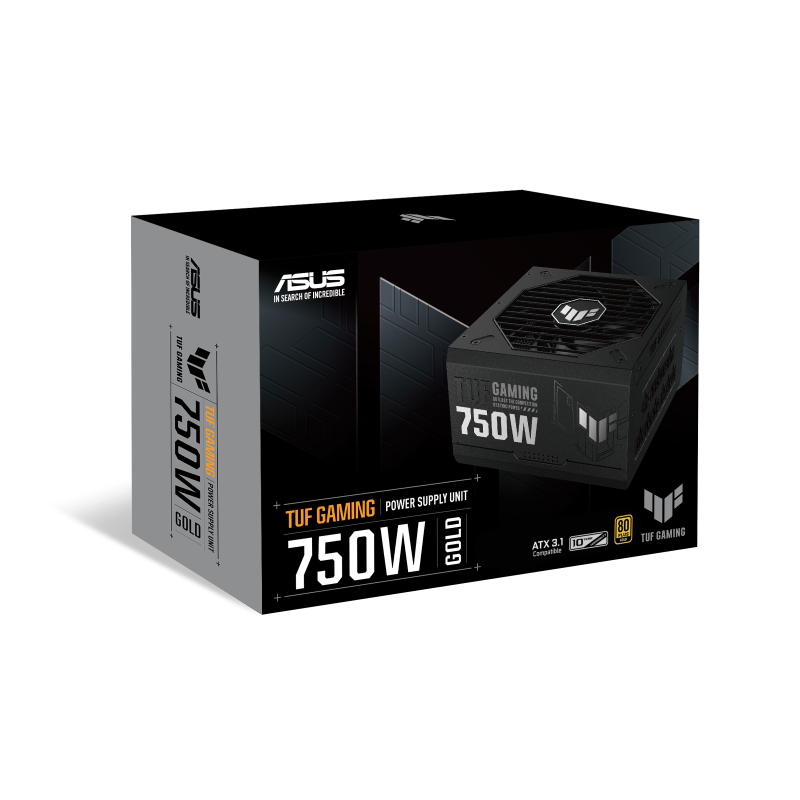

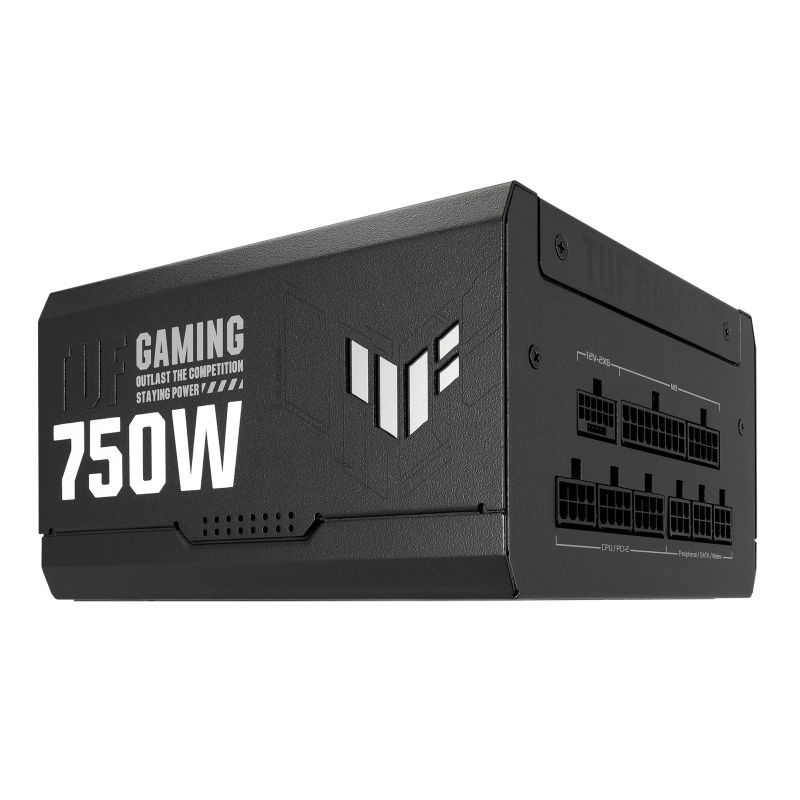

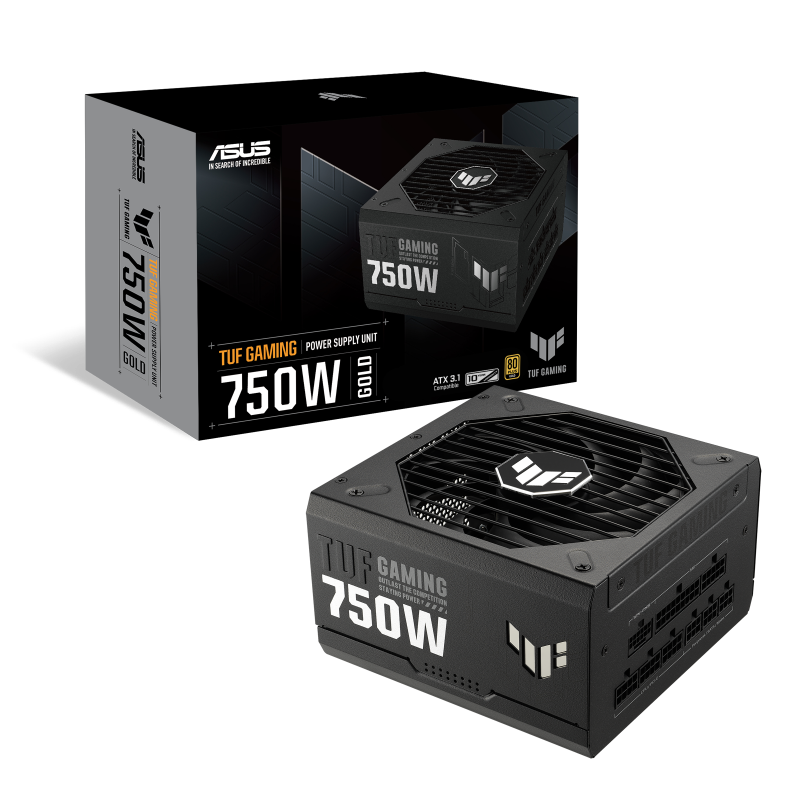

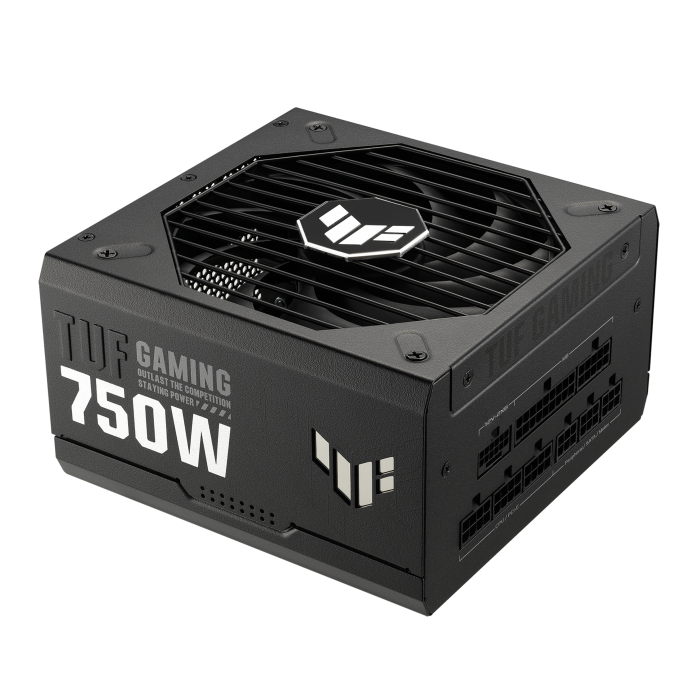

TUF GAMING 750G (90YE00S3-B0NA00)
The TUF GAMING 750G is a 750 W ATX PSU with 80 PLUS Gold efficiency, military-grade components, full modular cabling and robust protections — designed for stable mid-to-high end gaming systems.
- Total Power: 750 W
- Efficiency: 80 PLUS Gold
- Form Factor / Standard: ATX • ATX 3.0 / 3.1 compatible
- Cooling: 135 mm fan • 0 dB mode (fan may stop under light load)
- Protections: OPP • OVP • UVP • OCP • SCP • OTP
- Special Features: Military-grade capacitors • Protective PCB coating • Fully modular design
- Connectors:
- 1 × 24/20-pin ATX
- 2 × 4+4-pin EPS (CPU)
- 1 × 16-pin PCIe (for high power GPUs)
- 3 × 6+2-pin PCIe
- 5 × SATA
- 4 × Peripheral (Molex)
- Dimensions (L × W × H): 150 × 150 × 86 mm
- Weight: ~1.98 kg
- MTBF: >120,000 hours
- AC Input: 100–240 Vac
- DC Output (Max Load): +3.3 V: 25 A • +5 V: 25 A • +12 V: 62.5 A (≈750 W) • −12 V: 0.8 A • +5Vsb: 3 A
- Combined Loads: +3.3 V / +5 V = 130 W • +12 V = 750 W
