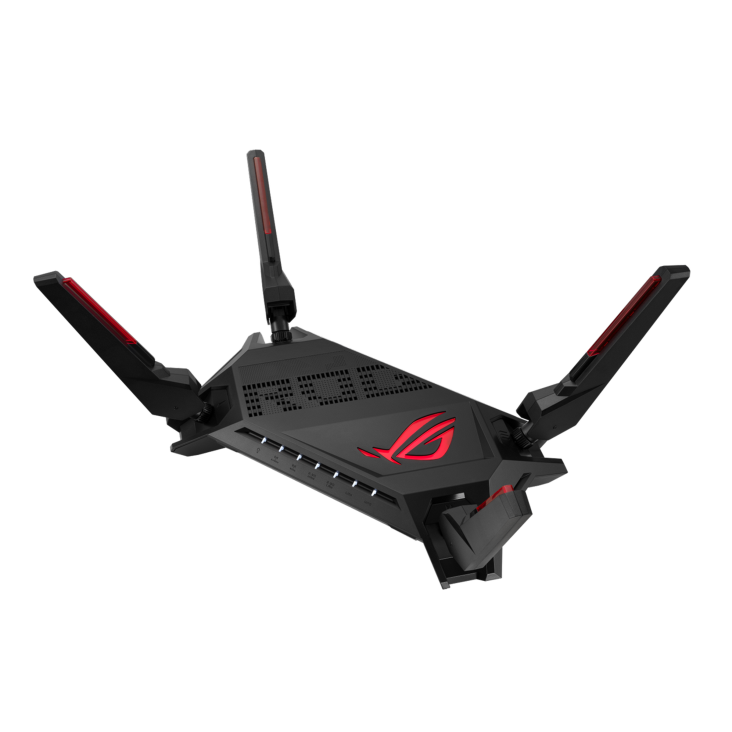

ROG Rapture GT-AX6000

Built specifically with gaming enthusiasts in mind, the ROG Rapture GT-AX6000 Wireless Dual-Band 2.5G Gaming Router from ASUS is designed to help minimize latency while delivering high responsiveness. This 802.11ax dual-band router can transfer up to 5952 Mb/s over the 5 GHz and 2.4 GHz bands with compatible devices, using RangeBoost Plus technology to provide far-reaching coverage.

• High-Efficiency WiFi 6 – Ultrafast WiFi 6 dual-band router boosts speed up to 6000 Mbps, with 160 MHz channels for better efficiency and throughput.
• Dual 2.5G Ports – Traffic via 2.5G ports has top priority; flexible WAN/LAN network port configurations.
• Extreme Quad-Core CPU Power – High-performance 2.0 GHz quad-core 64-bit CPU takes computational capabilities to the next level.
• Expanded coverage – The exclusive ASUS RangeBoost Plus improves signal range and overall coverage.
• Triple-Level Game Acceleration – Accelerate game traffic every step of the way from device to game server.

Beyond Performance

GT-AX6000 is powered by a 2.0 GHz quad-core 64-bit CPU, giving it the performance to handle even the most demanding gaming network. It delivers maximum network throughput by 18%* for lightning-fast, accelerating data transfers and optimizing your gaming experience.

Expanded Coverage with RangeBoost Plus

ASUS RangeBoost Plus is the latest, most powerful version of our renowned RangeBoost technology, which can improve the coverage and WiFi performance significantly compare to other models without RangeBoost. By using a next-gen flagship Broadcom WiFi chipset and CPU, combined with ASUS RF technology and other exclusive ASUS technologies, RangeBoost Plus leverages multiple upgraded ASUS features that improve WiFi signal range and overall coverage by up to 38%*.

Whole-Home coverage

ASUS AiMesh gives you the flexibility to create a true whole-home WiFi network. You can put your old ASUS AiMesh-compatible router to good use as a mesh node to broaden your network's coverage to eliminate dead spots, and bring superfast, reliable WiFi to your entire home.

3-Step Port Forwarding

Join your clan smoothly and quickly GT-AX6000's OpenNAT feature, with only three steps needed to configure port forwarding. Say goodbye to frustrating and complicated procedures!

Game console Prioritisation

GT-AX6000 plays great with any game consoles, including PS5®, Xbox X® and Nintendo Switch®. Instantly prioritise a console by connecting it to the dedicated Gaming Port. No complex configuration is needed, just connect your console to the special LAN-1 port for a fast, stable connection that's always at the head of the queue.

Specifications

Product Segment

AX6000 ultimate AX performance

AX technology

Yes

Data Rate

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps

5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Antenna

External antenna x 4

Transmit/Receive

2.4 GHz 4 x 4

5 GHz 4 x 4

Processor

2.0 GHz quad-core processor

Memory

256 MB Flash, 1 GB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access), Beamforming: standard-based and universal, 1024-QAM high data rate, 20/40/80/160 MHz bandwidth,

Operating Frequency

2.4G Hz / 5 GHz

Ports

RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, RJ45 for 2.5 Gigabits BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, USB 2.0 x 1

Button

WPS Button, Reset Button, Power Button, LED Control Button

LED Indicator

Power x 1 2.4GHz x 1 5GHz x 1 2.5G WAN x 1 2.5G LAN x 1 LAN x 1 WPS x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 2.37 A current or 19.5 V with max. 2.31 A current
