RT-AX5400

AX5400 Dual Band WiFi 6 (802.11ax) Extendable Router, Included built-in VPN, AiProtection Pro Network Security, Parental Control, Instant Guard, AiMesh-Compatible

• High Efficiency WiFi 6 – This ultrafast WiFi 6 router delivers up to 5,400 Mbps speed, with increased capacity to handle more devices.
• Powerful WAN Aggregation – Blazing bonded WAN speeds up to 2 Gbps deliver reliable internet connectivity for smart homes and small businesses.
• Commercial-grade Security Anywhere – Protect your home network with AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.
• Advanced Parental Controls– Protect your kids online with instant monitoring, content filters and customized settings for each connected device, at no extra cost.
• Easy Extendable Network – Enjoy seamless roaming with rich, advanced features by adding any AiMesh-compatible router.

Specifications

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

Product Segment

AX5400 ultimate AX performance : 574+4804 Mbps

AX technology

Yes

Antenna

External antenna x 4 (non-detachable)

Processor

1.5 GHz tri-core processor

Memory

256 MB Flash 512 MB RAM

Boosts speed

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth

Operating Frequency

2.4G Hz / 5 GHz

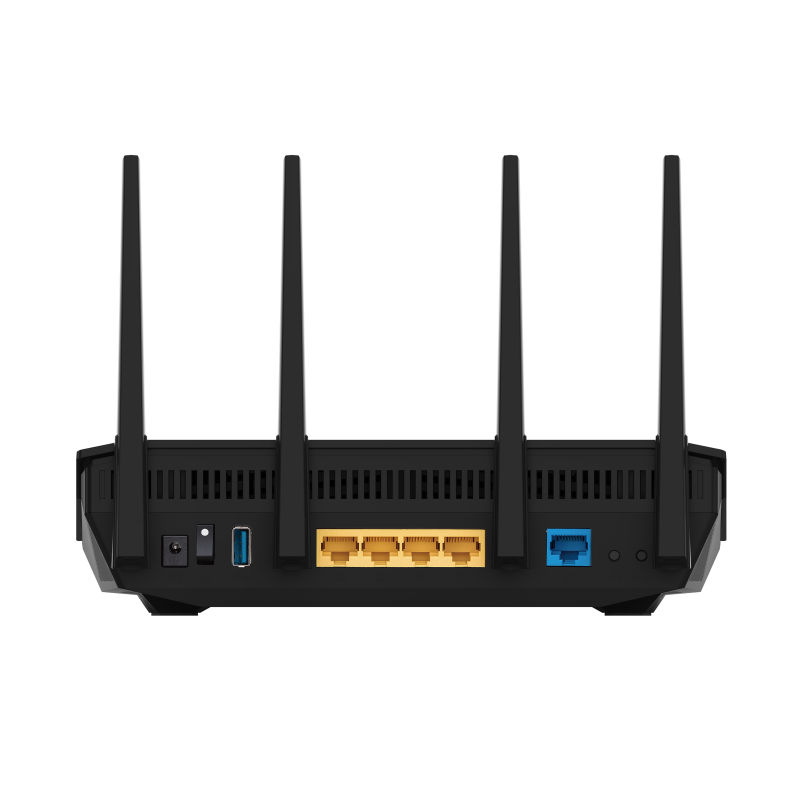

Ports

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 USB 3.2 Gen 1 x 1

Button

WPS Button, Reset Button, Power Switch

LED Indicator

Power x 1 2.4G x 1 5G x 1 LAN x 4 WAN x 1

Power Supply

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 1.75 A current

Package content

RT-AX5400 WiFi router RJ-45 cable Power adapter Quick Start Guide Warranty card

Product Weight (g)

612.4g

AiMesh

AiMesh

Primary AiMesh router

AiMesh node

Router APP

ASUS Router APP

Alexa

Support Alexa skill

AiProtection

AiProtection Pro

AiProtection

Malicious site blocking

Two-Way IPS

Infected Device Prevention and Blocking

Parental Control

Parental Control

Parental Control Customized Internet schedule

Traffic Control

Adaptive QoS

Bandwidth Monitor

Bandwidth limiter

Maximum Bandwidth limiter rule : 32

Traditional QoS

Maximum Traditional QoS rule : 32

Traffic Monitor

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic Analyzer

Traffic analysis period : Daily, Weekly, Monthly

Website history

Wireless

IPv6

MU-MIMO

Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support

UTF-8 SSID

Guest Network

Maximum Guest Network rule : 2.4GHz x3, 5GHz x3

Guest Network Connection time limit

Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

WPS

WiFi MAC address filter

Maximum MAC filters : 64

Wireless scheduler

Airtime fairness

RADIUS Client

Universal beamforming

Explicit beamforming

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Dual WAN

WAN Aggregation

3G/4G LTE dongle

Android tethering

Port forwarding

Maximum port forwarding rule : 64

Port triggering

Maximum port triggering rule : 32

DMZ

DDNS

NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

Let's Encrypt

Safe browsing

DNS-over-TLS

LAN

DHCP Server

IPTV

LAN Link Aggregation

Manually assign IP address

Maximum manually assign IP address rule : 64

VPN

Instant Guard

VPN Client L2TP

VPN Client OVPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server OVPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4

3G/4G LTE dongle

Safely Remove disk

AiCloud

Download master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder privileges

Administration

Operating mode : Wireless router mode Access point mode Media bridge mode Repeater mode AiMesh node mode

Operating system : ASUSWRT

Free OS upgrade

Firewall

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

SSH

Wake on LAN (WOL)

Configuration backup and restore

Diagnosis tools

Feedback system

System log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Security Scan

Auto Firmware Update
