Product Description

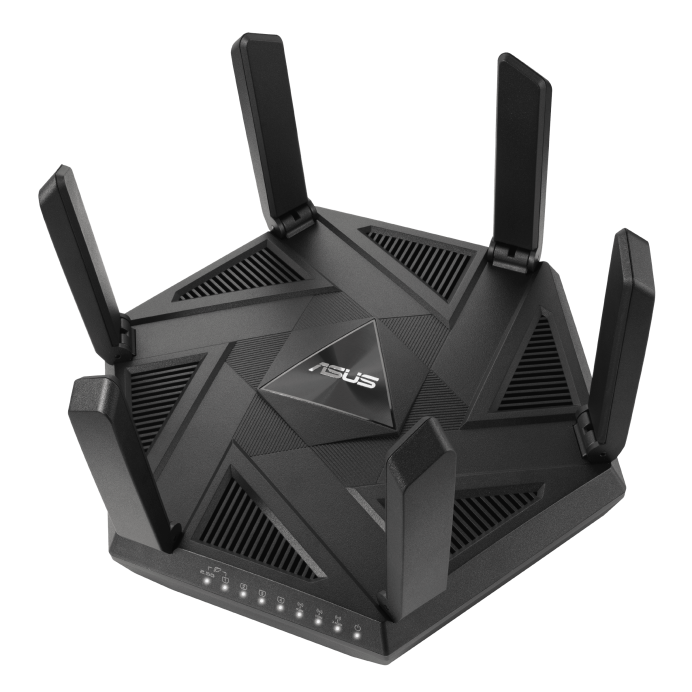

RT-AXE7800
AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation
Â
- Ultra-fast WiFi 6E Technology – The whole-new 6 GHz band dramatically increases network capacity, delivering higher WiFi performance and more stable connectivity with speeds up to 7800 Mbps.
- One-Tap Safe Browsing – Block undesirable content with ASUS Safe Browsing, and protect your kids online by filtering explicit content from search results.
- Enhanced Security Anywhere – Protect your home network with a free lifetime subscription to AiProtection Pro, powered by Trend Micro™. And when away from home, ASUS Instant Guard gives you a one-click sharable secure VPN.
- Free Parental Controls – More flexible customizations to protect your kids online.
- AiMesh Supported – Expand your wireless network with ASUS AiMesh-compatible routers and enjoy powerful, flexible and seamless whole-home WiFi.
Â
Â
Specifications
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 6E (802.11ax)
IPv4
IPv6
Product Segment
AXE7800 ultimate AX performance : 574+4804+2402 Mbps
AX technology
Yes
Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps
WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps
Antenna
External antenna x 6 (non-detachable)
Transmit/Receive
2.4GHz 2x2
5GHz 4x4
6GHz 2x2
Processor
1.7GHz quad-core processor
Memory
256 MB Flash and 512 MB DDR4 RAM
Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz
Ports
1 x 2.5G Mbps for WAN/LAN
1 x RJ45 10/100/1000Mbps for WAN/LAN
3 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen 1 Port
Button
Power on/off switch
Reset Button
WPS Button
LED Indicator
Power x 1
2.4GHz x 1
5GHz x 1
6HGz x 1
2.5G WAN/LAN1 x 1
1G WAN/LAN1 x 1
1G LAN x 3
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output: 12 V with max. 3.0 A current
Package content
RT-AXE7800 WiFi Router
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
1033g
AiMesh
AiMesh
Primary AiMesh router
AiMesh node
Router APP
ASUS Router APP
Alexa
Support Alexa skill
AiProtection
AiProtection Pro
AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
Parental Control
Parental Control
Parental Control Customized Internet schedule
Maximum Parental Control profile : 64
Maximum Parental Control content filter rule : 64
Traffic Control
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
Maximum Bandwidth limiter rule : 32
Traditional QoS
Maximum Traditional QoS rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
Traffic analysis period : Daily, Weekly, Monthly
Website history
Wireless
IPv6
MU-MIMO
Wi-Fi Encryption : WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
UTF-8 SSID
Guest Network
Maximum Guest Network rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3
Guest Network Connection time limit
Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS
WPS
WiFi MAC address filter
Maximum MAC filters : 64
Wireless scheduler
Airtime fairness
RADIUS Client
Universal beamforming
Explicit beamforming
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G/4G LTE dongle
Android tethering
Port forwarding
Maximum port forwarding rule : 64
Port triggering
Maximum port triggering rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay
Let's Encrypt
Safe browsing
DNS-over-TLS
LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually assign IP address
Maximum manually assign IP address rule : 64
VPN
Instant Guard
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
3G/4G LTE dongle
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
Administration
Operating mode : Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
Operating system : ASUSWRT
Free OS upgrade
Firewall
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
SSH
Wake on LAN (WOL)
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Security Scan
Auto Firmware Update
4-8 Days Delivery Globally
We offer express delivery worldwide for ASUS RT-AXE7800 Triband WiFi6E Router, 6GHz, 2.5G Port, 7800Mbps, Instant Guard, Parental Control, VPN, AiMesh, Smart Home | 90IG07B0-MU9B00.
Best Price Guarantee
We offer the best price for ASUS RT-AXE7800 Triband WiFi6E Router, 6GHz, 2.5G Port, 7800Mbps, Instant Guard, Parental Control, VPN, AiMesh, Smart Home | 90IG07B0-MU9B00 . Buy now with the best price!
General SpecificationsÂ
Brand
ASUS
Shipping Weight
1.60 Kg
Model
RT-AXE7800
Shipping Dimensions
11.00 cm x 26.50 cm x 26.51 cm
