Samsung QBC Series Digital Signage – 24"

Key Highlights

• Screen Size: 24 inches

• Resolution: Full HD (1920 × 1080)

• Panel Type: ADS (Advanced Super Dimension Switch – similar to IPS)

• Operation Time: 16 hours per day / 7 days a week

• Bezel Width: Top/Bottom 17.9 mm, Left/Right 9.4 mm

• Color: Black

• Design: Slim and professional, optimized for business use

Display Specifications

• Resolution: Full HD (1920 × 1080)

• Panel Type: ADS (wide viewing angles, accurate color reproduction)

• Brightness: 250 nits (typical)

• Contrast Ratio: 1000:1 (static)

• Response Time: 14 ms

• Viewing Angles: 178° (H) / 178° (V)

• Color Gamut: 72% NTSC

• Haze: 25% (anti-glare surface)

• Refresh Rate: 60 Hz

• Supported Orientation: Landscape

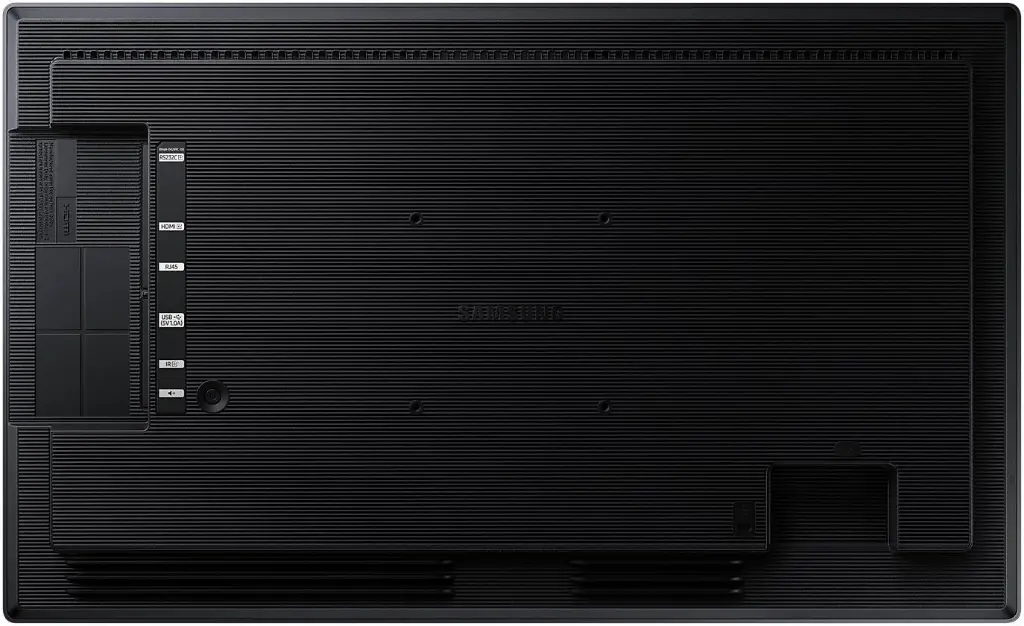

Connectivity & Ports

• HDMI: 2 × HDMI 2.0

• USB: 1 × USB 2.0

• RS-232C: In/Out available

• RJ45 (LAN): Yes

• Audio Out: Stereo mini-jack

• IR Input: Yes

Smart & Software

• Operating System: Tizen 7.0 (Smart Signage Platform)

• Internal Storage: 8 GB

• Features:

  • Built-in media player for direct content playback

  • Remote management and scheduling

  • Content mirroring and Wi-Fi/LAN control (varies with configuration)

Mechanical & Physical Specs

• Dimensions (W × H × D): ~542.4 × 319.6 × 44.8 mm

• Package Dimensions: ~630 × 415 × 110 mm

• Weight (Set): ~4.2 kg

• Weight (Packaged): ~5.6 kg

• Bezel Width: Top/Bottom 17.9 mm, Left/Right 9.4 mm

• Mounting Standard: VESA 100 × 100 mm

• Frame Finish: Black, slim modern design

Power & Environmental

• Power Supply: AC 100-240V, 50/60Hz

• Power Consumption (On): ~25 W (typical)

• Power Consumption (Standby): <0.5 W

• Operating Temperature: 0°C to 40°C

• Operating Humidity: 10% to 80% (non-condensing)

Strengths

• Compact 24" size, perfect for retail, kiosks, small meeting spaces, or menu boards

• Full HD resolution with ADS panel for better color and wide viewing

• Slim bezels for clean, professional installations

• 16/7 operation time — reliable for continuous daily business use

• Energy-efficient with low power consumption

• Lightweight and easy to mount

Considerations

• Not designed for 24/7 continuous use (limited to 16/7)

• Brightness (250 nits) is suitable for indoor use but not ideal for very bright or sunlit areas

• Response time (14 ms) is higher compared to premium displays — less suitable for fast-motion content

Ideal Applications

• Retail signage (price displays, product highlights)

• Restaurants and cafes (digital menu boards)

• Corporate lobbies and offices

• Education environments (classroom displays)

• Small meeting and collaboration spaces

• Information boards in public areas
