Product Description

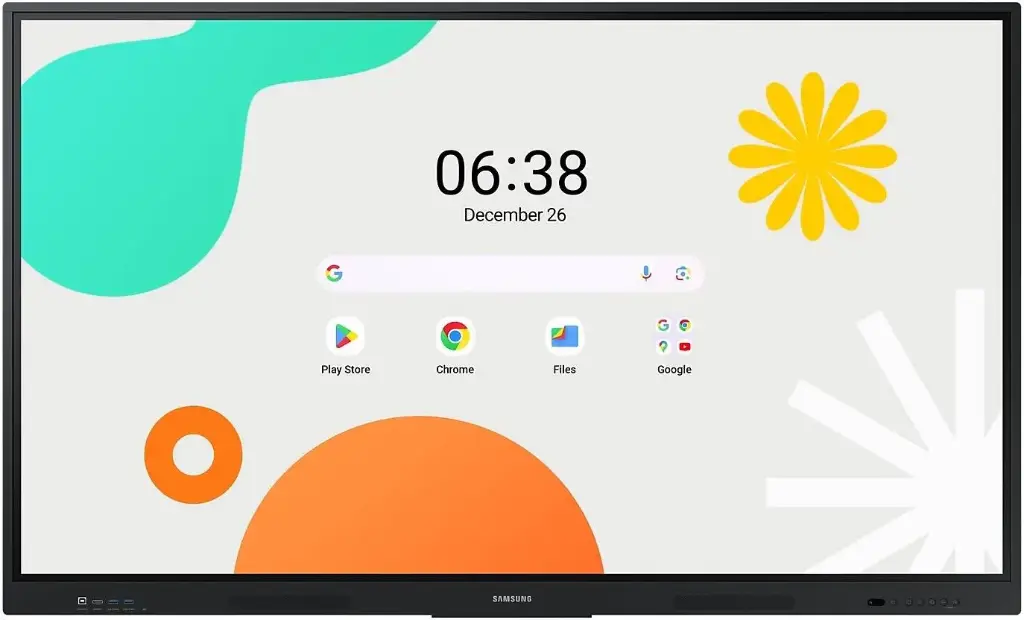

Samsung WAF Series 86" 4K UHD Interactive Touch Display, IR Touch, Android 14, 64GB Flash, Wi-Fi & Bluetooth, Aluminum Frame, Black | LH86WAFWLGCXUE
Overview
The Samsung WAF Series 86" Interactive Display redefines collaboration and engagement with cutting-edge touchscreen technology, a brilliant 4K UHD IPS panel, and the latest Android 14 OS. Designed for both educational and professional environments, it combines crystal-clear visuals, intuitive touch response, and powerful connectivity in a sleek, durable aluminum frame.
With Wi-Fi 5, Bluetooth, and multi-port I/O, the WAF Series empowers interactive learning, business presentations, and real-time teamwork—making it the ultimate all-in-one display solution.
Key Features
Immersive 4K UHD Visuals (3840 × 2160): Stunning color accuracy and detail for classrooms, boardrooms, and digital signage.
Smooth IR Touch Performance: Ultra-responsive 8 ms touch with precision for writing, drawing, and interactive presentations.
Powerful Android 14 Platform: Fast, secure, and intuitive performance with 64 GB of internal flash storage.
Seamless Connectivity: Built-in Wi-Fi 5 and Bluetooth plus dual HDMI 2.1, USB 4-port hub, and RJ45 network support.
Premium Design: Modern black aluminum frame with ultra-slim 17.2 mm bezels blends style and durability.
Reliable 12/7 Operation: Optimized for continuous professional use in educational, retail, and enterprise settings.
Energy Efficient: Intelligent power management with Class B efficiency and low standby consumption (0.5 W).
Specifications
| Category | Specification |
| Brand | Samsung |
| Model | WAF Series – LH86WAFWLGCXUE |
| Display Size | 86 inches |
| Panel Type | IPS |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typ.) | 400 nits |
| Contrast Ratio | 1,200 : 1 |
| Response Time | 8 ms |
| Viewing Angle (H/V) | 178° / 178° |
| Color Gamut | 72 % NTSC |
| Glass Haze | 25 % |
| Touch Technology | IR (Infrared Touch) |
| Touch Support | Yes |
| Operating System | Android 14 |
| Flash Memory | 64 GB |
| Connectivity | HDMI In (2 × 2.1 HDCP 2.1), USB (× 4), Audio In/Out (Stereo Mini Jack), Video Out, RS232, RJ45 |
| Wireless Connectivity | Wi-Fi 5 (802.11ac), Bluetooth |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 493 W (On), 0.5 W (Sleep) |
| Dimensions (W×H×D) | 1961.8 × 1170 × 87.7 mm |
| Package Dimensions | 2095 × 1265 × 185 mm |
| Weight (Net / Package) | 62.5 kg / 74.1 kg |
| VESA Mount | 800 × 600 mm |
| Bezel Width / Color | 17.2 mm / Black |
| Frame Material | Aluminum |
| Operating Conditions | Temp: 0 – 40 °C / Humidity: 10–80 % RH (non-condensing) |
| Certifications | EMC: FCC Part 15, EN55032 / Safety: IEC62368-1, UL62368-1 |
| Operation Time | 12 hours per day / 7 days a week |
