Product Description

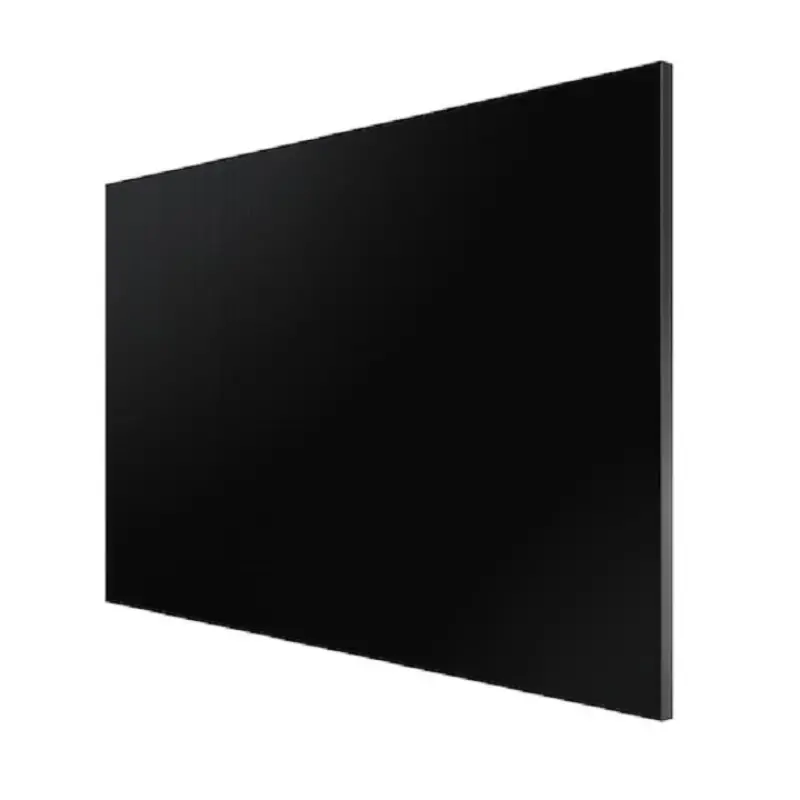

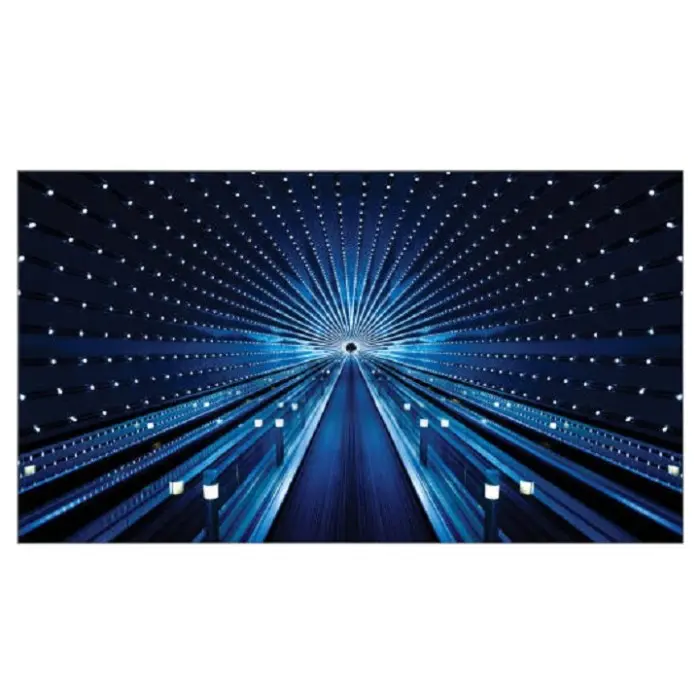

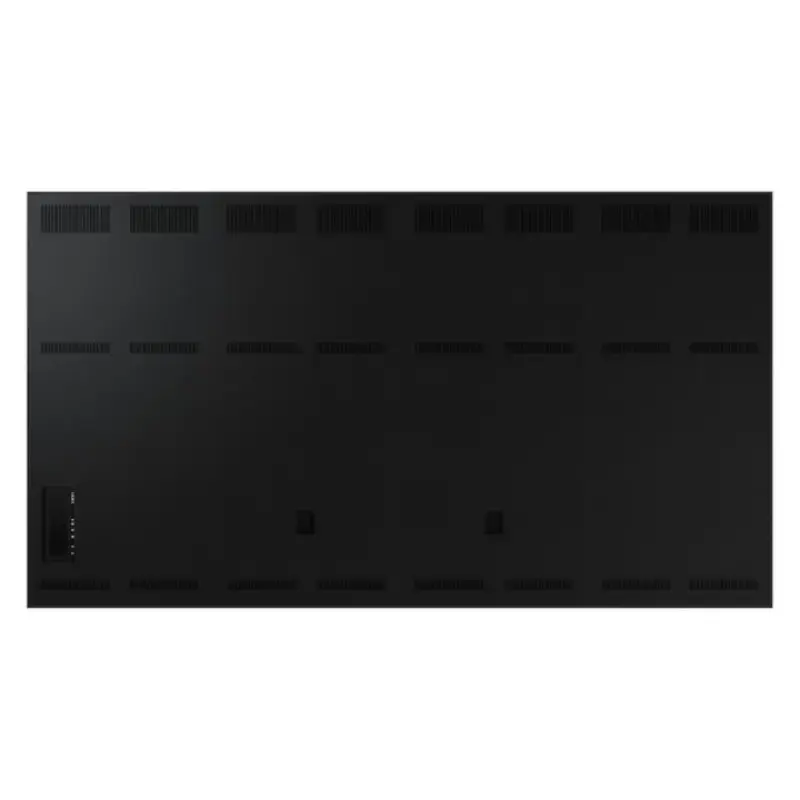

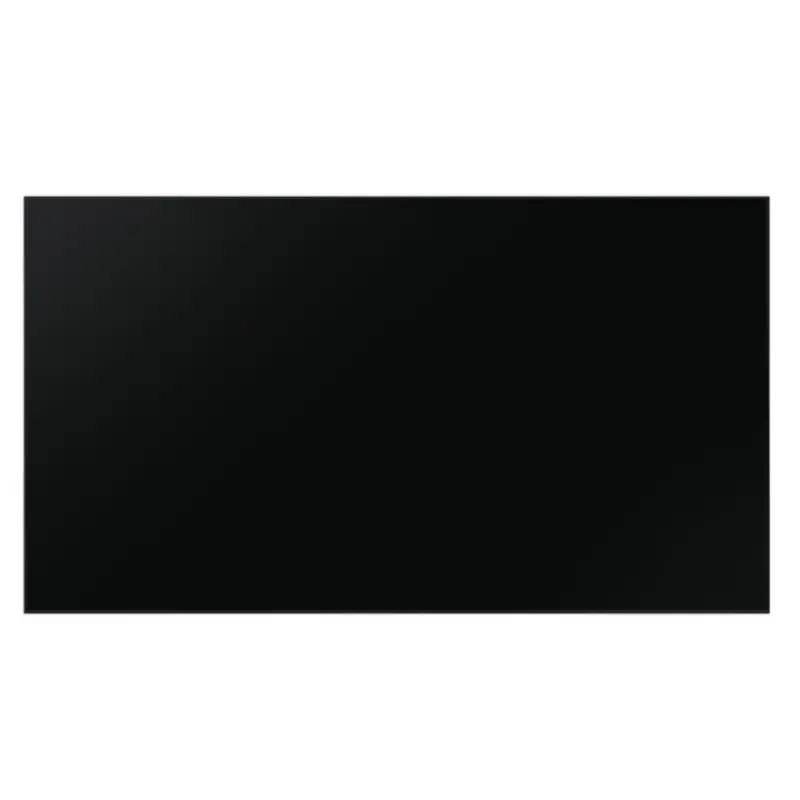

Samsung The Wall 146" 4K All-in-One LED Display
The Samsung The Wall 146" 4K All-in-One LED Display represents one of the most advanced large-format visual technologies in the world. With an exceptionally fine 0.84mm pixel pitch, premium flip-chip RGB LED, and a truly bezel-less modular design, it delivers unmatched clarity, deep contrast, and luxurious visual performance suitable for high-end boardrooms, control centers, retail flagships, and luxury environments.

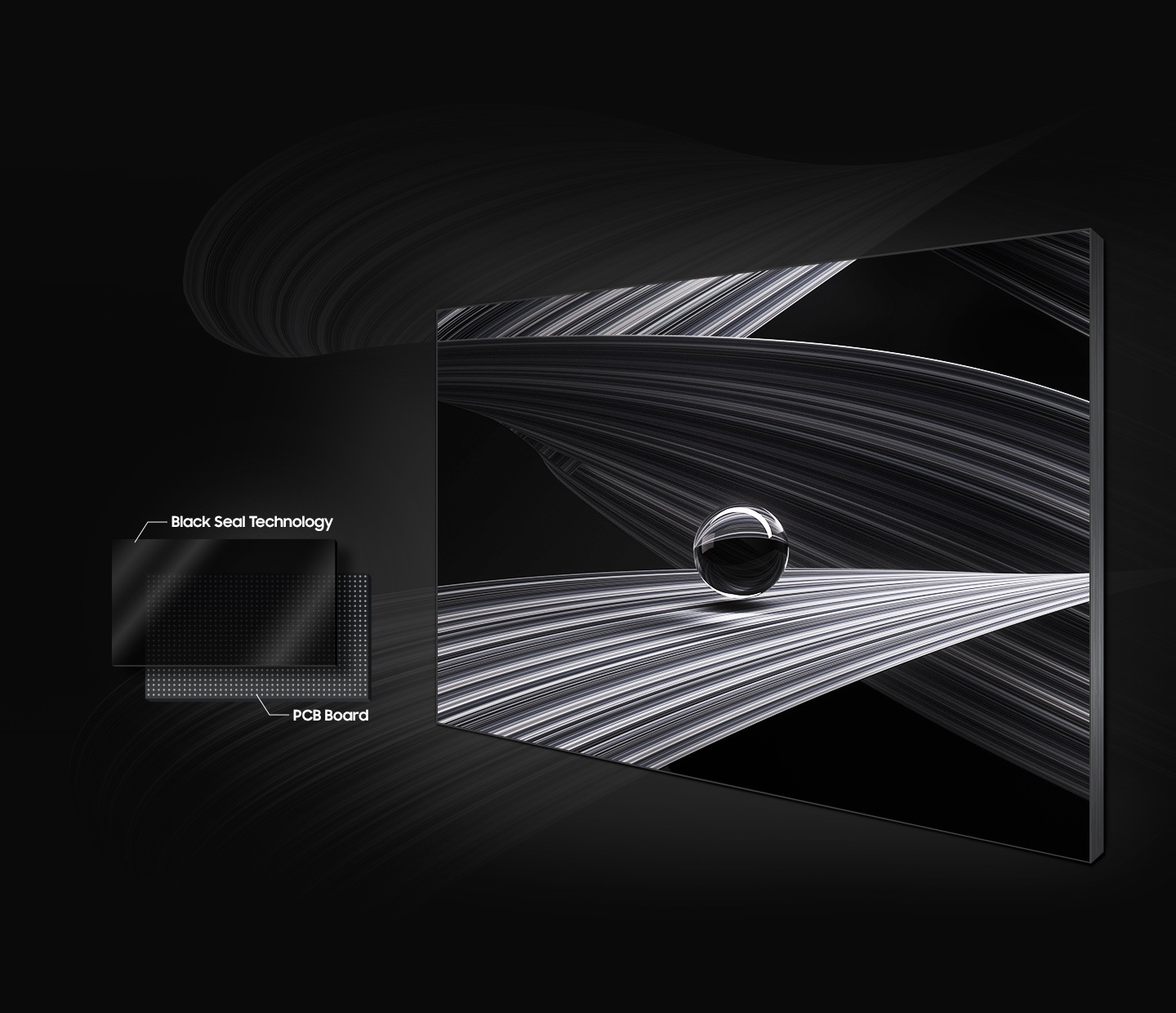

Designed to provide cinematic image accuracy, The Wall offers 500-nit brightness, an ultra-high 7000:1 contrast ratio, wide 170°/155° viewing angles, and a super-smooth 120Hz video rate with a 3840Hz refresh rate. Engineered with global safety and EMC certifications, it guarantees durability, precision, and professional reliability under demanding 24/7 installations.
An all-in-one LED solution that combines elegance, extreme detail, and next-generation display engineering.
Adopt a new paradigm for your business

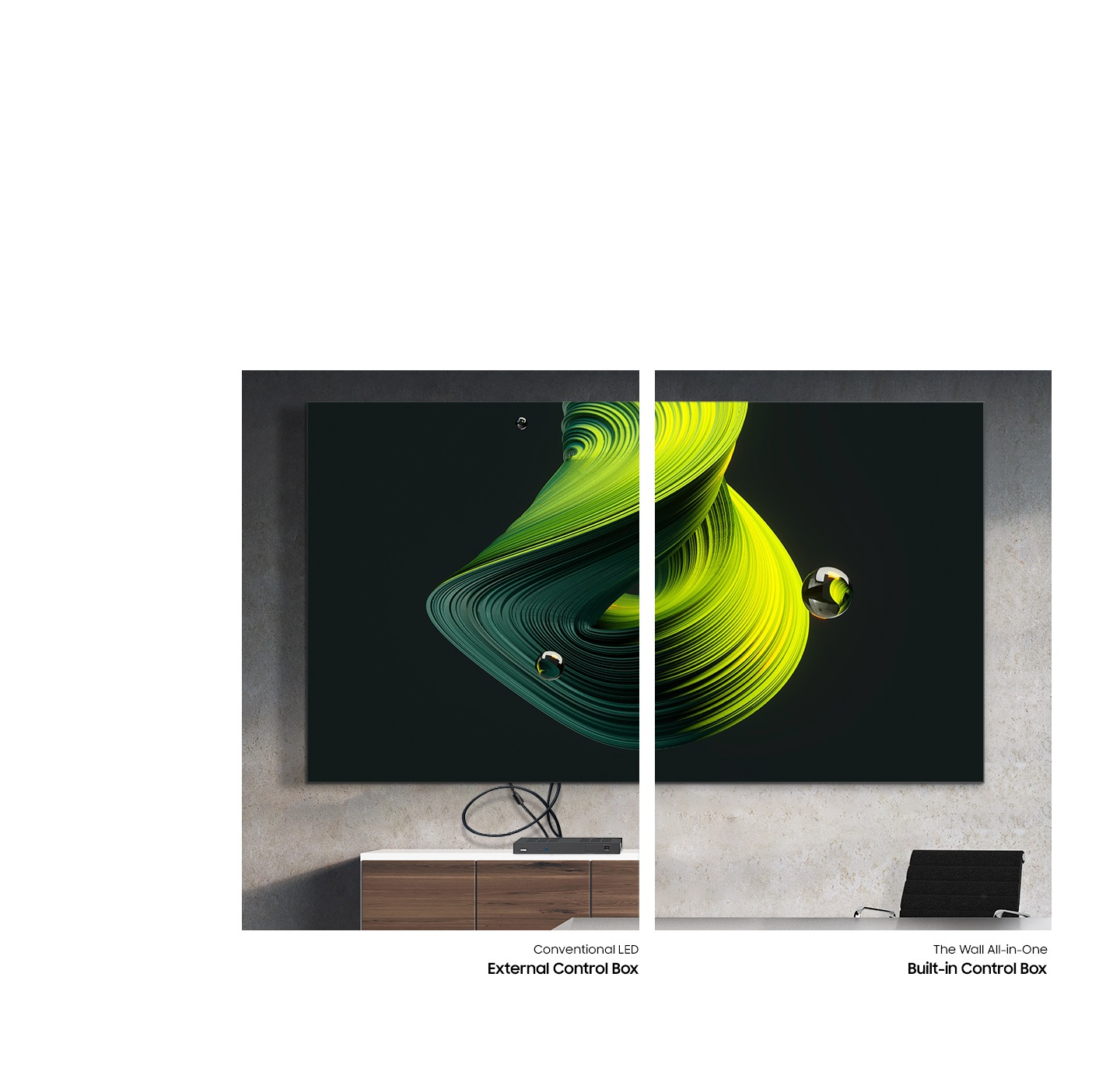

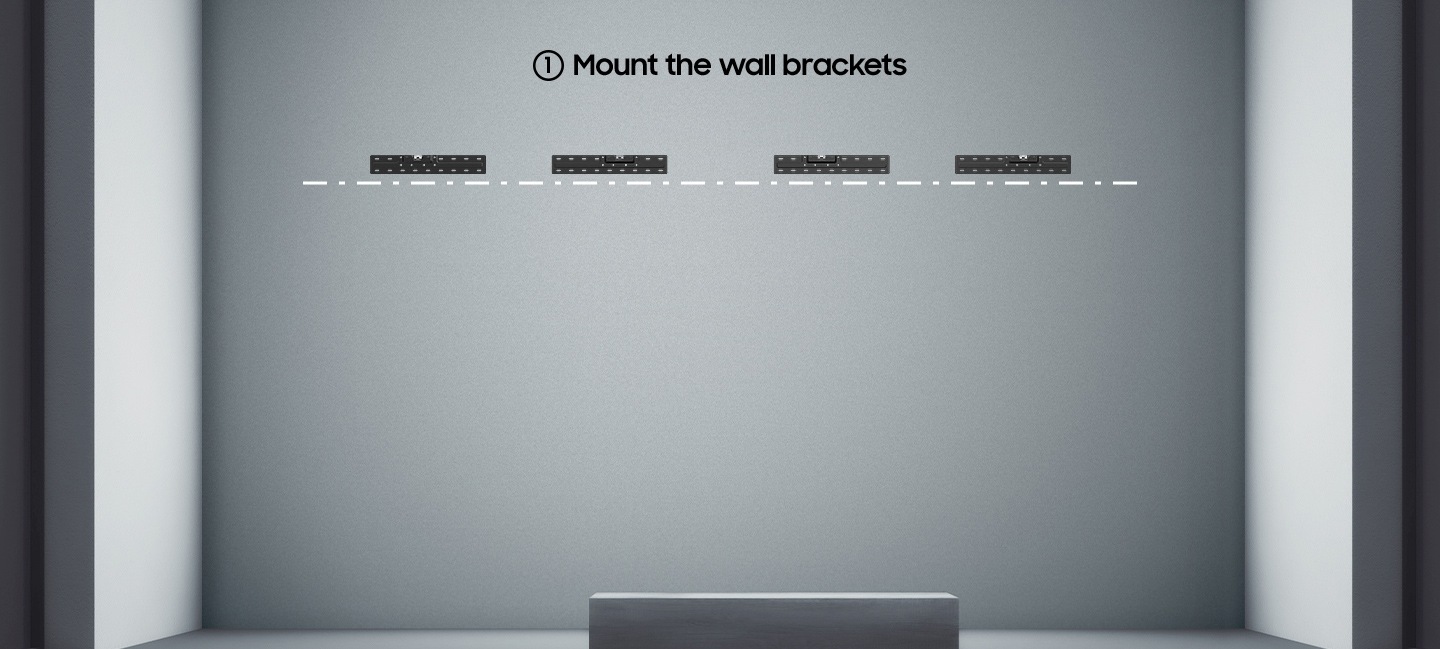

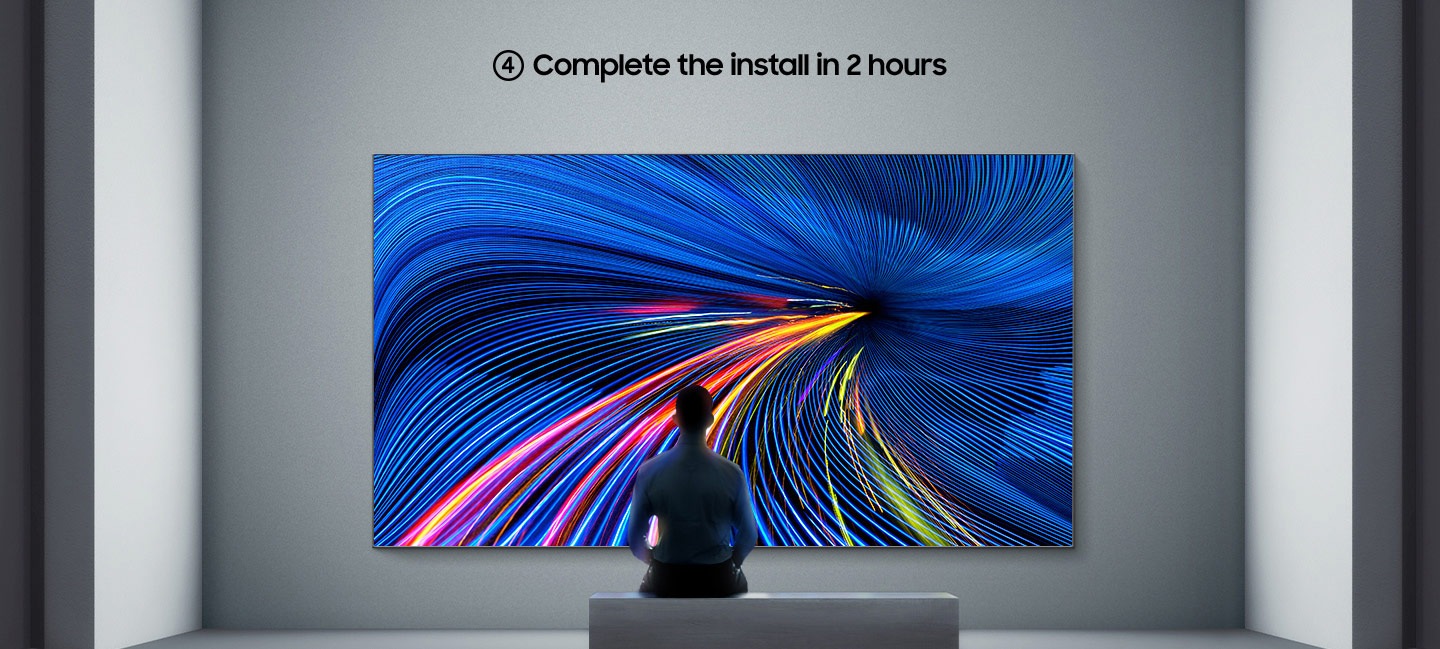

The Wall is the epitome of innovation. It constantly delivers new avenues to create unparalleled visual statements. Redefining the LED paradigm once again, The Wall now solves the biggest challenge of industry, drastically improving installation. The Wall, let it transform your business.
Specifications
| Category | Specification |
| Model | LH008IABMUS/UE |
| Screen Size | 146" 4K All-in-One LED Display |
| Diode Type | Flip-chip RGB LED (182 × 93) |
| Pixel Pitch | 0.84 mm |
| Pixel Configuration | 3840 × 2160 |
| Brightness | 500 nit |
| Contrast Ratio | 7000:1 |
| Viewing Angle (H/V) | 170° / 155° |
| Color Temperature | 6500K ± 500K (floating bin) |
| Video Rate | 120 Hz |
| Input Voltage | 100–240V AC |
| Power Frequency | 50 / 60 Hz |
| Refresh Rate | 3840 Hz |
| Working Temperature | 0°C to +40°C |
| Humidity Range | 10% – 80% RH |
| Safety Certifications | CB (IEC60950-1), CCC, PSB, NOM, IRAM, SASO, BIS, KC, EAC, INMETRO, BSMI, RCM, UL |
| EMC Compliance | FCC Class A, KCC KN32/KN35, CE EN55032/55024/55035, VCCI CISPR32, CCC GB/T9254, BSMI CNS13438/14336-1, C-Tick, GOST |
| Design | Ultra-premium bezel-less modular LED |
| Use Cases | Boardrooms, luxury showrooms, digital signage, command centers, cinemas |
