Product Description

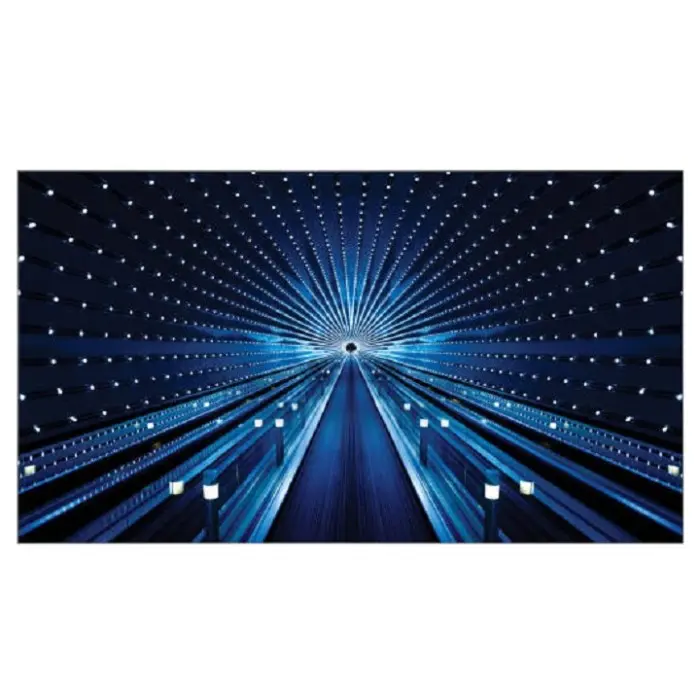

Samsung The Wall 146" All-in-One LED Display (1.68mm Pixel Pitch)
The Samsung The Wall 146" All-in-One LED Display with a 1.68mm pixel pitch delivers breathtaking large-format 4K visual performance for luxury environments, corporate boardrooms, premium retail, control rooms, and high-impact digital signage.
Featuring flip-chip RGB LED technology, a high 500-nit brightness, ultra-deep 8000:1 contrast, and wide 170°/155° viewing angles, it ensures exceptional color accuracy, uniformity, and clarity across large spaces.
With a 120Hz video rate, ultra-smooth 7680Hz refresh rate, and a premium bezel-less modular design, this display is engineered for professional environments demanding reliability, precision, and world-class image quality.
Built to operate safely under global standards, The Wall guarantees durability and excellence for high-end installations.
Specifications
| Category | Specification |
| Model | LH016IABMHS/UE |
| Screen Size | 146" All-in-One LED Display |
| Pixel Pitch | 1.68 mm |
| Pixel Configuration | 1920 × 1080 |
| Diode Type | Flip-chip RGB LED (182 × 93) |
| Brightness | 500 nit |
| Contrast Ratio | 8000:1 |
| Viewing Angle (H/V) | 170° / 155° |
| Color Temperature | 6500K ± 500K (floating bin) |
| Video Rate | 120 Hz |
| Refresh Rate | 7680 Hz |
| Input Voltage | 100–240V AC |
| Power Frequency | 50 / 60 Hz |
| Working Temperature | 0°C to +40°C |
| Humidity Range | 10% – 80% RH |
| Safety Certifications | CB, CCC, PSB, NOM, IRAM, SASO, BIS, KC, EAC, INMETRO, BSMI, RCM, UL |
| EMC Compliance | FCC Class A, KCC KN32/KN35, CE EN55032/55024/55035, VCCI CISPR32, CCC GB/T9254, BSMI CNS13438/14336-1/15663, C-Tick, GOST |
| Design | Ultra-premium bezel-less modular LED |
| Use Cases | Boardrooms, command centers, luxury showrooms, digital signage |
