Product Description

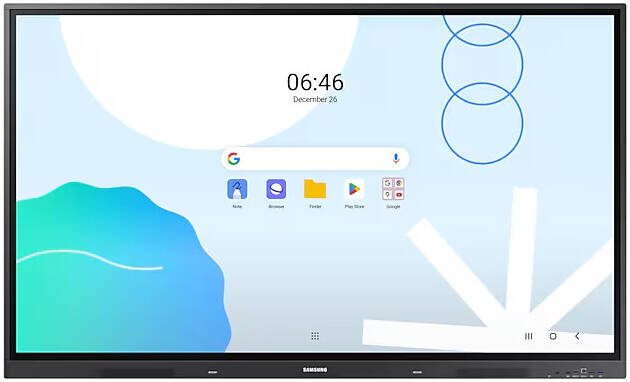

Samsung WAD Series 86" Interactive Display, 4K UHD IPS Touch Screen, 8 ms Response, 64 GB Storage, Wi-Fi & Bluetooth, Android 13, Space Gray | LH86WADWLGCXUE
Overview
Experience limitless learning and collaboration possibilities with the Samsung WAD Series 86" Interactive Display. Designed for education and enterprise environments, it combines 4K UHD clarity, intelligent IR touch technology, and Android 13 OS for a smooth, intuitive user experience.
Download apps directly from Google Play, access pre-installed tools like YouTube and Chrome, and transform classrooms or meeting spaces into smart, interactive environments. With its sleek Space Gray finish, wide connectivity options, and reliable performance, the WAD series brings innovation and productivity together in one impressive display.
Key Features
Immersive 4K UHD Visuals: Stunning 3840 × 2160 resolution with wide 178° viewing angles and 400 nits brightness.
Precise Multi-Touch Experience: Up to 40-point IR touch with smooth 8 ms response time ensures accurate and natural writing or drawing.
Certified Android 13 System: Access Google Play apps, including productivity tools like Chrome, Drive, and YouTube.
Powerful Hardware: Equipped with Quad-Core A55 processor, 8 GB RAM, and 64 GB flash storage for fast, reliable performance.
Seamless Connectivity: Three HDMI ports, five USB ports, RS232, RJ45 in/out, and audio jacks for complete compatibility with modern devices.
Wireless Freedom: Built-in Wi-Fi and Bluetooth connectivity simplify screen sharing and peripheral pairing.
Elegant & Durable Design: Slim Space Gray chassis with anti-glare glass and reinforced frame — ideal for long operational use (12/7).
Eco-Optimized Performance: Energy-efficient build with low power consumption and compliance with global safety standards.
Specifications
| Category | Specification |
| Brand | Samsung |
| Model | LH86WADWLGCXUE |
| Display Size | 86 inches |
| Panel Type | IPS |
| Resolution | 3840 × 2160 (4K UHD) |
| Brightness (Typ.) | 400 nits |
| Contrast Ratio (Typ.) | 1200 : 1 |
| Viewing Angle (H/V) | 178° / 178° |
| Response Time | 8 ms |
| Color Gamut | 72 % NTSC |
| Glass Haze | 25 % |
| Touch Technology | Infrared (IR) |
| Touch Points | Up to 40 points |
| Operation Time | 12 / 7 |
| Processor | Quad-Core A55 |
| Operating System | Android 13 |
| Storage | 64 GB Flash |
| RAM | 8 GB |
| Connectivity (Input) | HDMI × 3, USB (2.0 × 1, 3.0 × 4), IR In, Audio In, RS232 In, RJ45 In |
| Connectivity (Output) | Audio Out, Video Out, RS232 Out, RJ45 Out |
| Wireless | Wi-Fi, Bluetooth |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Power Consumption | 486 W (On), ≤ 0.5 W (Sleep) |
| Dimensions (Set) | 1957 × 1160 × 99 mm |
| Dimensions (Package) | 2110 × 1283 × 225 mm |
| Weight (Set / Package) | 56.5 kg / 74.3 kg |
| Bezel Width | 16.4 mm (Top/Left/Right), 44.9 mm (Bottom) |
| Bezel Color | Space Gray |
| Frame Material | Non-Glossy |
| VESA Mount Compatibility | 800 × 600 mm |
| Operating Conditions | 0 °C – 40 °C / 10 % – 90 % RH |
| Touch Support | Yes |
| Certifications | EMC Part 15, Subpart B Class A; IEC 62368-1; IEC 60950-1 |
| Safety Compliance | Global Standards |
| Included Accessories | Power Cable, Remote, HDMI Cable, Touch Pens, USB Cable, Warranty Card, Quick Start Guide |
| Use Case | Education, Training, and Corporate Collaboration |
