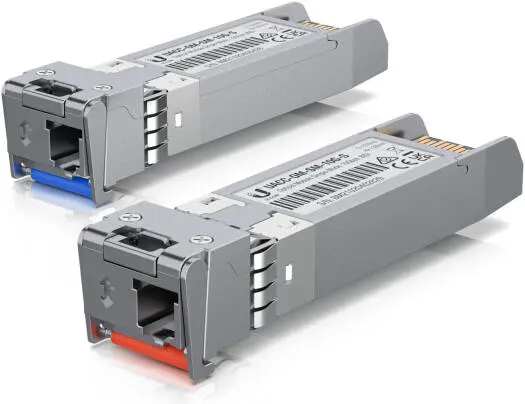

Ubiquiti 10G Bidirectional Single-Mode Optical Module, 10 Gbps Max Data Rate, Compatible with SFP+ & SFP interfaces, Simplex LC UPC Connector, Support Up to 10 KM, Pack of 2 UACC-OM-SM-10G-S-2

Ubiquiti 10G BiDi Single-Mode Optical Module (2-Pack)  UACC-OM-SM-10G-S-2

The UACC-OM-SM-10G-S-2 from Ubiquiti is a 10G bidirectional (BiDi) single-mode SFP+ optical transceiver designed for high-speed, long-distance fiber links. Using simplex LC single-mode fiber, each module pair delivers up to 10 Gbps connectivity over distances of up to 10 km, making it ideal for enterprise backbones, data centers, and ISP deployments.

Key Features

• 10 Gbps maximum data rate

• Bidirectional (BiDi) transmission over a single fiber strand

• Simplex LC UPC connector

• Single-mode fiber support

• Up to 10 km transmission distance

• Low power consumption (1W max)

• Compatible with SFP+ interfaces

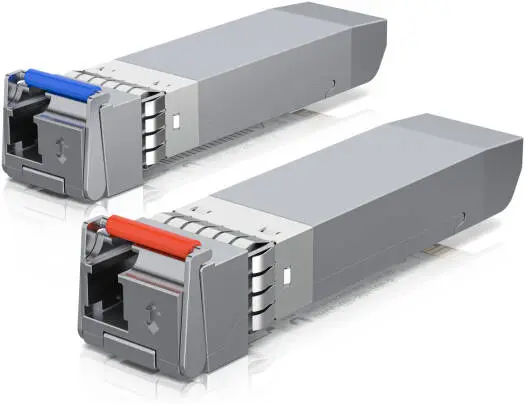

• Supplied as a matched 2-pack (Blue & Red latch)

Efficient Single-Fiber Design

BiDi technology allows transmit and receive signals to travel on one single-mode fiber, reducing fiber usage and infrastructure cost.

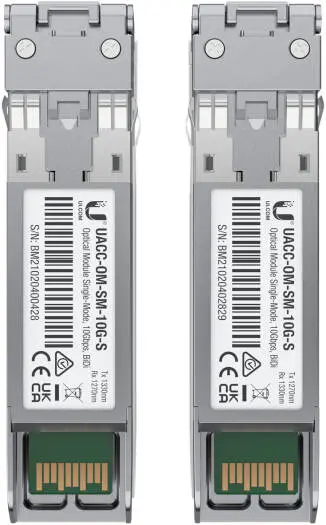

• Blue latch: TX 1270 nm / RX 1330 nm

• Red latch: TX 1330 nm / RX 1270 nm

Modules must be used as a matched pair (blue + red).

Reliable High-Speed Connectivity

Designed for demanding environments, these modules provide stable 10G fiber links for:

• Core & aggregation switches

• Enterprise and campus networks

• Data centers

• Long-distance building-to-building connections

Technical Specifications

• Supported Media: Single-mode fiber

• Connector Type: LC (simplex)

• Data Rate: 10 Gbps

• Cable Distance: Up to 10 km

• Max Power Consumption: 1W

• Operating Temperature: 0 to 70°C

• Pack Options: 2-Pack, 20-Pack
