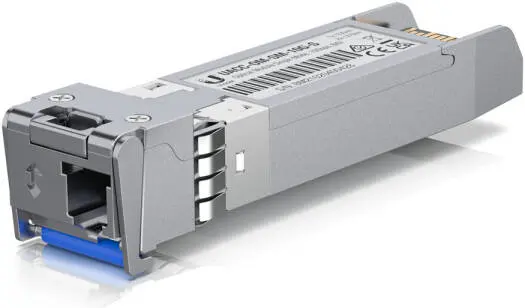

Ubiquiti , 10Gbps Data Transfer Rate, 1270nm TX Wavelength, 1330nm RX Wavelength, Up to 10Km Cable Distance, Single Pack UACC-OM-SM-10G-S 10 Gbps Bidirectional Single-Mode Optical Module

Ubiquiti 10 Gbps BiDi Single-Mode Optical Module  UACC-OM-SM-10G-S

The UACC-OM-SM-10G-S from Ubiquiti is a 10G bidirectional (BiDi) single-mode SFP+ optical transceiver designed for high-speed, long-distance fiber connectivity using a single fiber strand. This module is ideal for enterprise networks, data centers, and ISP backbones where fiber efficiency and reliability are critical.

Product Overview

This simplex SFP+ module supports 10 Gbps data transfer rates over single-mode fiber with a reach of up to 10 km. Using BiDi technology, it transmits and receives data on different wavelengths over one LC fiber, reducing fiber infrastructure requirements and overall deployment cost.

Key Features

• 10 Gbps maximum data rate

• Bidirectional (BiDi) transmission over a single fiber

• Simplex LC connector

• Single-mode fiber support

• Up to 10 km cable distance

• Low power consumption (max. 1W)

• Fully compatible with SFP+ interfaces

Technical Specifications

• Supported Media: Single-mode fiber

• Connector Type: (1) LC (Simplex)

• BiDi: Yes

• TX Wavelength: 1270 nm (Blue latch)

• RX Wavelength: 1330 nm (Blue latch)

• Data Rate: 10 Gbps

• Max. Power Consumption: 1 W

• Cable Distance: Up to 10 km

• Operating Temperature: 0 to 70°C
