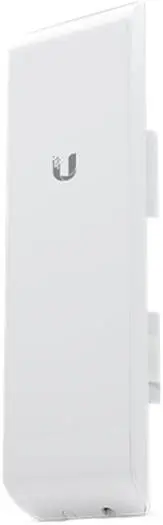

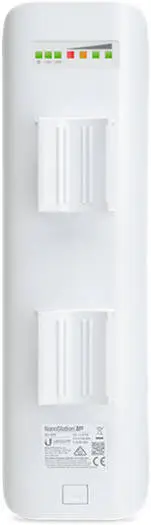

UBIQUITI NanoStation M5 (NSM5) 5GHz airMAX CPE – 150+ Mbps, 15+ km Range White
The UBIQUITI NanoStation® M5 (NSM5) is a high-performance 5 GHz airMAX CPE designed for Point-to-MultiPoint (PtMP) and Point-to-Point (PtP) wireless deployments. Combining a directional panel antenna with dual-linear MIMO technology, it delivers stable long-range connectivity in a compact, weather-resistant design suitable for both indoor and outdoor installations.
Built by Ubiquiti, the NSM5 is widely used by ISPs and enterprise networks to extend broadband coverage with excellent throughput, low latency, and strong interference resistance.
Product Overview
Operating in the 5 GHz frequency band, the NanoStation M5 supports 150+ Mbps real throughput and link distances of 15+ km under optimal conditions. It integrates seamlessly with airMAX TDMA technology, which improves network efficiency, scalability, and performance compared to standard Wi-Fi protocols.
With two 10/100 Ethernet ports, one supporting Passive PoE, the NSM5 allows flexible power and data passthrough—ideal for powering additional devices such as IP cameras.
Key Features
5 GHz airMAX® technology for PtMP & PtP links
150+ Mbps throughput with long-range performance
15+ km wireless range (line-of-sight)
Dual-linear MIMO panel antenna (14.6–16.1 dBi)
2 × 10/100 Mbps Ethernet ports with Passive PoE
Indoor & outdoor CPE design
Compact, lightweight, UV-stabilized enclosure
Pole-mount kit included
Technical Specifications
Model: NSM5
Frequency Band: 5 GHz
Operating Frequency:
Worldwide: 5170 – 5875 MHz
USA: 5725 – 5850 MHz
USA DFS: 5250 – 5850 MHz
Antenna Gain: 14.6 – 16.1 dBi
Throughput: 150+ Mbps

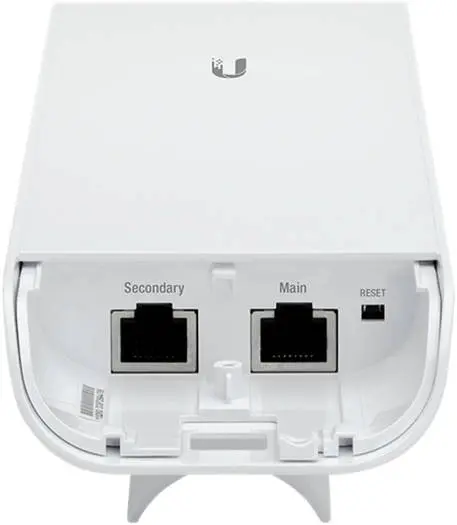

Networking Interface: 2 × 10/100 Ethernet ports
Processor: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2 / 8 MB Flash
Polarization: Dual Linear
Beamwidth:
43° (H-pol) / 41° (V-pol) / 15° (Elevation)
Power Supply: 24V, 0.5A Passive PoE
Max Power Consumption: 8W
Physical & Environmental
Dimensions: 294 × 31 × 80 mm
Weight: 400 g
Enclosure: Outdoor UV-stabilized plastic

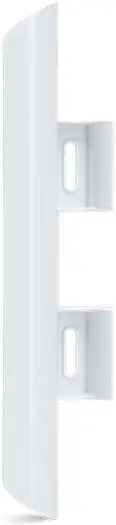

Mounting: Pole-mount (included)
Operating Temperature: -30°C to 75°C
Operating Humidity: 5% – 95% non-condensing
Certifications
FCC Part 15.247
IC RS210
CE
RoHS compliant
