Product Description

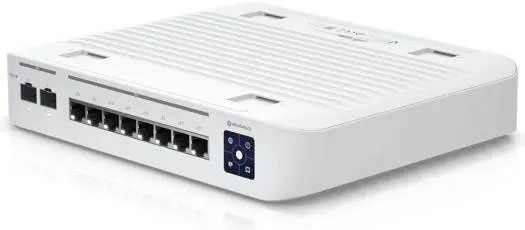

Ubiquiti UniFi Switch Enterprise 8 PoE – 2.5GbE PoE+, 2×10G SFP+, Layer 3 USW-Enterprise-8-PoE
The UniFi Switch Enterprise 8 PoE (USW-Enterprise-8-PoE) is a compact, high-performance managed Layer 3 switch built for modern enterprise and high-density networks. Featuring 8× 2.5GbE PoE+ RJ45 ports, 2× 10G SFP+ uplinks, and an 80 Gbps switching capacity, it delivers exceptional throughput and power for Wi-Fi 6/6E access points, IP cameras, VoIP phones, and high-speed endpoints.
Designed for flexibility, the switch includes a 1.3” LCM color touchscreen for instant system insights and AR-assisted management, and it integrates seamlessly with the UniFi Network Application for centralized cloud management from anywhere.
Key Features
8× 2.5GbE PoE+ RJ45 Ports (up to 32W per port)
2× 10G SFP+ Uplink Ports for high-speed aggregation
80 Gbps Switching Capacity with 59.52 Mpps forwarding rate
120W Total PoE Power Budget
1.3” LCM Touchscreen Display with real-time status & AR management
Fully Managed UniFi Switch (SMB Layer 3-ready)

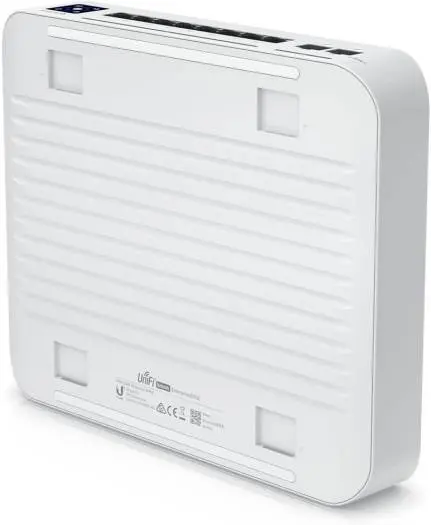

Desktop or Wall-Mountable Design
Centralized Management via UniFi Network App (Web & Mobile)
Built for High-Density, High-Speed Networks
With 2.5GbE PoE+ ports, the USW-Enterprise-8-PoE is ideal for powering and connecting Wi-Fi 6 / Wi-Fi 6E access points, ensuring there’s no bandwidth bottleneck between APs and the network core. The 10G SFP+ ports provide fast uplinks to aggregation switches or servers.
Intuitive Management & Monitoring
The integrated 1.3” LCM touchscreen displays key system information such as:
Device status
Port activity
Adoption & firmware state
Combined with the UniFi Network Application, administrators gain full visibility, configuration control, and remote management across the entire UniFi ecosystem.
Enterprise-Grade Power over Ethernet
With a 120W PoE budget, this switch can reliably power multiple PoE+ devices such as:
UniFi APs
IP cameras
VoIP phones
Access control systems
Specifications
Performance
Switching Capacity: 80 Gbps
Total Non-Blocking Throughput: 40 Gbps
Forwarding Rate: 59.52 Mpps
Interfaces
RJ45 Ports: 8× 1/2.5 GbE PoE / PoE+
SFP+ Ports: 2× 1/10 GbE
Max PoE+ Power per Port: 32W
Total PoE Budget: 120W
Power

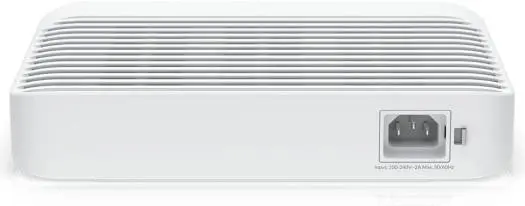

Power Method: 100–240V AC, 50/60 Hz
Internal Power Supply: 150W AC/DC
Management & Display
Management Interface: Ethernet In-Band
Display: 1.3” LCM Color Touchscreen
UniFi Network App: Web & Mobile
Environmental
Operating Temperature: -5 to 45°C
Operating Humidity: 10% – 90% (Non-condensing)
ESD/EMP Protection:
Air: ±16 kV
Contact: ±12 kV
Certifications
CE
FCC
IC
