Ubiquiti Access Point, Wi-Fi 7, 5GHz & 2GHz Dual Band, 115m Coverage Area, Wireless Meshing, Band Steering, 4 Spatial Streams, Built-In Antenna, 1x 2.5GbE RJ45 Port, White U7 Lite

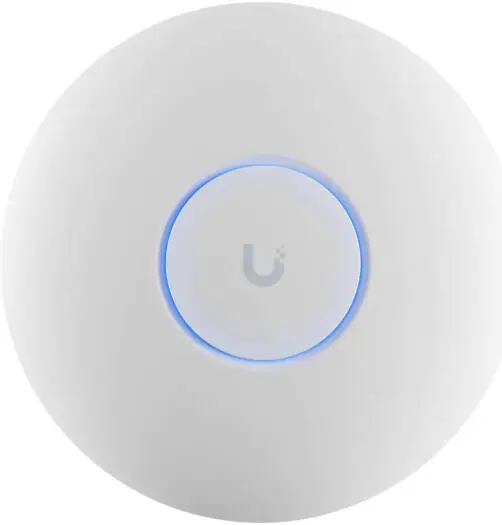

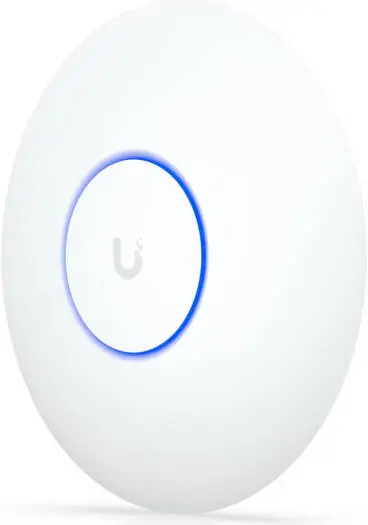

Ubiquiti U7 Lite Access Point  U7 Lite

The Ubiquiti U7 Lite is a compact, ceiling-mounted WiFi 7 access point designed to deliver next-generation wireless performance for modern homes, offices, and small-to-medium business environments. With 4 spatial streams, a 2.5 GbE uplink, and advanced roaming and security features, it provides fast, reliable connectivity in a clean and minimalist design.

Product Overview

Built on the latest WiFi 7 (802.11be) standard, the U7 Lite offers significantly higher throughput, lower latency, and improved efficiency compared to previous WiFi generations. It supports dual-band operation (2.4 GHz and 5 GHz) and integrates seamlessly into the UniFi ecosystem for centralized management and monitoring.

Key Features

Next-Generation WiFi 7 Performance

• WiFi 7 (802.11be) support for ultra-fast speeds and low latency

• Up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz

• 4 spatial streams (2×2 MU-MIMO on each band)

High-Capacity Coverage

• Covers up to 115 m² (1,250 ft²)

• Supports 200+ connected clients

• Optimized for dense device environments

Advanced Roaming & Radio Technologies

• Wireless meshing support

• Band steering for optimal client performance

• Fast roaming with 802.11r, 802.11k, and 802.11v

• Advanced radio resource management (RRM)

Enterprise-Grade Guest & Security Features

• Captive portal with custom branding

• Voucher, password, external portal, and payment-based authentication

• Guest network isolation and client device isolation

• Private Pre-Shared Key (PPSK) and dynamic VLAN assignment via RADIUS

• WiFi speed limiting and scheduling

High-Speed Wired Connectivity

• 1 × 2.5 GbE RJ45 uplink for full WiFi 7 performance

• Powered via PoE for simple single-cable installation

Compact & Durable Design

• Slim ceiling or wall-mountable form factor

• UV-stabilized polycarbonate enclosure

• NDAA compliant for enterprise and government use

Technical Specifications

Wireless Standards

• WiFi 7 (802.11be), backward compatible with WiFi 6/5/4

Performance

• 5 GHz: up to 4.3 Gbps (EHT 240 MHz)

• 2.4 GHz: up to 688 Mbps

• Antenna gain: 5 GHz 5 dBi, 2.4 GHz 4 dBi

Networking

• Uplink: 1 × 2.5 GbE RJ45

Power

• Power method: PoE

• Max power consumption: 13W

• Voltage range: 42.5–57V DC

Physical

• Dimensions: Ø171.5 × 33 mm

• Weight: 313 g

Environmental

• Operating temperature: -30°C to 40°C

• Humidity: 5–95% non-condensing

Management & Compatibility

• Managed via UniFi Network Application (v9.0.114 or later)

• UniFi OS app support on iOS and Android
