Ubiquiti Access Point, WiFi 7 Standard, 10 Spatial Streams, 1000+ Max Client Count, 2.4 GHz, 5 GHz & 6 GHz MIMO Performance, Up to 11.4 Gbps Supported Data Rates, White -EU E7

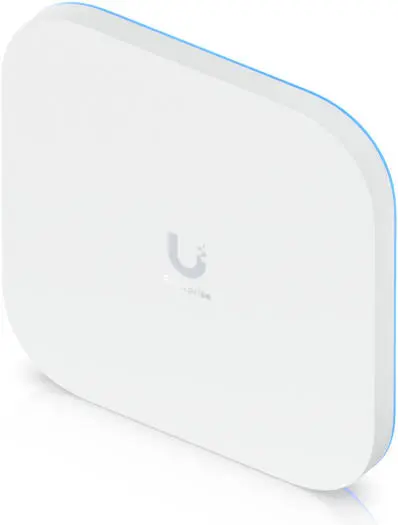

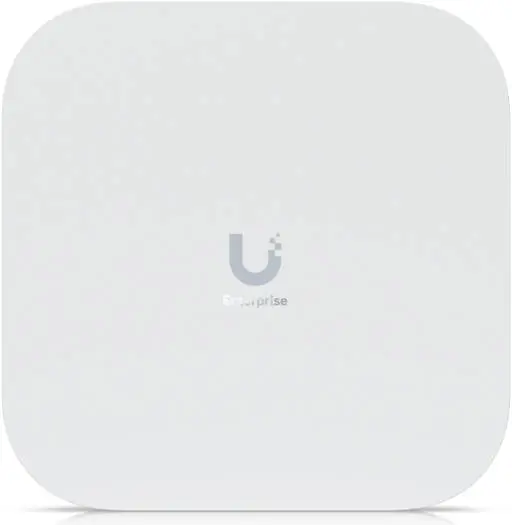

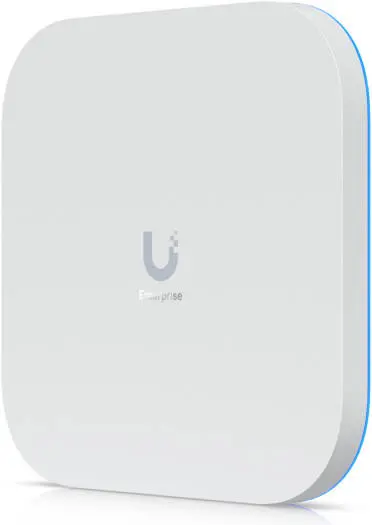

Ubiquiti E7 Access Point  E7-EU

The Ubiquiti E7 is an enterprise-grade indoor Wi-Fi 7 access point built for ultra-high-density environments that demand maximum performance, capacity, and reliability. With 10 spatial streams, tri-band operation (2.4 GHz, 5 GHz, and 6 GHz), and a 10 GbE uplink with redundant 1 GbE connectivity, the E7 is designed for large offices, campuses, convention centers, and mission-critical networks.

Product Overview

Powered by the latest Wi-Fi 7 (802.11be) standard, the Ubiquiti E7 delivers exceptional throughput, ultra-low latency, and advanced spectrum efficiency. It supports over 1,000 concurrent clients while maintaining stable, high-speed connections across all three frequency bands. Centralized management through the UniFi Network platform makes it easy to deploy, monitor, and scale enterprise wireless networks.

Key Features

Enterprise-Class Wi-Fi 7 Performance

• Wi-Fi 7 (802.11be) with 10 spatial streams

• Tri-band operation: 2.4 GHz, 5 GHz, and 6 GHz

• Data rates up to 11.4 Gbps

• Wide channel support up to 320 MHz (EHT)

Ultra-High Capacity & Coverage

• Supports 1,000+ concurrent clients

• Coverage area up to 185 m² (2,000 ft²)

• Optimized for stadium-level and dense enterprise deployments

Advanced Radio & Roaming Technologies

• DL/UL MU-MIMO on all bands

• Wireless meshing and band steering

• Fast roaming with 802.11r, 802.11k, and 802.11v

• Advanced radio management and real-time spectral analysis

High Availability & Wired Performance

• 1 × 10 GbE RJ45 uplink for full Wi-Fi 7 throughput

• 1 × 1 GbE RJ45 redundant port for failover

• Powered via PoE++ for single-cable installation

Enterprise Security & Guest Access

• WPA-Enterprise / WPA3 support

• Private Pre-Shared Key (PPSK)

• Dynamic VLAN assignment with RADIUS over TLS (RadSec)

• Captive portal with custom branding

• Voucher, password, external, and payment-based authentication

• Guest traffic and client device isolation

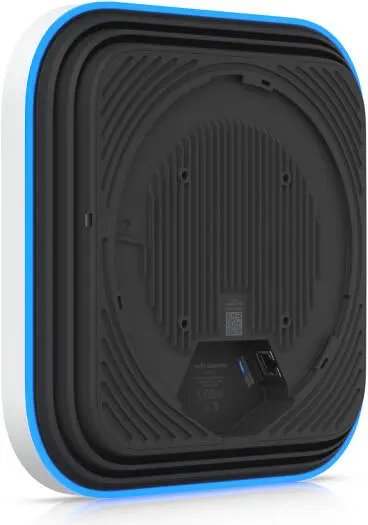

Robust Design & Flexible Mounting

• Ceiling, wall, or VESA mounting (Pro Mount included)

• UV-stabilized polycarbonate and aluminum alloy enclosure

• NDAA compliant for government and enterprise use

Technical Specifications

Wireless Performance

• Spatial Streams: 10

• MIMO:

  • 6 GHz: 4×4 MU-MIMO

  • 5 GHz: 4×4 MU-MIMO

  • 2.4 GHz: 2×2 MU-MIMO

Maximum Data Rates

• 6 GHz: up to 11.5 Gbps (320 MHz)

• 5 GHz: up to 8.6 Gbps (240 MHz)

• 2.4 GHz: up to 688 Mbps

Networking Interfaces

• 1 × 10 GbE RJ45

• 1 × 1 GbE RJ45 (redundant)

Power

• Power method: PoE++

• Max power consumption: 43 W

• Voltage range: 42.5–57 V DC

Physical

• Dimensions: 250 × 250 × 43.5 mm

• Weight: 1.8 kg

Environmental

• Operating temperature: -30°C to 50°C

• Humidity: 5–95% non-condensing

Management & Compatibility

• Managed via UniFi Network Application

• Supports advanced analytics, monitoring, and centralized configuration
