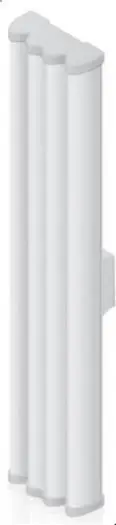

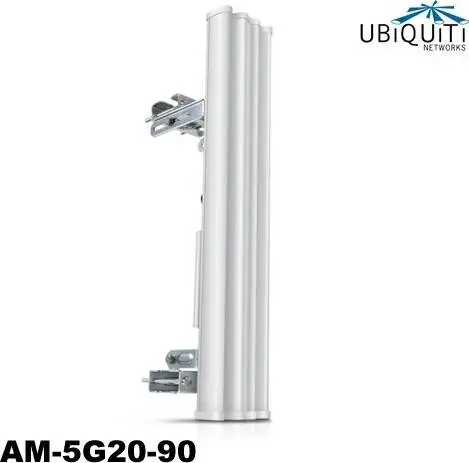

Ubiquiti airMAX 5GHz 2x2 MIMO BaseStation Sector Antenna | 20 dBi, 90° AM-5G20-90

The Ubiquiti airMAX AM-5G20-90 is a high-performance 5 GHz 2x2 MIMO sector antenna designed for outdoor base station deployments. With 90° sector coverage, up to 20 dBi gain, and seamless integration with RocketM radios, it is an ideal solution for WISPs and enterprise point-to-multipoint (PtMP) networks.

Built specifically for the airMAX ecosystem, this antenna delivers focused sector coverage, excellent interference rejection, and reliable long-range performance in demanding outdoor environments.

Key Features

• 5 GHz airMAX Sector Antenna for PtMP networks

• 2x2 MIMO with Dual-Linear Polarization

• Up to 20 dBi High Gain for extended range

• 90° Sector Coverage – ideal for base station use

• Seamless RocketM Integration – snap-in installation

• Weatherproof RF Jumpers Included

• Universal Pole Mount Included

• Outdoor-Ready, Carrier-Grade Design

Optimized for RocketM Radios

The AM-5G20-90 is engineered to work perfectly with Ubiquiti RocketM radios. Installation is fast and simple—just snap the RocketM into place using the included bracket, with no special tools required. This tight integration minimizes signal loss and ensures optimal RF performance.

Focused Coverage & Reduced Interference

With a narrow electrical beamwidth and 2° electrical downtilt, the antenna delivers precise coverage while reducing interference from neighboring sectors—making it ideal for dense wireless environments.

Built for Outdoor Reliability

Designed for continuous outdoor operation, the antenna includes weatherproof RF jumpers, robust mounting hardware, and durable construction suitable for harsh weather conditions.

Specifications

RF & Performance

• Frequency Range: 5.15 – 5.85 GHz

• Gain: 19.4 – 20.3 dBi

• Polarization: Dual-Linear

• Electrical Beamwidth: 4°

• Electrical Downtilt: 2°

• Sector Coverage: 90°

Mechanical & Installation

• Mounting: Universal Pole Mount (Included)

• RocketM Bracket: Included

• RF Jumpers: Weatherproof Jumpers Included

• Compatibility: Ubiquiti RocketM Radios
