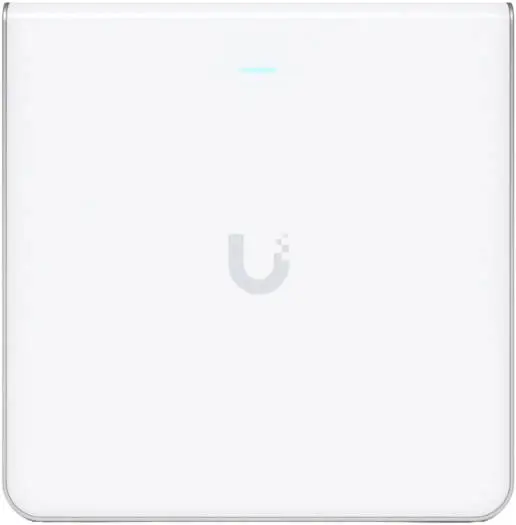

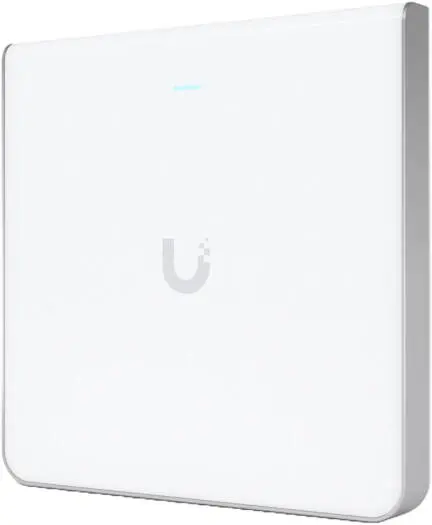

Ubiquiti AP, WiFi 6E, 10 Spatial Streams, 6 GHz, 4.8 Gbps, 4-Port Switch, White U6-Enterprise-IW U6 Enterprise In-Wall

Ubiquiti U6 Enterprise In-Wall WiFi 6E Access Point | U6-Enterprise-IW

The Ubiquiti U6 Enterprise In-Wall is a high-performance WiFi 6E tri-band access point designed for high-density enterprise and office environments. With support for the new 6 GHz band, 10 spatial streams, and an integrated 4-port Ethernet switch, it delivers exceptional wireless capacity and speeds while maintaining a clean, wall-mounted form factor.

Product Overview

The U6 Enterprise In-Wall discreetly installs into standard wall junction boxes, making it ideal for modern offices, hotels, campuses, and enterprise buildings that require powerful wireless performance without ceiling mounting. Powered via PoE+, with optional PoE++ for downstream power output, it combines wireless access, wired connectivity, and PoE functionality in a single device.

Key Features

WiFi 6E Tri-Band Performance

• Supports 2.4 GHz, 5 GHz, and 6 GHz bands

• 10 spatial streams for ultra-high capacity

• Aggregate throughput of up to 10.17 Gbps

• Ideal for latency-sensitive and bandwidth-heavy applications

High-Density Client Support

• Supports 600+ concurrent clients

• Designed for enterprise environments with heavy device density

• Advanced MU-MIMO and OFDMA for efficient traffic handling

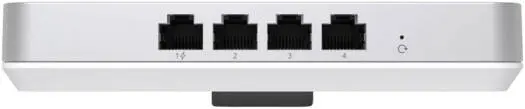

Integrated 4-Port Switch

• (4) Gigabit Ethernet LAN ports

• (1) PoE output port (up to 15.4W) for VoIP phones or IoT devices

• 2.5 GbE uplink port for high-speed backhaul

Flexible Power Options

• PoE+ input for standard operation

• PoE++ required to enable PoE output to downstream devices

• Single-cable data and power delivery

Enterprise-Grade Management & Security

• Managed via UniFi Network Controller

• Supports VLANs (802.1Q), guest isolation, and per-user rate limiting

• WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) security

• Zero-wait DFS support

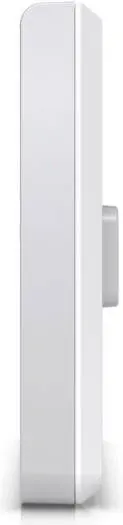

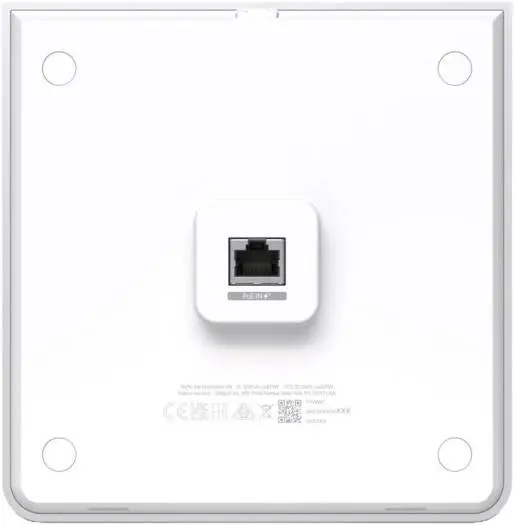

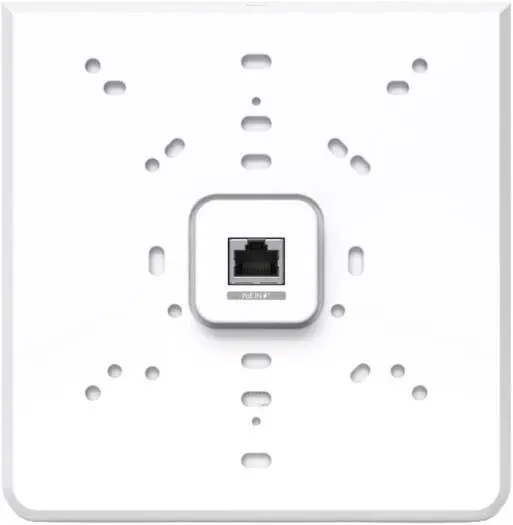

Professional In-Wall Design

• Wall-mounted form factor for clean installations

• Durable polycarbonate and aluminum enclosure

• Ideal for offices, hotels, classrooms, and meeting rooms

Technical Specifications

Networking

• Uplink: 1 × 2.5 GbE RJ45

• Downlink: 4 × Gigabit Ethernet RJ45

• PoE Output: 1 × GbE (15.4W max)

Wireless Performance

• 2.4 GHz: Up to 573.5 Mbps (2×2 MU-MIMO)

• 5 GHz: Up to 4.8 Gbps (4×4 MU-MIMO)

• 6 GHz: Up to 4.8 Gbps (4×4 MU-MIMO)

Coverage

• Up to 115 m² (1,250 ft²)

Power

• Power method: PoE+

• PoE++ required for PoE output

• Max power consumption (excluding PoE output): 21W

Environment

• Operating temperature: -30°C to 60°C

• Humidity: 5–95% non-condensing

Ideal Use Cases

• Enterprise offices

• Hotels and hospitality

• Conference rooms and meeting spaces

• Campuses and corporate buildings

• High-density WiFi deployments
