Product Description

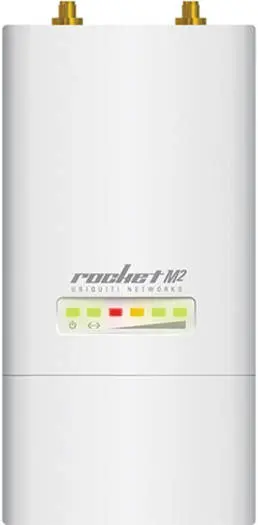

Ubiquiti Rocket M2 BaseStation – 2.4 GHz airMAX (RocketM2)
The Rocket M2 BaseStation from Ubiquiti is a high-power 2.4 GHz airMAX base radio designed for Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) outdoor wireless networks. Built around Ubiquiti’s proven airMAX TDMA technology, the Rocket M2 delivers up to 150+ Mbps real TCP/IP throughput with improved latency, scalability, and reliability compared to standard Wi-Fi solutions.
Its modular “mix-and-match” design allows seamless integration with airMAX sector, omni, dish, or Yagi antennas, making it an ideal choice for WISPs, campus networks, rural broadband, and outdoor backhaul deployments.
Key Features
2.4 GHz airMAX BaseStation radio
Up to 150+ Mbps real TCP/IP throughput
2×2 MIMO with airMAX TDMA protocol
High output power up to 27 dBm
MIPS 74Kc processor with 128 MB SDRAM
airOS® 5 operating system
Plug-and-play integration with airMAX antennas
Integrated airView® spectrum analyzer
Centralized management via airControl®
Optimized for PtP & PtMP Networks
Operating in the 2402–2462 MHz unlicensed band, the Rocket M2 supports flexible channel widths and frequencies. While the 2.4 GHz band is widely compatible and long-reaching, airMAX TDMA scheduling minimizes hidden-node collisions and maximizes airtime efficiency—critical in crowded RF environments.
airMAX® TDMA Technology
Unlike standard Wi-Fi, airMAX TDMA assigns time slots to each client, delivering:
Lower latency
Higher throughput
Better scalability
Improved voice/video QoS
Advanced Software Tools
airOS® 5 – Intuitive web UI with advanced wireless controls, link optimization, and diagnostics
airView® – Real-time spectrum analyzer (waterfall, waveform, live RF views)
airControl® – Centralized, web-based network management, monitoring, and firmware upgrades
Rugged & Flexible Design

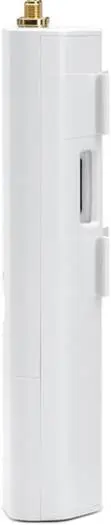

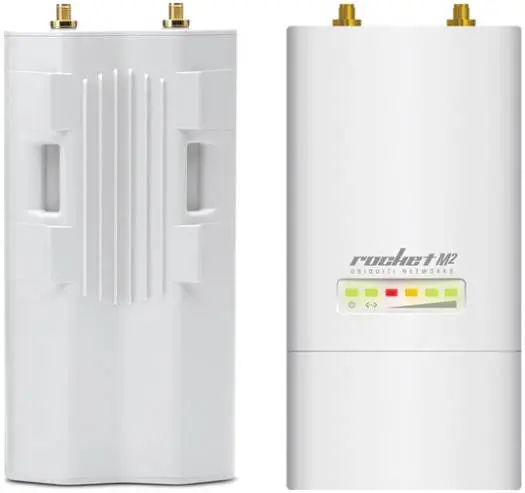

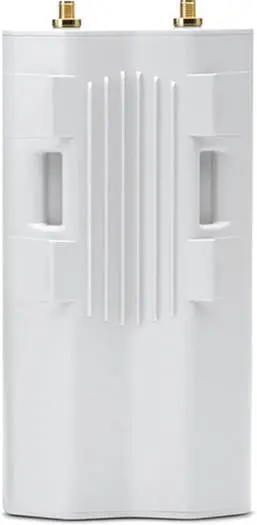

The Rocket M2 enclosure is built for harsh outdoor conditions and snaps directly into any compatible airMAX antenna with a built-in Rocket mount—no special tools required.
Technical Specifications
Wireless
Wi-Fi Standard: 802.11n (Wi-Fi 4), Single-Band (2.4 GHz)
Frequency Range: 2402–2462 MHz
MIMO: 2×2
Output Power: 22–28 dBm (up to 27 dBm typical)
Sensitivity: -74 to -97 dBm
Throughput: Up to 150 Mbps
Protocols: WMM, airMAX TDMA
Hardware
CPU: MIPS 74Kc
Memory: 128 MB SDRAM
Flash: 8 MB
Ethernet: 1× 10/100 Mbps RJ45 (PoE)
Antenna Connectors: 2× SMA
Power Consumption: 6.5 W
Power Input: 24V Passive PoE
Environmental
Operating Temperature: -30 to 75°C
Operating Humidity: 5–95% non-condensing
Certifications: CE, FCC, IC, RoHS
Physical
Dimensions: 160 × 80 × 30 mm
Weight: 500 g
Color: White
