Product Description

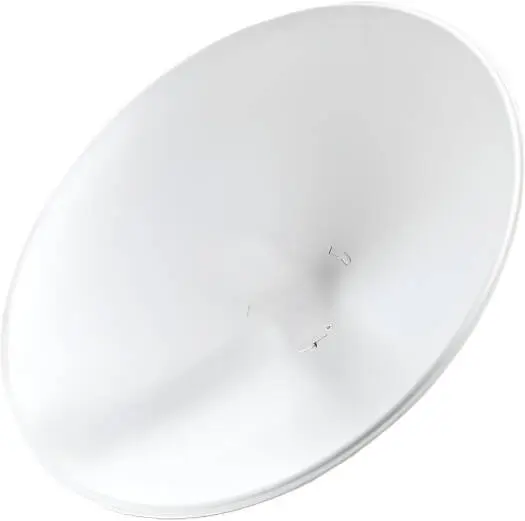

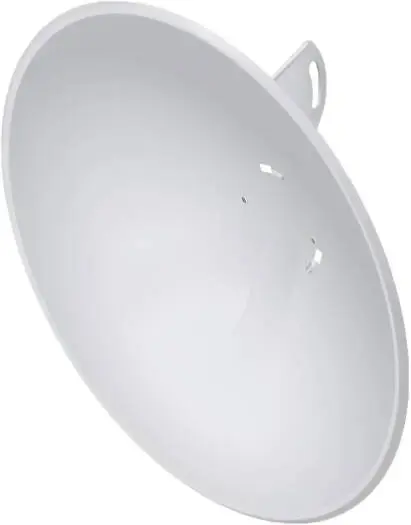

Ubiquiti airMAX PowerBeam M5 Bridge (PBE-M5)
The airMAX PowerBeam M5 from Ubiquiti is a high-gain 5 GHz wireless bridge engineered for long-distance, point-to-point links in demanding outdoor environments. With a powerful 25 dBi directional antenna and proven airMAX TDMA technology, the PowerBeam M5 delivers 150+ Mbps throughput with excellent noise immunity and rock-solid stability.
Thanks to InnerFeed® integrated radio design, cable losses are eliminated, ensuring maximum RF efficiency and consistent performance—ideal for ISP backhaul, building-to-building connectivity, surveillance links, and rural deployments.
Key Benefits
150+ Mbps real-world throughput
Long-range 5 GHz links up to 25+ km
25 dBi high-gain directional antenna
airMAX TDMA protocol for low latency and high scalability
InnerFeed® technology eliminates RF cable loss
Tool-free assembly with quick pole mounting
UV-stabilized outdoor enclosure built for harsh conditions
Designed for Long-Distance Precision
The PowerBeam M5’s narrow beamwidth and high gain focus RF energy exactly where it’s needed, reducing interference and improving link reliability—even in high-noise or crowded RF environments.
Effortless Installation
Snap-fit assembly (no tools required)
Single-wrench pole mounting
Included 24V Gigabit PoE adapter
Software-adjustable signal strength LEDs for precise alignment
Proven airMAX® Performance
Deployed worldwide in millions of links, airMAX® TDMA technology dramatically improves:
Airtime efficiency
Network scalability
Latency consistency
This makes the PowerBeam M5 far superior to standard Wi-Fi bridges for professional outdoor use.
Technical Specifications
Mechanical
| Item | Details |
| Dimensions | 420 × 420 × 275 mm |
| Weight | 1.75 kg |
| Enclosure | UV-stabilized plastic |
| Mounting | Pole mount kit (included) |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 342.5 N @ 200 km/h |
Hardware
| Item | Details |
| Networking Interface | 1× Gigabit Ethernet (RJ45) |
| Power Method | Passive PoE (Pairs 4,5+; 7,8−) |
| Power Supply | 24V, 0.5A Gigabit PoE (included) |
| Max Power Consumption | 8 W |
| Max TX Power | 26 dBm |
| ESD/EMP Protection | ±24 kV (air/contact) |
| LEDs | Power, LAN, 4× WLAN |
| Signal LEDs | Software-adjustable RSSI |
RF & System
| Item | Details |
| Frequency Band | 5 GHz |
| Operating Frequency | Worldwide: 5170–5875 MHz US/CA: 5725–5850 MHz |
| Antenna Gain | 25 dBi |
| Polarization | Dual-linear |
| Channel Widths | 5 / 8 / 10 / 20 / 30 / 40 MHz |
| Throughput | 150+ Mbps |
| Link Range | Up to 25+ km |
Environmental
| Item | Details |
| Operating Temperature | -40 to 70 °C |
| Operating Humidity | 5–95% non-condensing |
| Certifications | CE, FCC, IC, RoHS |
