Product Description

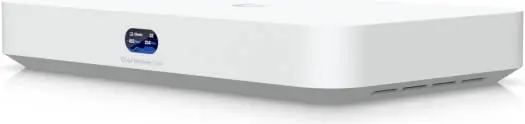

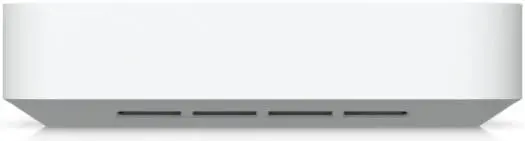

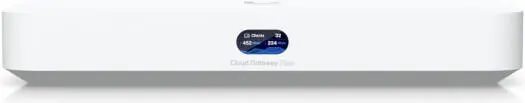

Ubiquiti Cloud Gateway Fiber (UCG-Fiber)
High-Performance 10G UniFi Cloud Gateway for Modern Networks
The Ubiquiti Cloud Gateway Fiber is a powerful desktop 10G cloud gateway designed for growing businesses, enterprises, and advanced home networks. It combines ultra-fast 10G connectivity, an integrated 2.5 GbE switch, advanced security, and full UniFi application support in a compact, elegant form factor.
With support for 50+ UniFi devices and 500+ concurrent users, up to 5 Gbps IDS/IPS throughput, and selectable NVMe NVR storage, the UCG-Fiber delivers enterprise-grade performance, scalability, and reliability—without recurring licenses.
Key Features
10G Cloud Gateway with SFP+ and RJ45 WAN options
Integrated 4-port 2.5 GbE switch
5 Gbps IDS/IPS with 55,000+ security signatures
Supports UniFi Network, Protect, Access, Talk & Connect
Selectable NVMe SSD (up to 2 TB) for NVR storage
30W PoE budget for powering UniFi devices
Compact desktop design with 0.96" status LCM display
License-free SD-WAN & advanced VPN support
Specifications
Overview
| Item | Details |
| Dimensions | 212.8 × 127.6 × 30 mm |
| Form Factor | Compact desktop |
| UniFi Applications | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 50+ |
| Simultaneous Clients | 500+ |
| Managed Cameras | 15× HD / 8× 2K / 5× 4K |
Networking & Performance
| Item | Details |
| WAN Ports (Default) | 1× 10G SFP+, 1× 10 GbE RJ45 |
| Max WAN Ports | 6 |
| LAN Ports | 4× 2.5 GbE RJ45 |
| Additional Ports | 1× 10 GbE RJ45, 2× 10G SFP+ |
| IDS/IPS Throughput | Up to 5 Gbps |
| MAC Address Table | 4,000 entries |
| Dynamic Routing | OSPF |
| Multi-WAN Load Balancing | Yes |
| Advanced QoS & NAT | Yes |
Security
| Item | Details |
| Stateful & Layer-7 Firewall | Yes |
| IDS/IPS | Yes |
| Security Signatures | 55,000+ (CyberSecure) |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall | Yes |
| Content Filtering & Ad Blocking | Yes |
| VLAN / Subnet Segmentation | Yes |
VPN & SD-WAN
| Item | Details |
| License-Free SD-WAN | Yes |
| Site-to-Site VPN | Site Magic, IPsec, OpenVPN |
| VPN Server | WireGuard, OpenVPN, L2TP, Teleport |
| VPN Client | WireGuard, OpenVPN |
Hardware
| Item | Details |
| Processor | Quad-core ARM Cortex-A73 @ 2.2 GHz |
| Memory | 3 GB |
| NVR Storage | NVMe SSD (up to 2 TB, selectable) |
| PoE Budget | 30W |
| Max Power Consumption | 29.4W (excluding PoE) |
| Power Input | 54V DC (adapter included) |
| Display | 0.96" LCM status screen |
| Weight | 675 g (without SSD) / 734 g (with SSD) |
| Enclosure | Polycarbonate |
Environmental & Compliance
| Item | Details |
| Operating Temperature | 0 – 40°C |
| Operating Humidity | 5 – 95% (non-condensing) |
| ESD / EMP Protection | ±8kV Air / ±4kV Contact |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
