Ubiquiti Cloud Gateway Max, 30+ UniFi Device / 300+ Client Support, 2.3 Gbps IPS Routing, Selectable NVR storage, 2.3 Gbps IDS/IPS Throughput, 0.96" S Cloud Gateway Max

Ubiquiti UniFi Cloud Gateway Max  2.5G Multi-WAN, 2.3 Gbps IDS/IPS, Selectable NVR Storage  UCG-MAX

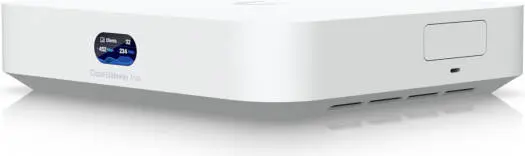

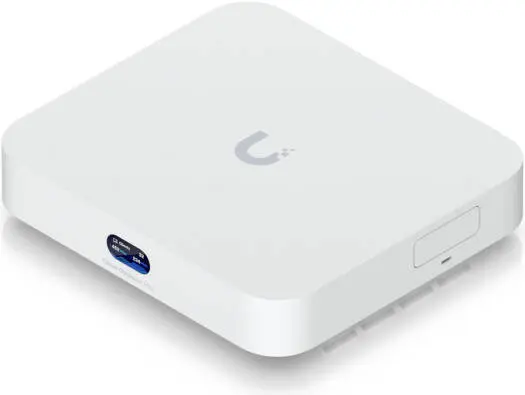

The UniFi Cloud Gateway Max (UCG-MAX) is a compact yet extremely powerful 2.5G cloud gateway designed for growing businesses, enterprise branches, and advanced UniFi deployments. Supporting 30+ UniFi devices, 300+ concurrent clients, and selectable NVMe NVR storage, it combines high-speed routing, next-generation security, and UniFi OS applications in a single elegant device.

With 2.3 Gbps IDS/IPS throughput, multi-WAN load balancing, and license-free SD-WAN, the UCG-MAX is built to handle demanding networks without performance compromise.

Key Features

• Supports 30+ UniFi Devices & 300+ Clients

• 2.3 Gbps IDS/IPS & IPS Routing Throughput

• (5) 2.5GbE RJ45 Ports – Multi-WAN capable

• Selectable NVMe NVR Storage (Up to 2 TB)

• Runs Full UniFi Application Suite

  • Network

  • Protect

  • Access

  • Talk

  • Connect

• Advanced Layer 7 & Zone-Based Firewall

• License-Free SD-WAN & VPN

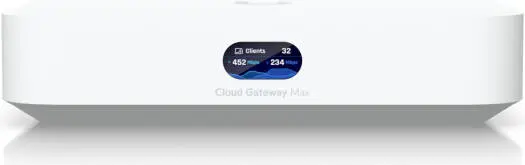

• 0.96” LCM Status Display

• USB-C Powered, Compact Desktop Design

• NDAA Compliant

Enterprise-Grade Security Without Performance Loss

The UCG-MAX delivers full threat protection at line speed, featuring:

• Stateful + Layer 7 Firewall

• IDS/IPS with 55,000+ CyberSecure signatures

• DPI & Traffic Identification

• Ad Blocking & Content Filtering

• VLAN & Subnet Segmentation

All while maintaining 2.3 Gbps throughput, even with security fully enabled.

Advanced VPN & SD-WAN Capabilities

Ideal for multi-site deployments, the UCG-MAX supports:

• License-Free SD-WAN

• Site-to-Site VPN

  • Site Magic

  • IPsec

  • OpenVPN

• Remote User VPN

  • WireGuard

  • Teleport

  • Identity Endpoint VPN

  • L2TP

• Policy-Based Routing (WAN & VPN)

Integrated NVR – Storage When You Need It

Unlike traditional gateways, the UCG-MAX offers optional NVMe SSD storage, allowing it to function as a UniFi Protect NVR:

• Up to 2 TB NVMe SSD

• Supports:

  • 15× HD cameras

  • 8× 2K cameras

  • 5× 4K cameras

Perfect for sites that want routing + security + video in one device.

High-Speed Networking & Multi-WAN

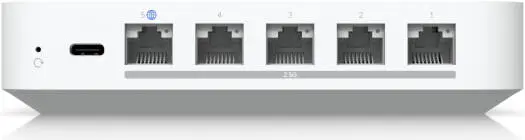

• (5) × 2.5GbE RJ45 ports

• Up to 4 WAN connections

• Multi-WAN Load Balancing & Failover

• UniFi LTE Backup support

• OSPF Dynamic Routing

• Advanced NAT (SNAT, DNAT, 1:1, Pooling)

Specifications Overview

Performance

• IDS/IPS Throughput: 2.3 Gbps

• Simultaneous Clients: 300+

• Managed UniFi Devices: 30+

Hardware

• CPU: Quad-Core ARM Cortex-A53 @ 1.5 GHz

• RAM: 3 GB

• Storage: Selectable NVMe SSD (Up to 2 TB)

• Power: USB-C (5V / 5A)

• Max Power Consumption: 16.1 W

• Display: 0.96” LCM Status Screen

Ports

• (5) × 2.5GbE RJ45

• Default WAN: (1) × 2.5GbE

• Max WAN Ports: 4

Environment

• Operating Temperature: -10 to 40°C

• Operating Humidity: 5–95% (Non-condensing)

• ESD/EMP Protection: ±8kV Air / ±4kV Contact

Certifications

• CE, FCC, IC, Anatel, SRRC

• NDAA Compliant
