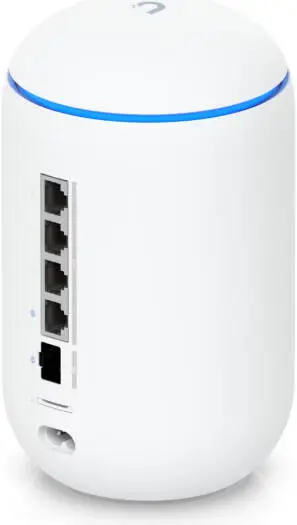

Ubiquiti Dream Router 7, Desktop 10G Cloud Gateway, Wi-Fi 7, Quad-core ARM® Cortex®-A53 at 1.5 GHz Processor, 1x 10G SFP+ & 1x 2.5 GbE RJ45 Ports, PoE Dream Router 7

Ubiquiti UniFi Dream Router 7 | Desktop 10G Cloud Gateway with Wi-Fi 7, PoE Switch & UniFi OS  UDR7

The Ubiquiti Dream Router 7 (UDR7) is a compact desktop 10G Cloud Gateway that combines Wi-Fi 7 performance, advanced security, PoE switching, and full UniFi application support in one elegant device.

Designed for homes, small businesses, studios, and modern offices, it delivers enterprise-grade routing, next-generation wireless speeds, and simplified UniFi management.

With support for 30+ UniFi devices, 300+ concurrent users, and 2.3 Gbps IDS/IPS throughput, the Dream Router 7 is the perfect all-in-one solution for high-speed, secure networks.

Key Features

• Integrated Wi-Fi 7 (802.11be) Access Point

• Desktop 10G Cloud Gateway

• Supports 30+ UniFi Devices & 300+ Clients

• 2.3 Gbps IDS/IPS Security Throughput

• Dual WAN Ready

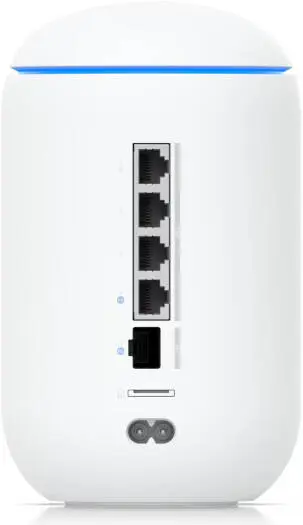

  • (1) × 10G SFP+ WAN

  • (1) × 2.5 GbE RJ45 WAN

• (3) × 2.5 GbE LAN Ports

  • Includes 1× PoE (15.4W)

• Built-in PoE Switch

• 64GB Pre-Installed microSD for UniFi Protect

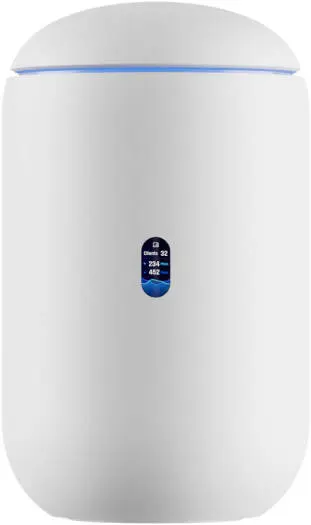

• 0.96” LCM Status Display

• Compact, Modern Desktop Design

• Full UniFi Application Suite Support

Next-Generation Wi-Fi 7 Performance

Enjoy blazing-fast wireless with tri-band Wi-Fi 7:

• 6 GHz: up to 5.7 Gbps

• 5 GHz: up to 4.3 Gbps

• 2.4 GHz: up to 688 Mbps

• 2×2 DL/UL MU-MIMO on all bands

• Supports Wi-Fi 6 / 6E / 7 devices

• Coverage up to 160 m² (1,750 ft²)

Ideal for high-density environments, 4K/8K streaming, gaming, and modern smart homes.

Enterprise-Grade Security Built-In

Despite its compact size, UDR7 delivers full UniFi security:

• Stateful Firewall

• Application-Aware Layer 7 Firewall

• IDS / IPS with 20,000+ signatures

• Deep Packet Inspection (DPI)

• Content Filtering & Ad Blocking

• VLAN & Subnet-Based Traffic Segmentation

• Guest Traffic Isolation

Advanced VPN & SD-WAN

Perfect for remote work and secure connectivity:

• License-Free SD-WAN

• Site-to-Site VPN (Site Magic)

• VPN Servers:

  • WireGuard

  • OpenVPN

  • L2TP

  • Teleport (Zero-Config VPN)

• VPN Clients: OpenVPN, WireGuard

• Policy-Based WAN & VPN Routing

• LTE Backup Support

Integrated UniFi Applications

The Dream Router 7 runs the full UniFi OS suite:

• UniFi Network

• UniFi Protect

• UniFi Access

• UniFi Talk

• UniFi Connect

Supports up to:

• 5 HD cameras

• 2× 2K cameras

• 1× 4K camera

Hardware Specifications

• Processor: Quad-core ARM Cortex-A53 @ 1.5 GHz

• Memory: 3 GB RAM

• Storage: 64GB pre-installed microSD (expandable)

• PoE Budget: 15.4W (1 PoE port)

• Max Power Consumption: 26W (excluding PoE)

• Power Supply: Internal 50W AC/DC

Physical & Environmental

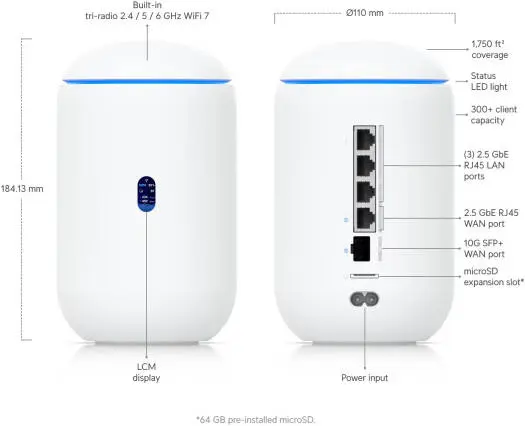

• Dimensions: Ø110 × 184.1 mm

• Weight: 1.1 kg

• Enclosure: Polycarbonate

• Operating Temp: -10°C to 40°C

• Humidity: 5–95% (Non-condensing)

• ESD Protection: ±8 kV Air / ±4 kV Contact

Management & Display

• UniFi Web & Mobile App

• Ethernet & Bluetooth Management

• 0.96” Status LCM Display

• Simple adoption & monitoring

Certifications

• CE

• FCC

• IC

• NDAA Compliant
