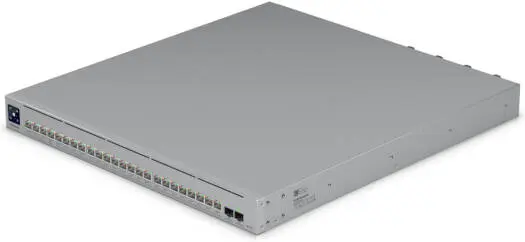

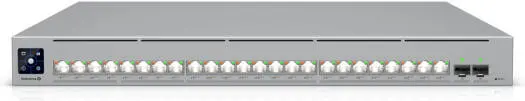

Ubiquiti Enterprise Campus 24 PoE+++ Layer 3 Switch | ECS-24-PoE-EU
Product Description
The Ubiquiti Enterprise Campus 24 PoE (ECS-24-PoE-EU) is a high-end Layer 3 campus switch engineered for mission-critical enterprise networks, data centers, and large-scale deployments. Designed with Etherlighting™ technology, ultra-high power PoE+++ (up to 90W per port), and massive switching capacity, it delivers unmatched performance, scalability, and reliability.
Featuring 24 PoE+++ ports (2.5GbE & 10GbE) alongside 25G SFP28 uplinks, this switch is built to power and aggregate Wi-Fi 6/6E/7 access points, IP cameras, VoIP systems, AV-over-IP, and edge devices—all while maintaining ultra-low latency and non-blocking throughput.
With 460 Gbps switching capacity, 342 Mpps forwarding rate, support for 1,000 VLANs, and advanced Layer 2 & Layer 3 features, the ECS-24-PoE-EU is ideal for campus networks, enterprise cores, smart buildings, and high-availability infrastructures. Dual hot-swappable power supplies and fans ensure maximum uptime, while the UniFi Network Controller provides centralized, intuitive management.
Specifications
Overview
| Category | Specification |
| Model | ECS-24-PoE-EU |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Dimensions | 442.4 × 43.7 × 496 mm |
| Weight | 9.46 kg (without brackets)
9.56 kg (with brackets) |
| Enclosure | SGCC Steel |
| Supported Rack Depth | 482.6 mm (19")
Post depth: 650–1000 mm |
Ports & Interfaces
| Category | Specification |
| 2.5 GbE RJ45 | 8 Ports (All PoE+++) |
| 10 GbE RJ45 | 16 Ports (All PoE+++) |
| 25G SFP28 | 2 Ports |
| Total PoE Ports | 24 (All PoE+++) |
| Etherlighting™ | Ethernet & SFP28 Supported |
PoE Power
| Category | Specification |
| PoE Standards | PoE / PoE+ / PoE++ / PoE+++ |
| PoE Power per Port | 15.4W / 30W / 60W / 90W |
| Max PoE Budget | Up to 2400W (including PoE) |
| Total PoE Availability | Shared Mode: up to 2250W
Redundant Mode: up to 1050W |
Power & Redundancy
| Category | Specification |
| Power Supplies | 2 × Hot-Swappable 600W AC/DC |
| Power Input | 2 × AC Inputs (100–240V, 50/60Hz) |
| Fans | 4 × Hot-Swappable |
| Redundancy | Full PSU & Fan Redundancy |
| Max Power (No PoE) | 150W |
Performance
| Category | Specification |
| Switching Capacity | 460 Gbps |
| Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| VLANs Supported | 1,000 |
| MAC Address Table | 128,000 |
| ARP Entries | 128,000 |
| IPv4 Routes | 256,000 |
| Packet Buffer | 8 MB |
Layer 3 Features
| Feature |
| DHCP Server & Relay |
| Inter-VLAN Routing |
| Static Routing |
Layer 2 Features
| Feature |
| LACP, STP, RSTP |
| QoS (DSCP), Pro AV Profiles |
| IGMP Snooping |
| 802.1X, DHCP Snooping |
| Rate Limiting, Storm Control |
| MAC Blocking, IP/MAC ACLs |
| Port Mirroring, Isolation |
| Jumbo Frames |
| LLDP-MED, Voice VLAN |
| Loop Protection |
Management & Monitoring
| Category | Specification |
| Management | UniFi Network 9.0.114+ |
| Display | 1.3" LCM Touchscreen |
| LEDs | Ethernet & System LEDs |
| Remote Access | UniFi Cloud & Local Controller |
Protection & Environment
| Category | Specification |
| ESD / EMP Protection | ±30kV (Air & Contact) |
| Operating Temperature | -5°C to 40°C |
| Operating Humidity | 10% – 90% RH (Non-condensing) |
Certifications & Compliance
| Category | Specification |
| Certifications | CE, FCC, IC |
| Compliance | NDAA Compliant |
