Product Description

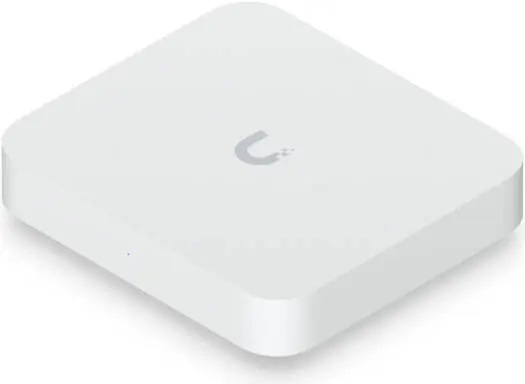

Ubiquiti Gateway Max (UXG-Max)
The Gateway Max (UXG-Max) from Ubiquiti is a compact, high-performance UniFi security gateway designed for small-to-medium networks that demand full 2.5 GbE throughput with advanced security enabled. Despite its small footprint, the UXG-Max delivers up to 1.5 Gbps routing with IDS/IPS, making it ideal for modern fiber connections, offices, retail branches, and advanced home networks.
Built to integrate seamlessly with the UniFi Network ecosystem, the Gateway Max offers enterprise-grade firewalling, deep traffic inspection, VPN support, and SD-WAN features—all in a silent, low-power desktop form factor.
Key Features
Up to 1.5 Gbps routing with IDS/IPS enabled
1× 2.5 GbE WAN port
4× 2.5 GbE LAN ports (1 port can be remapped to WAN)
Quad-core ARM Cortex-A53 (1.5 GHz) processor
Advanced UniFi security stack (Firewall, DPI, IPS/IDS)
License-free SD-WAN & VPN support
Ultra-compact, fanless design
Low power consumption (max 9.6W)
USB-C powered
Enterprise-Grade Security in a Compact Gateway
The UXG-Max provides full next-generation security, including:
Application-aware firewall rules
Signature-based IDS/IPS threat detection
Content, country, domain & ad filtering
VLAN & subnet-based traffic segmentation
Full stateful firewall
All security features run without subscriptions, delivering excellent price-to-performance value.
2.5 GbE Performance & Flexible WAN Configuration
With five 2.5 GbE ports, the Gateway Max is ready for:
High-speed fiber or cable internet
Multi-gig LAN switching without bottlenecks
Multi-WAN setups using a remappable LAN port
Future-proof network upgrades
Advanced Networking & VPN Features
License-free SD-WAN
WireGuard, OpenVPN, L2TP VPN servers
OpenVPN & IPsec site-to-site VPN
Policy-based WAN & VPN routing
IPv6 ISP support
Customizable DHCP server & relay
Designed for UniFi Ecosystem
The Gateway Max works seamlessly with UniFi access points, switches, and controllers, enabling:
WiFi QoS with UniFi APs
Application & device-based traffic identification
Internet quality and outage reporting
Centralized management via UniFi Network (Web & Mobile)
Technical Specifications
Hardware
Processor: Quad-core ARM® Cortex-A53 @ 1.5 GHz
Memory: 2 GB DDR4
Management: Ethernet, Bluetooth
Interfaces

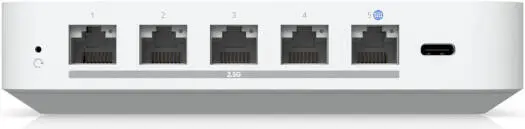

WAN: 1× 2.5 GbE RJ45
LAN: 4× 2.5 GbE RJ45 (1 remappable to WAN)
Performance
IDS/IPS Throughput: Up to 1.5 Gbps
Power
Power Method: USB Type-C (5V / 3A)
Max Power Consumption: 9.6W
Physical
Dimensions: 141.8 × 127.6 × 30 mm
Weight: 520 g
Enclosure: Polycarbonate
Impact Resistance: IK04
Environment
Operating Temperature: -10 to 40 °C
Operating Humidity: 5–95% non-condensing
Certifications
CE, FCC, IC
Software Requirement
UniFi Network: v8.1.113 or later
